Jacuzzi HD85000 - Specifications for 7236 and 7242

Technical Specifi cations Manual
Technical Specifi cations
www.jacuzzi.com Page 11
English
Fuzion™ Whirlpool Bath

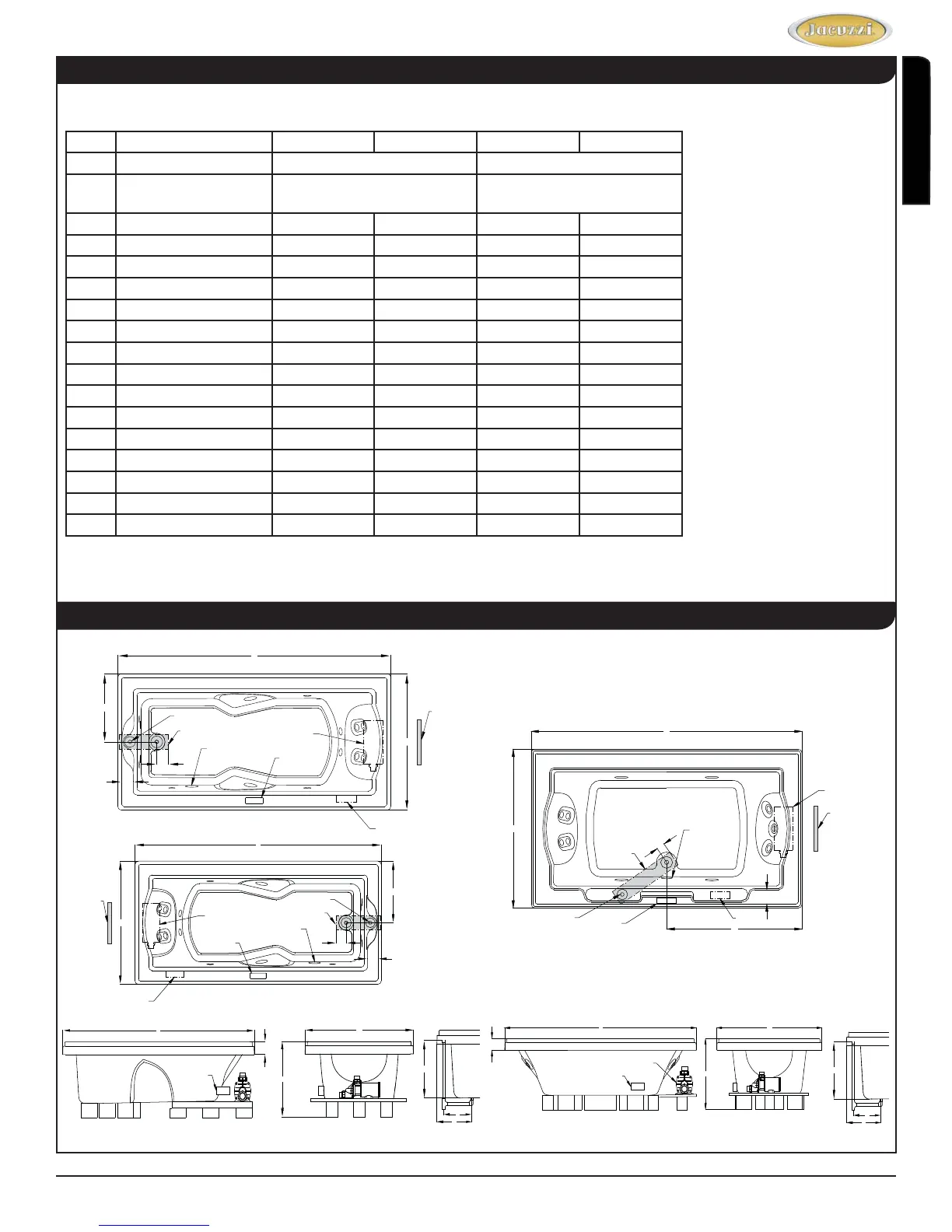

KEY DIMENSIONS
Specifi cations for 7236 and 7242
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
7236 7242
Letter Description English Metric English Metric
-
Drain/Motor Location End drain/Right or Left end motor Center drain/Right end motor
-
Cutout Template Provided P/N DD42000
69" x 33" Drop-In Cutout
Template Provided P/N GR23000
70" x 40" Drop-In Cutout
-
Total Weight 1210 lbs 550 kg 1324 lbs 602 kg
-
Floor Loading 69.6 lb/ft
2
340 kg/m
2
63 lb/ft
2
307 kg/m
2
-
Operating Gallons (Min/Max) 77G / 99G 291.5L / 375L 82G / 108G 310.4L / 409L
-
Product Weight 135 lbs 61 kg 174 lbs 79 kg
L
Outer Length 70¾" 1797mm 72" 1829mm
W
Outer Width 35½" 902mm 42" 1067mm
H**
Overall Height 24" 610mm 24" 610mm
A
Overfl ow Height 17" 432mm 17" 432mm
B
Long Edge to Drain Center 10¼" 260mm 10¼" 260mm
C
Short Edge to Drain Center 17 " 447mm 36" 914mm
D
Drain Shoe Length 7" 178mm 8½" 216mm
E**
Deck Height 4" 102mm 4" 102mm
F
Deck Width 3" 76mm 3½" 89mm
G
Service Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
I
Floor Cutout for Drain 12" x 4" 305mm x 102mm 18½" x 4" 470mm x 102mm
/ 16
11
Drain/Overfl ow
A
D
B
A
D
B
Fuzion 7242
Fuzion LH 7236
Fuzion RH 7236
Overfl ow
Suction Fitting
(G) Service
Access
(G) Service
Access
Heater
C
Motor
Control
Panel
L
W
3"
I
F
Motor
Suction Fitting
L
W
C
F
3"
I
Overfl ow
Control
Panel
Heater
End ViewSide View
Overfl ow
Control
Panel
Heater
C
F
W
L
I
3"
Suction
Fitting
Motor
(G) Service
Access
L
(Motor)
(Heater)
(Motor)
W
H**
End View
Drain/Overfl owSide View
E
H**
W
(Motor)
(Heater)
(Motor)
(Motor)
L
E
**Height of tub only, optional wood frame adds 1.25"
Fuzion LH 7236
Note: Drain included.
Non-standard installation,
refer to manual.
