Duetta™ Whirlpool Bath

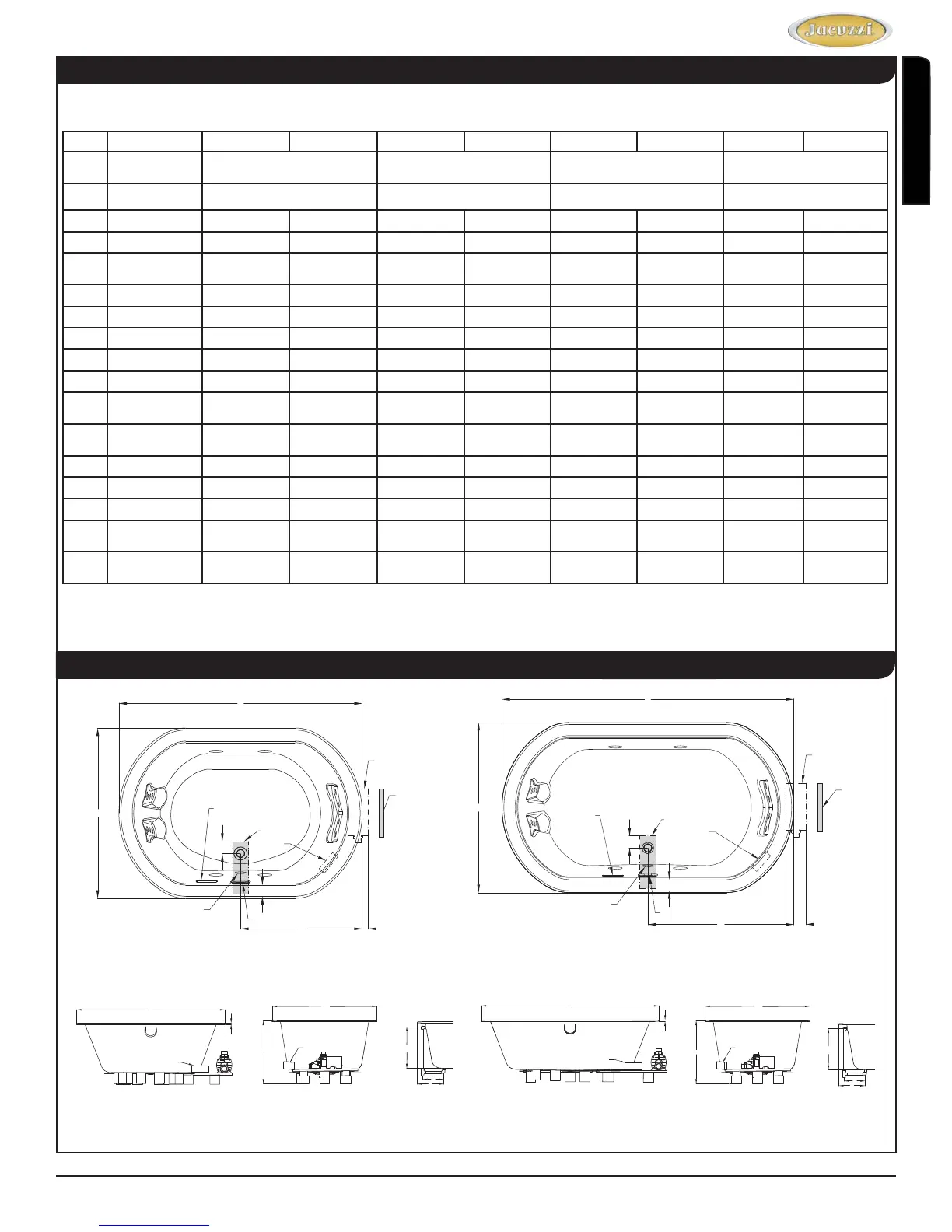

KEY DIMENSIONS
Specifi cations for 6042, 6636, 6642 and 7242
Letter Description English Metric English Metric English Metric English Metric
-
Drain/Motor
Location
Center drain/Right end motor Center drain/Right end motor Center drain/Right end motor Center drain/Right end motor
-
Cutout Template Template Provided P/N DA09000 Template Provided P/N DA08000 Template Provided P/N DA07000 Template Provided P/N DA06000
-
Total Weight 1077 lbs 490 kg 1044 lbs 475 kg 1195 lbs 543 kg 1293 lbs 588 kg
-
Floor Loading 61.6 lb/ft
2
301 kg/m
2
63.3 lb/ft
2
309 kg/m
2
62.1 lb/ft
2
303 kg/m
2
61.6 lb/ft
2
301 kg/m
2
-
Operating Gallons
(Min/Max)
70G / 83G 265L / 314L 75G / 79G 283.9L / 299L 90G / 97G 340.7L / 367L 97G / 108G 367.2L / 409L
-
Product Weight 136 lbs 62 kg 136 lbs 62 kg 137 lbs 62 kg 143 lbs 65 kg
L
Outer Length 60" 1524mm 66" 1676mm 66" 1829mm 72" 1829mm
W
Outer Width 42" 1067mm 36" 915mm 42" 1067mm 42" 1067mm
H
Overall Height 26" 660mm 26" 660mm 26" 660mm 26" 660mm
A
Overfl ow Height 18⅜" 467mm 18⅜" 467mm 18⅜" 467mm 18⅜" 467mm
B
Long Edge to
Drain Center
11" 279mm 11" 279mm 11" 279mm 11" 279mm
C
Short Edge to
Drain Center
30" 762mm 33" 838mm 33" 838mm 36" 915mm
D
Drain Shoe Length 7¼" 183mm 7¼" 183mm 7¼" 183mm 7¼" 183mm
E
Deck Height ½" 13mm ½" 13mm ½" 13mm ½" 13mm
F
Deck Width 3⅞" 98mm 3⅞" 98mm 3⅞" 98mm 3⅞" 98mm
G
Service Access
Dimensions
12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
I
Floor Cutout for
Drain
13" x 4" 330mm x 102mm 13" x 4" 330mm x 102mm 13" x 4" 330mm x 102mm 13" x 4" 330mm x 102mm
6042 6636 72426642
Heater
Suction Fitting
Control
Panel
3"
I
F
(G) Service
Access
Motor
(G) Service
Access
Motor
Heater
Overfl ow
F
I
3"
Suction Fitting
Control
Panel
Side View End View Drain/Overfl ow Side View End View Drain/Overfl ow
(Heater)
(Motor)
(Motor)
(Heater)
(Motor)
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Overfl ow
C
W
L
C
W
L
L
E
W
H
A
D
B
L
E
A
D
B
Motor Extends
3" Beyond Lip
Motor Extends
3" Beyond Lip
(Heater)
(Motor)
W
H
(Heater)
Duetta 6042 & 6642
Duetta 6636 & 7242
Note: Drain installation
is non-standard. Vertical
overfl ow connection
requires offset.
