Jacuzzi HD85000 - Specifications for 7260

Technical Specifi cations Manual
Technical Specifi cations
www.jacuzzi.com Page 13
English
Fuzion™ Whirlpool Bath

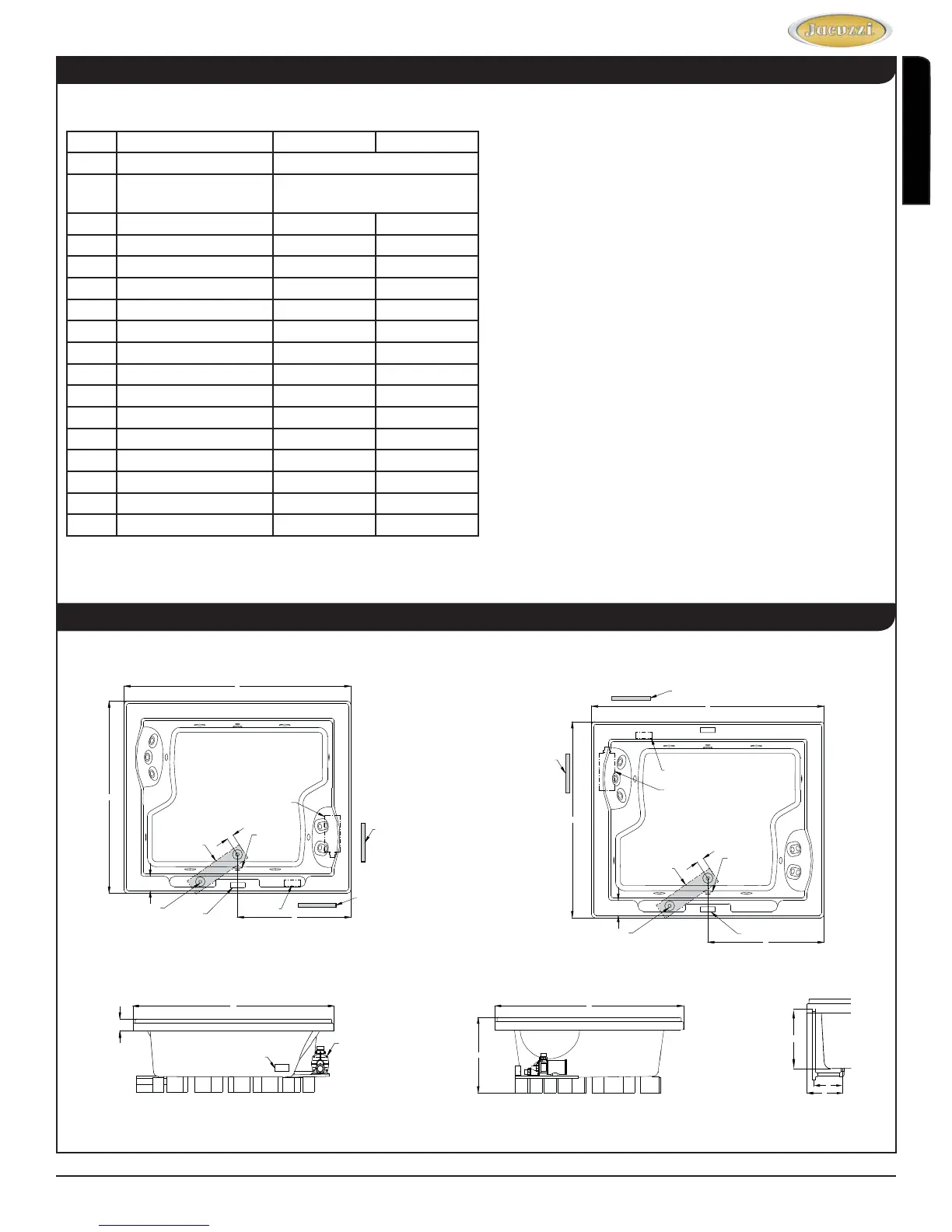

KEY DIMENSIONS
Specifi cations for 7260
Letter Description English Metric
-
Drain/Motor Location Center drain/Right or left side motor
-
Cutout Template Provided P/N DD44000
70" x 58" Drop-In Cutout
-
Total Weight 1790 lbs 811 kg
-
Floor Loading 60.1 lb/ft
2
293 kg/m
2
-
Operating Gallons (Min/Max) 110G/ 148G 417L / 560L
-
Product Weight 207 lbs 94 kg
L
Outer Length 71¾" 1822mm
W
Outer Width 59¾" 1518mm
H**
Overall Height 24" 610mm
A
Overfl ow Height 16¾" 425mm
B
Long Edge to Drain Center 12 " 306mm
C
Short Edge to Drain Center 36" 915mm
D
Drain Shoe Length 8½" 216mm
E**
Deck Height 4" 102mm
F
Deck Width 3½" 89mm
G
Service Access Dimensions 12" x 18" 305mm x 457mm
I
Floor Cutout for Drain 18½" x 4" 470mm x 102mm
7260
Side View Drain/Overfl ow
/ 16
1
End View
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Fuzion RH 7260
(Motor)
(Heater)
H**
W
(Heater)
(Motor)
L
E
A
D
B
Fuzion LH 7260
L
W
F
3"
I
C
Control
Panel
Overfl ow
Heater
(G) Secondary
Service Access
(G) Primary
Service Access
Suction
Fitting
Motor
(G) Primary
Service Access
(G) Secondary
Service Access
Heater
Motor
Suction
Fitting
Overfl ow
F
W
L
C
Control Panel
**Height of tub only, optional wood frame adds 1.25"
Fuzion RH 7260
3"
I
Note: Drain included.
Non-standard installation,
refer to manual.
