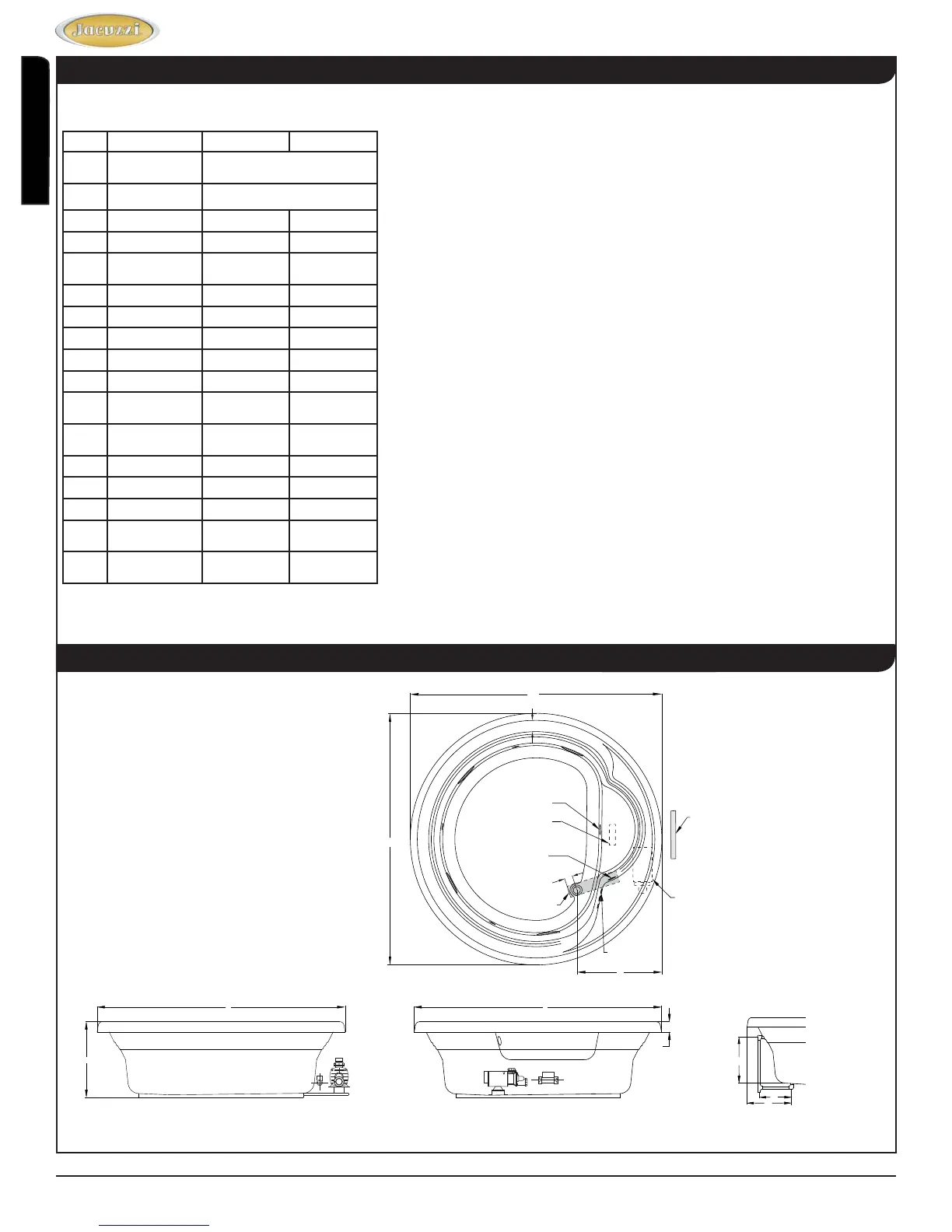

Technical Specifi cations Manual
Page 8
www.jacuzzi.com Technical Specifi cations
English
Cortina™ Whirlpool Bath
KEY DIMENSIONS
Specifi cations for 7272
Letter Description English Metric
-
Drain/Motor
Location
Center drain/Right motor
-
Cutout 70" Dia. Drop-In Cutout
-
Total Weight 1485 lbs 674 kg
-
Floor Loading 41.2 lb/ft
2
201.1 kg/m
2
-
Operating Gallons
(Min/Max)
87G / 117G 329L / 443L
-
Product Weight 210 lbs 95 kg
L
Outer Length 72" 1829mm
W
Outer Width 72" 1829mm
H
Overall Height 22¼" 565mm
A
Overfl ow Height 16¾" 425mm
B
Long Edge to
Drain Center
19¼" 489mm
C
Short Edge to
Drain Center
24½" 622mm
D
Drain Shoe Length 5" 127mm
E
Deck Height 2½" 64mm
F
Deck Width 6½" 165mm
G
Service Access
Dimensions
12" x 18" 305mm x 457mm
I
Floor Cutout for
Drain
14" x 4" 356mm x 102mm
7272
Side View End View Drain/Overfl ow
(Motor)
(Heater)
(Motor)
(Heater)
Heater
Overfl ow
(G) Service
Access
Motor
3"
I
Control
Panel
F
Suction
Fitting
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
C
W
L
L
H
E
L
A
D
B
