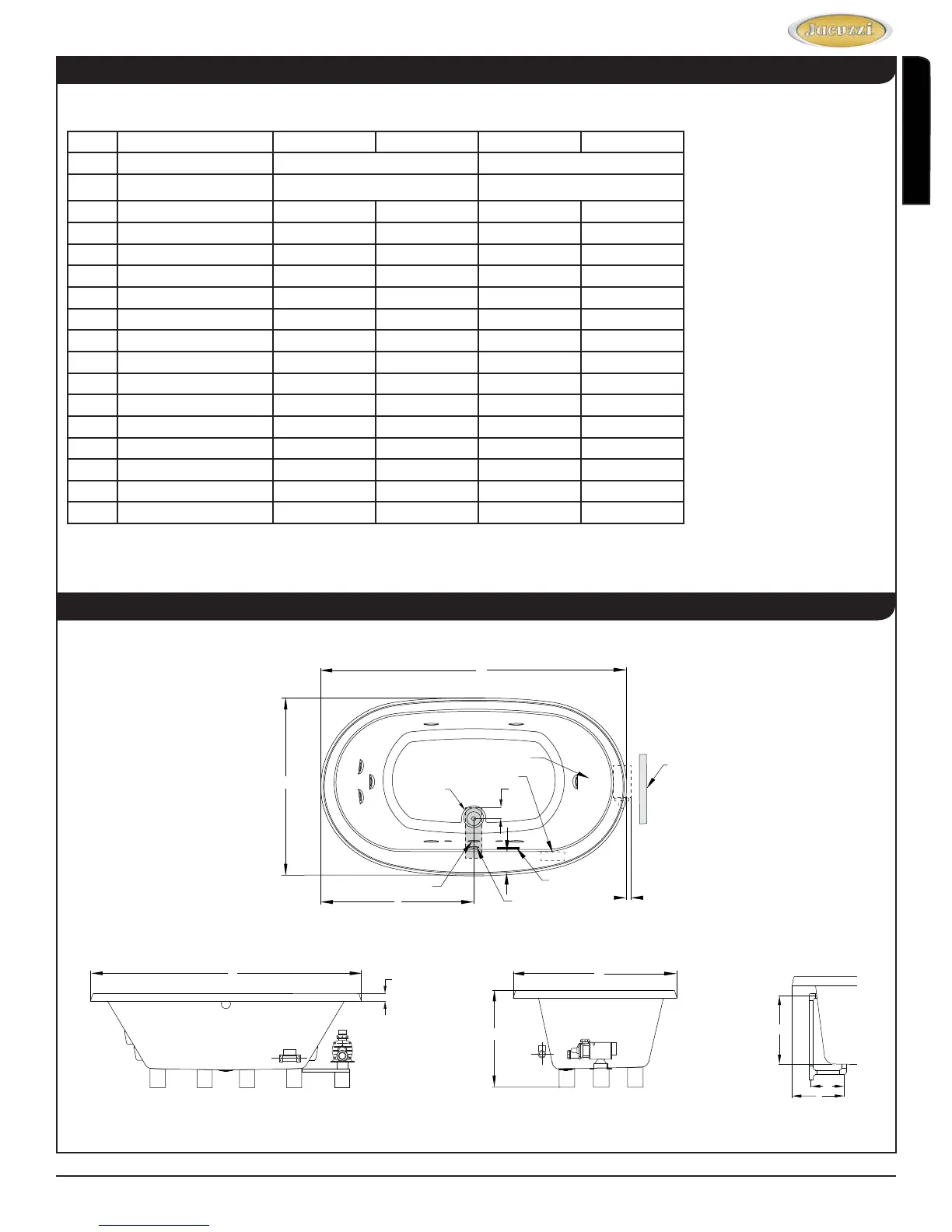

Technical Specifi cations Manual
Technical Specifi cations
www.jacuzzi.com Page 15
English
Mio™ Whirlpool Bath
KEY DIMENSIONS
Specifi cations for 6636 and 7242
Letter Description English Metric English Metric
-
Drain/Motor Location Center drain/Right end motor Center drain/Right end motor
-
Cutout Template Template Provided P/N HQ96000 Template Provided P/N HR36000
-
Total Weight 961 lbs 436 kg 1125 lbs 511 kg
-
Floor Loading 58.2 lb/ft
2
284 kg/m
2
53.6 lb/ft
2
261.5 kg/m
2
-
Operating Gallons (Min/Max) 48G/ 70G 181.7L / 265L 54G/ 87G 204L/ 329L
-
Product Weight 128 lbs 58 kg 150 lbs 68 kg
L
Outer Length 66" 1676mm 72" 1829mm
W
Outer Width 36" 915mm 42" 1067mm
H
Overall Height 25" 635mm 25" 635mm
A
Overfl ow Height 17⅞" 454mm 17⅞" 454mm
B
Long Edge to Drain Center 13 " 340mm 13 " 340mm
C
Short Edge to Drain Center 33" 838mm 36" 915mm
D
Drain Shoe Length 6⅞" 173mm 6⅞" 173mm
E
Deck Height 2" 51mm 2" 51mm
F
Deck Width 6⅝" 168mm 6⅝" 168mm
G
Service Access Dimensions 12" x 18" 305mm x 457mm 12" x 18" 305mm x 457mm
I
Floor Cutout for Drain 12" x 4" 305mm x 102mm 12" x 4" 305mm x 102mm
7242
6636
Side View Drain/Overfl ow
/
16
7
/
16
7
End View
(Motor)
(Heater)
(Motor)
Overfl ow
Control Panel
Motor
(G) Service
Access
Heater
I
3"
Suction Fitting
F
Electrical Specifi cations Each component requires a seperate, dedicated GFCI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
L
C
W
E
L
W
H
A
D
B
Motor Extends
3" Beyond Lip
Note: Drain installation
is non-standard. Vertical
overfl ow connection
requires offset.
