32
dip switch 6 AUX contact (OFF = heating mode: heater, Jacuzzi®
EcoHeat heat exchanger or heat pump; ON = cool-
ing mode: for Jacuzzi® Cool Power heat pump).
dip switch 7 Flow switch (check that it is in the OFF position).
dip switch 8 Flow detection (verify that it is in OFF position).
SWITCHING BENCH "b2"
dip switch 1 Level (make sure it is in the ON position).
dip switch 2 This switch disables the ltration pump in relation
to the level sensor (it must be set to ON).
dip switch 3 Level sensor (check that it is in the OFF position).
dip switch 4 Temperature probe (check that it is in the OFF po-
sition).
- To ensure the degree of protection against water as required by
standards, a cable clamp has been installed to make connection
the electrical system easier.
- When installation is complete, the cable clamp and the cover of
the box must be hermetically closed.
■ Model can be used witH Jacuzzi® Heat puMp (eco-Heat/
c
oolpower): Please see the relevant manual for information
on connecting to the hot tub.
JACUZZI EUROPE S.p.A. denies all responsibility:
If installation is carried out by personnel unqualied and/or unau-
thorised to certify the work carried out.
If current norms and legal provisions regarding the electric systems
of buildings in the country in which installation is carried out are
not complied with.
If the instructions for installation and maintenance contained in
this manual are not followed.
If unsuitable and/or uncertied materials are used for installation.
If the hot tubs are not installed in compliance with the above provisions.
If incorrect operations are performed that reduce the level of protection
of the electrical equipment against water jets, modify the protection
against electrocution due to direct or indirect contact, or produce ab-
normal conditions of insulation, current leakage or overheating.
If any components or parts of the appliance are altered in relation
to the original state when supplied, releasing the Manufacturer
from any liability.
If the appliance is repaired by unauthorised personnel or if spare
parts are used other than the original ones supplied by Jacuzzi Eu-
rope S.p.A.
Limitation of electricity consumption
If you do not have enough electricity and decide to turn the con-
sumption limiter on, you must congure the system software as in-
dicated (refer to the wiring diagrams to identify the type of electrical
box on board the hot tub).

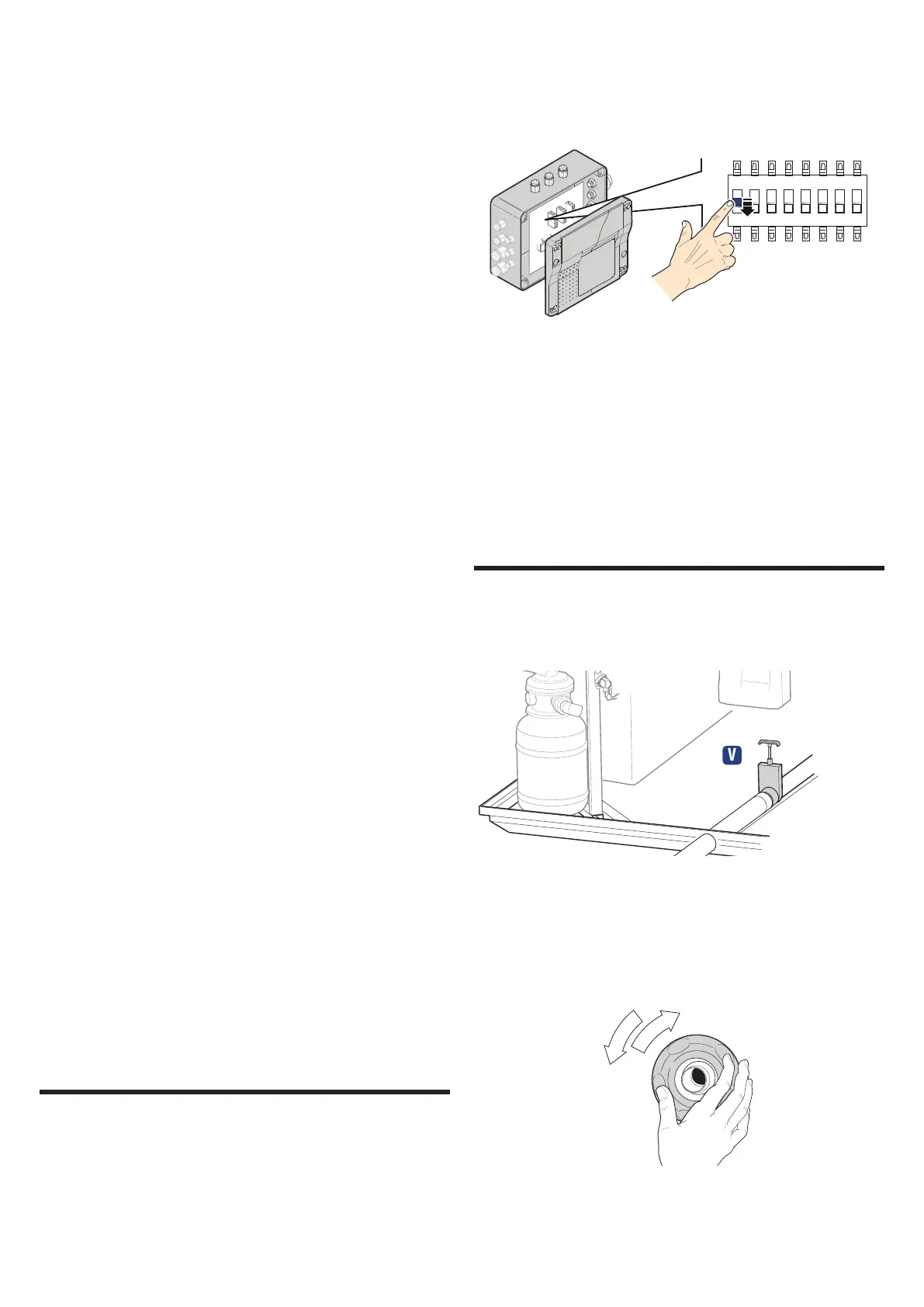

Make sure the spa is disconnected from the power supply line.
Remove the cover of the electrical box and set the switch
("dip-switch") n ° 1 to the OFF position.
1 2 3 4 5 6 7 8
ON
In this position, the electrical absorption is limited to 16 A (refer
to the notes at the end of the chapter for further details).
NOTES
- When dipswitch 1 is set to OFF, the electrical consumption of the
hot tub is limited to 16A; in these conditions, when you activate the
hydromassage pump, the electrical heater switches o).
- When dipswitch 1 is set to ON, the maximum electrical consump-
tion is selected.
Check of operation
First start-up
Check that the drainage valve (V) on the base is closed.
Note: A valve can also be installed near the drain pit and used in-
stead of the valve (V) (always leave it open); this means you do not
have to remove the panel on the technical compartment every time
(please see the pre-installation information).
Check that all the hydromassage intakes are open.
