ADwin-Pro module with USB interface
ADwin
Device No.

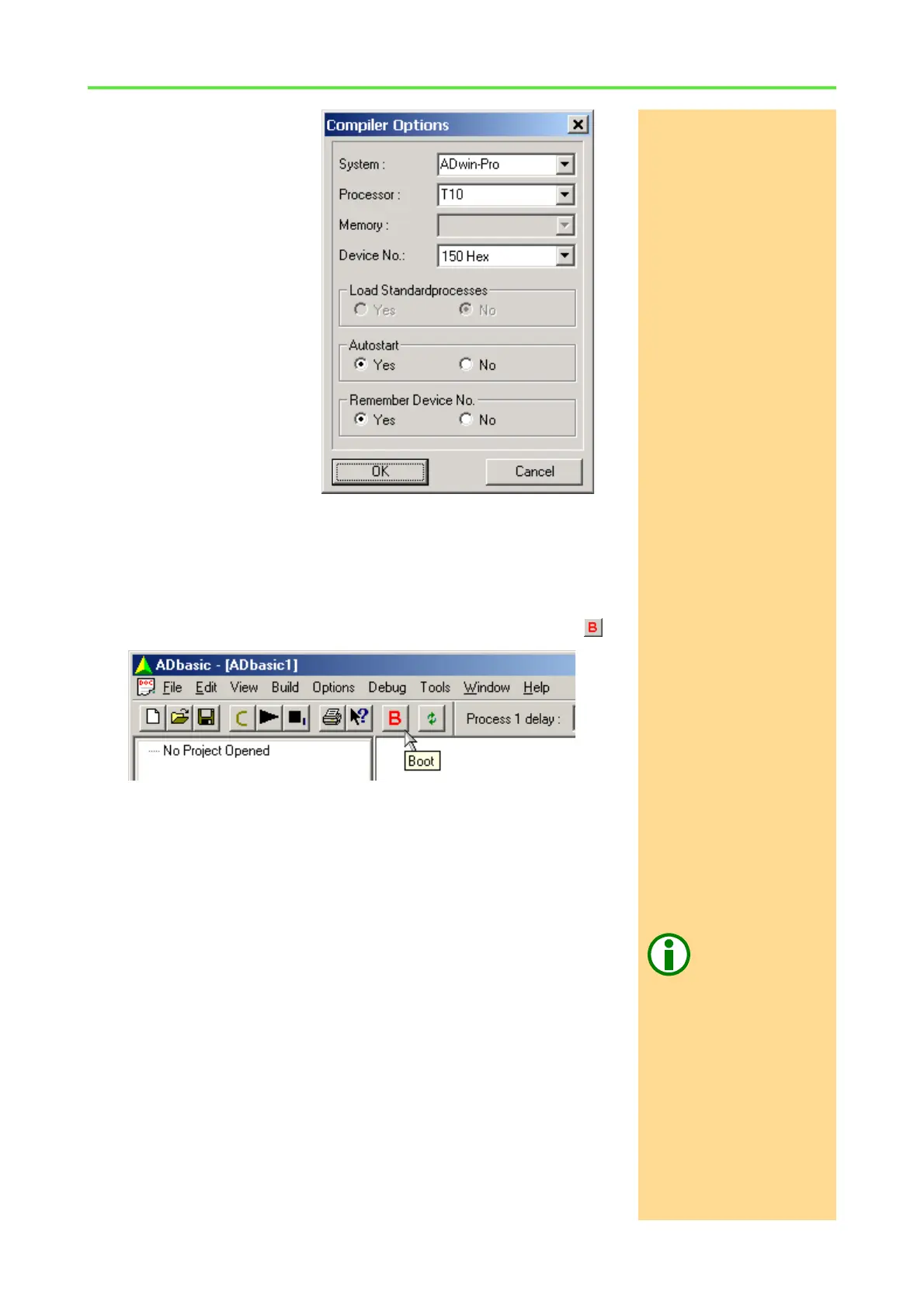

– System: Choose the option
"ADwin-Pro".
– Processor: The processor
type of the ADwin-Pro sys-
tem.
– Memory: This option is only
available for ADwin-Pro sys-
tems with a processor
T4…T8.
Set the memory size of your
ADwin system.
– Device No.: Set to the
Device No. you have used in
the programm ADconfig.
The setting "None" in the
pull-down list is only neces-
sary in order to compile AD-
basic programs for test
purposes, when no ADwin
system is connected.
– Set the options "Load Standardprocesses", "Autostart" and
"Remember Device No." later, when working with ADbasic.
Confirm with "OK" in order to return to ADbasic. The driver installation and the
main settings in ADbasic are now finished.
BootingStart ADbasic and boot the ADwin system by clicking on the boot button .
The blinking of the green LED on the CPU module as well as the display in
the status line: "ADwin is booted" shows that the operating system has been
loaded properly and that ADbasic can access the ADwin system (if not, first
check the connections).
Finishing the installationFor the further installation please keep to the order of installation instructions
in chapter 2 of this manual:
– For the details about the initialization of your ADwin system, please see
your hardware manual.
Programming with
ADbasic
– The programming of your ADwin system is described in detail in the
ADbasic manual.
– Start programming with the examples in the ADbasic
tutorial.
ADwin-Pro programming– The software instructions developed especially for ADwin-Pro systems
can be found in the manual "ADwin-Pro system specifications - Pro-
gramming in ADbasic".
