- 15 -
G31 Series User's Manual
Pin Pin Assignment Pin Pin Assignment
1 VCC 2 VCC
3 Data 0- 4 Data 0-
5 Data 0+ 6 Data 0+
7 Ground 8 Ground
9 No Pin 10 NC
HD Audio:
Pin No. Denition
1 MIC2_L
2 AGND
3 MIC2_R
4 NC
5 OUT_R
6 MIC2_JD
7 SENSE
8 No Pin
9 OUT_L
10 OUT_JD

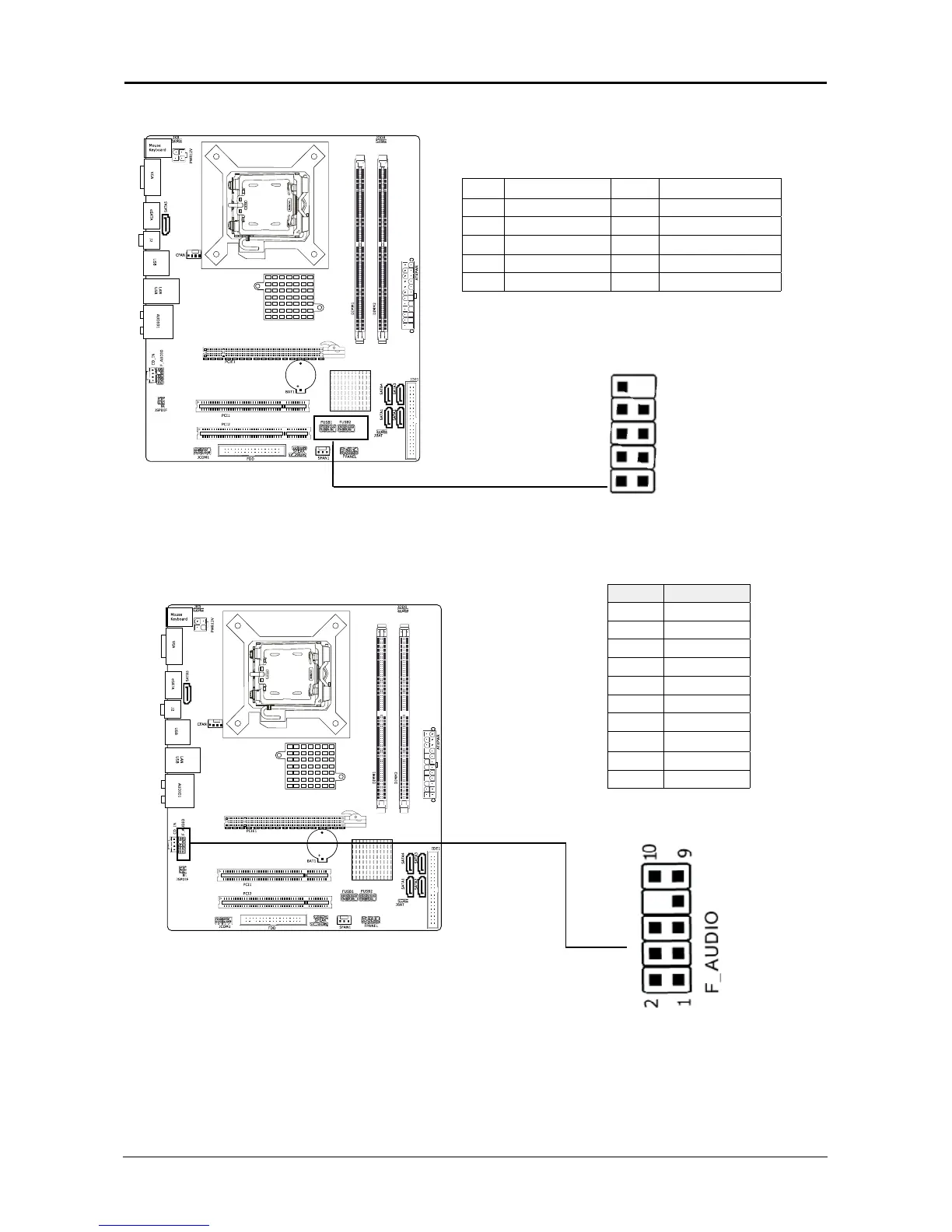

3.6 Additional USB Port Headers
3.7 Front Panel Audio Connection Header
FUSB
1 F
U
SB2
,
1
2
9
10
