- 16 -

G31 Series User's Manual

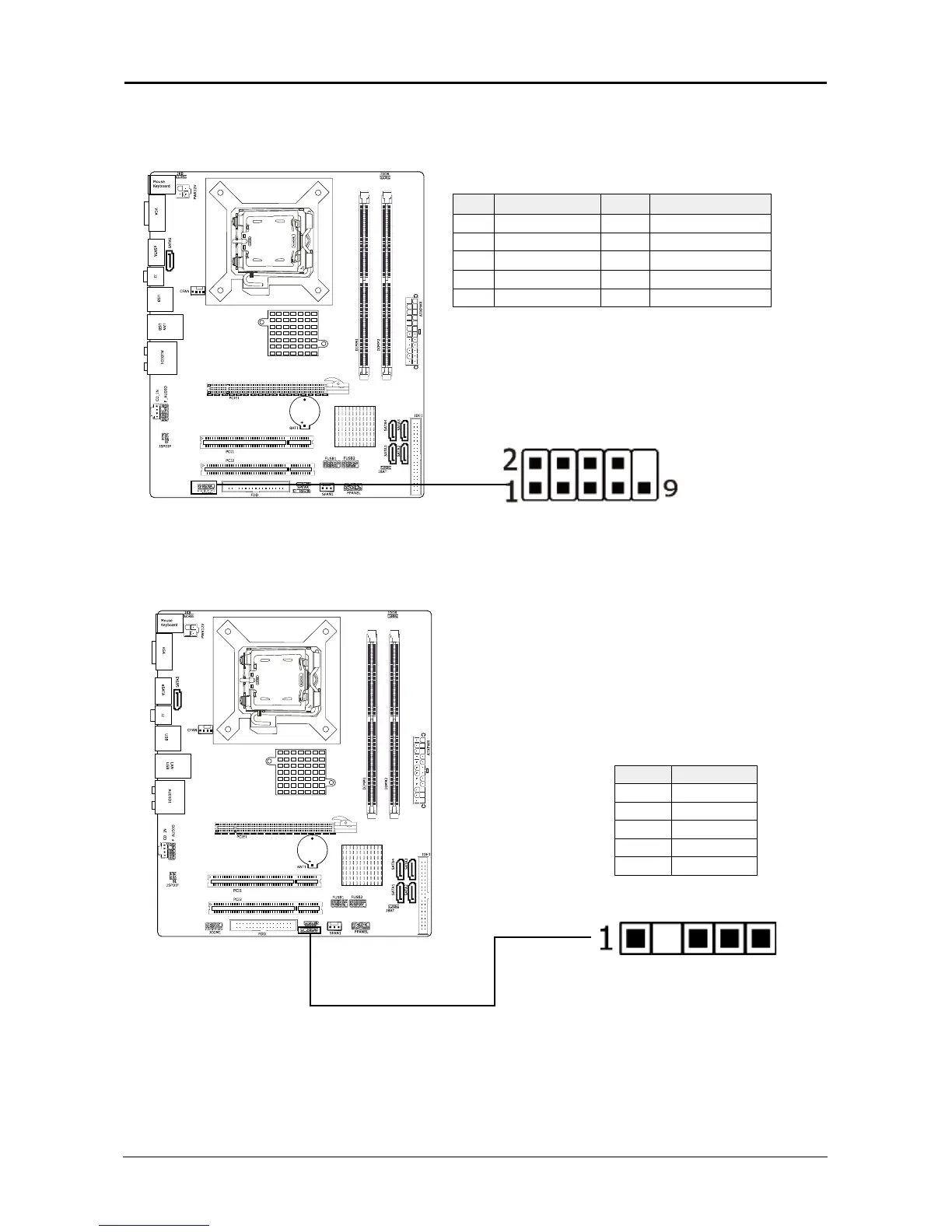

3.8 Serial Port Header

This JCOM1 header supports a serial port module.

Pin Pin Assignment Pin Pin Assignment

1 DCD 2 RXD

3 TXD 4 DTR

5 GND 6 DSR

7 RTS 8 CTS

9 RI

3.9 IR Connection Header

Connect the IrDA cable (if available) to this IR connector.

Pin No. Denition

1 VCC

2 NC

3 IRRX

4 GND

5 IRTX
