G31 Series User's Manual

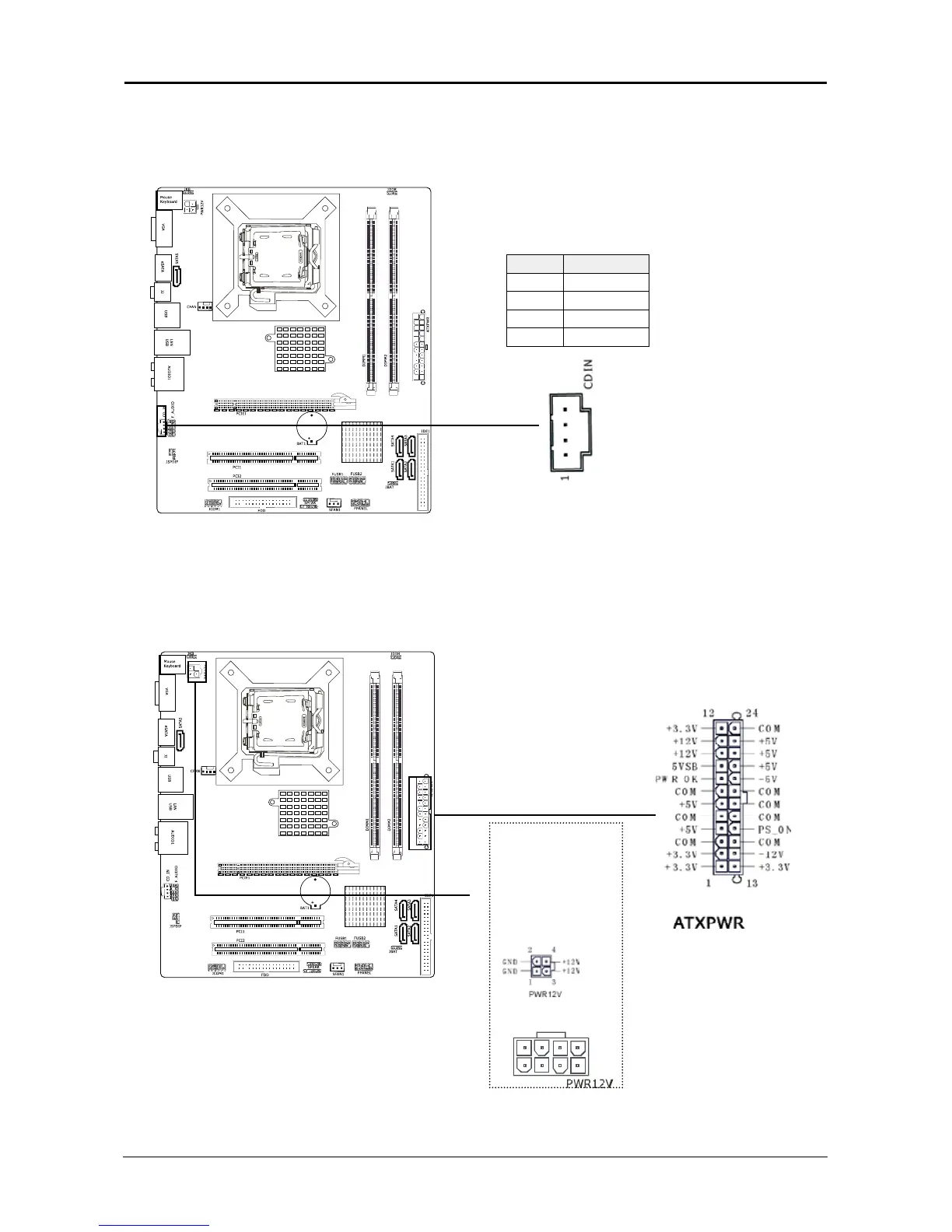

3.10 Internal Audio Connectors

Connect CD-ROM or DVD-ROM audio out to the connector.

3.11 ATX Power Input Connectors

This mainboard provides two power connectors to connect power supplier.

Pin No. Denition

1 CD-L

2 GND

3 GND

4 CD-R

There are two ATX 12V

connectors according

to different Model,

one is 4Pin,another

is 8pin , fo l l o w i n

p i c t u r e s a r e f o r

reference.

1.ATX 4Pin

2.ATX 8Pin
