pH 7.2-7.6
ORP 60 0-800 mV
Heater
Check Valve
Pump
pH
ORP
Flow Cell
From Pool
Filter
*NOTE:
Mount power supply transformer 1ft (30 cm)
above ground surface.
*See Note
Typical Installation
NOTE: All chemical must be injected downstream
from the heater and flowcell.
GFCI-protected
Watertight Outdoor
Outlet
Pool Return
AquaPure Cell
D
o
N
o
t
C
a
p

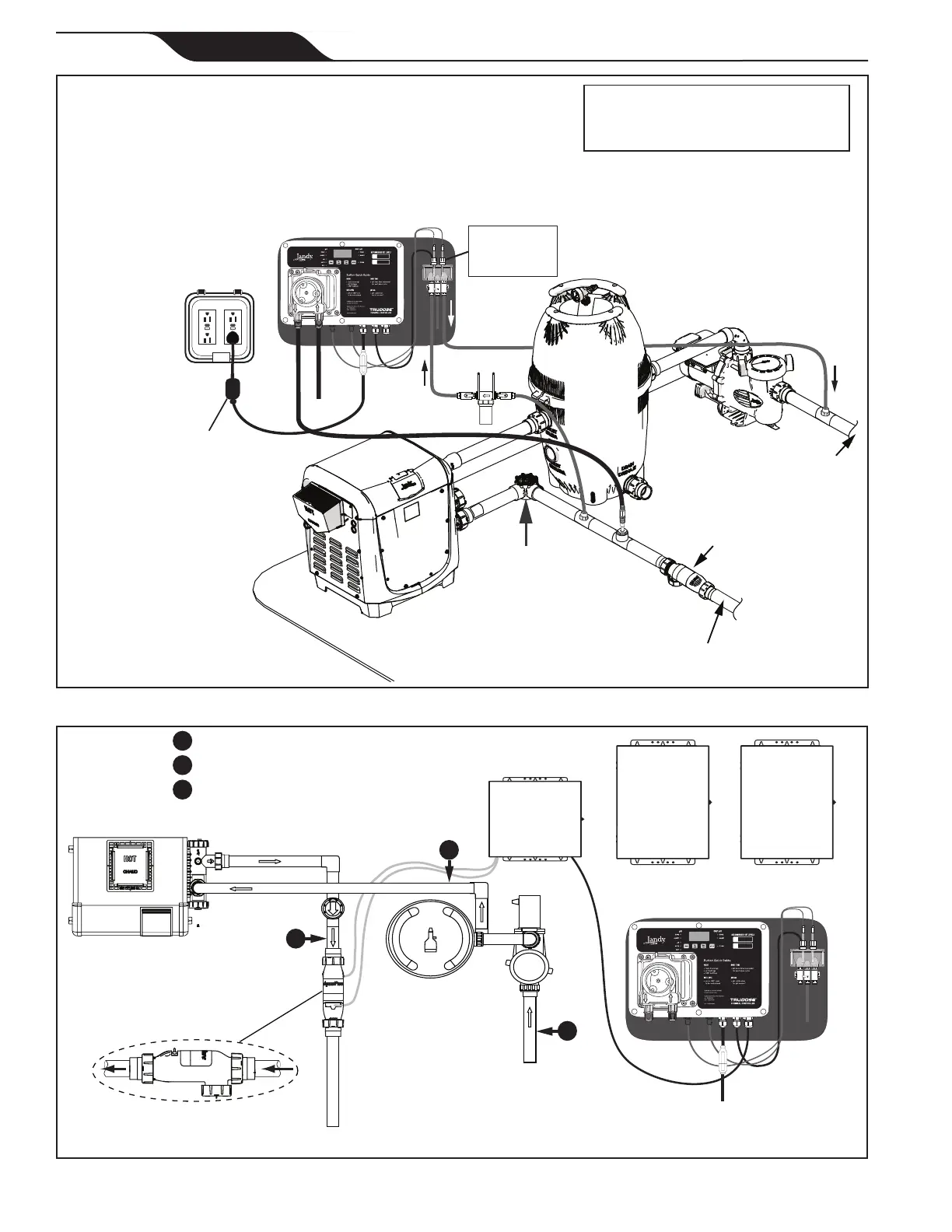

Figure 1. Typical hydraulic installation of a TruDose Chemical Controller
Pump
Filter
PureLink
Power Center
TruClear
®
XL
Cell with
Flow/Temp/Salinity Sensor
Heater
Pool Intake
Pool Return
AquaPure®
Control
Center
OR OR
pH 7.2-7.6
ORP 600-800 mV
TruDose Controller
Flow Cell
1
2
3
1
2
3
Water sample to the Flow Cell
Water return from the Flow Cell
Acid introduction
Figure 2. Flow Cell Connection - Top View
