Cartridge Pool Filters - CL and CV Series Filters

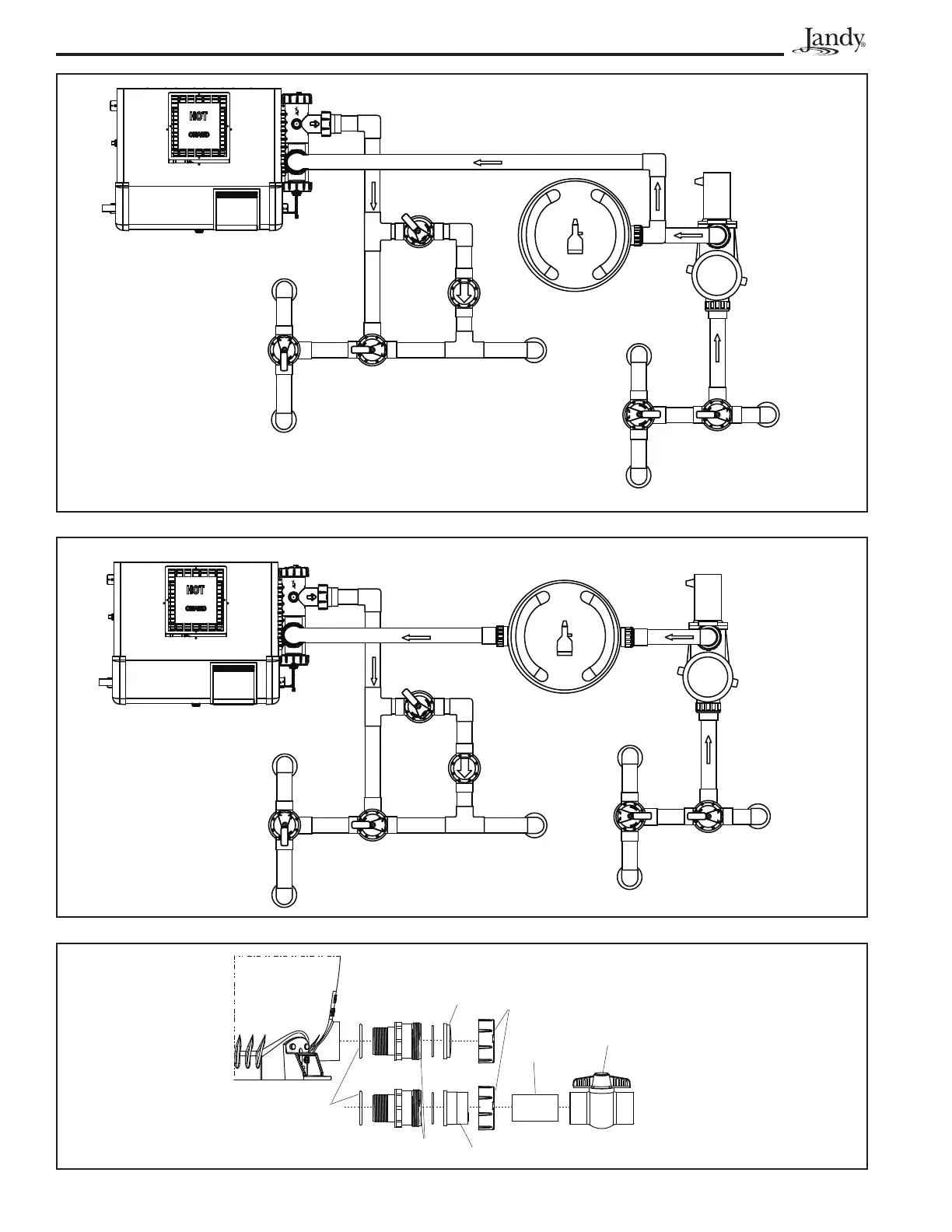

Figure 5. CL Cartridge Filter Plumbing for Pool/Spa Combination
Jandy Heater
Waterfall
Pool Return
Spa Make Up
Spa Return
From Pool Skimmer
From Pool
Drain
Spa Suction
Jandy Pump
Jandy
Check
Valve
From Outlet Port
To Inlet Port
Jandy Filter
Figure 5A. CV Cartridge Filter Plumbing for Pool/Spa Combination
Jandy Heater
Waterfall
Pool Return
Spa Make Up
Spa Return
From Pool Skimmer
From Pool
Drain
Spa Suction
Jandy Pump
Jandy
Check
Valve
Outlet Port
Inlet Port
Jandy Filter
)LJXUH -DQG\&/DQG&96HULHV&DUWULGJH)LOWHU'UDLQ&RQ¿JXUDWLRQV
CL/CV Filter
Tank Bottom
2" Ball
Valve
2" Pipe
Nut
Cap
O-ring
Alt Universal Union
for Plumbing
Bulkhead
OR
