Page 20 = Peak value = Minimum value = Supply
Usage as pulse output
If real energy is assigned to output K1 or reactive energy to K2, the
respective output energys as a pulse output. For each pulse output, a
pulse valency can be defined (Wh/pulse, VArh/pulse). The pulses,
sampled within one second, are given out with a minimum duration
of 50ms and a maximum frequency of 10Hz. The pulse distances are
not proportional to the power.
If the measured energy exceeds the set pulse valency, so that the
maximum frequency for the pulse output is exceeded, the remaining
pulses are stored and given out later. Saved pulses get lost in case of
a net breakdown.
Attention!
As the real energy meter operates with reverse running stop, there
will only be pulses given out, when electrical energy is consumed.
As the reactive power meter operates with reverse running stop, there
will only be pulses given out at inductive load.
Output K2
Programming as pulse output
In programming mode scroll to output K1 or k2 with key 2. Confirm
selection with key 1.
The first number of the pulse valency flashes and can be changed
with k
ey 2. Confirming with key 1, the next cipher is selected and
flashing.
If the whole number is flashing, the decimal point can be moved by
using key 2.
If no cipher is flashing anymore, you can change over to the next
programming menu using key 2.
PRG
VArh
L1
L2
L3
K2

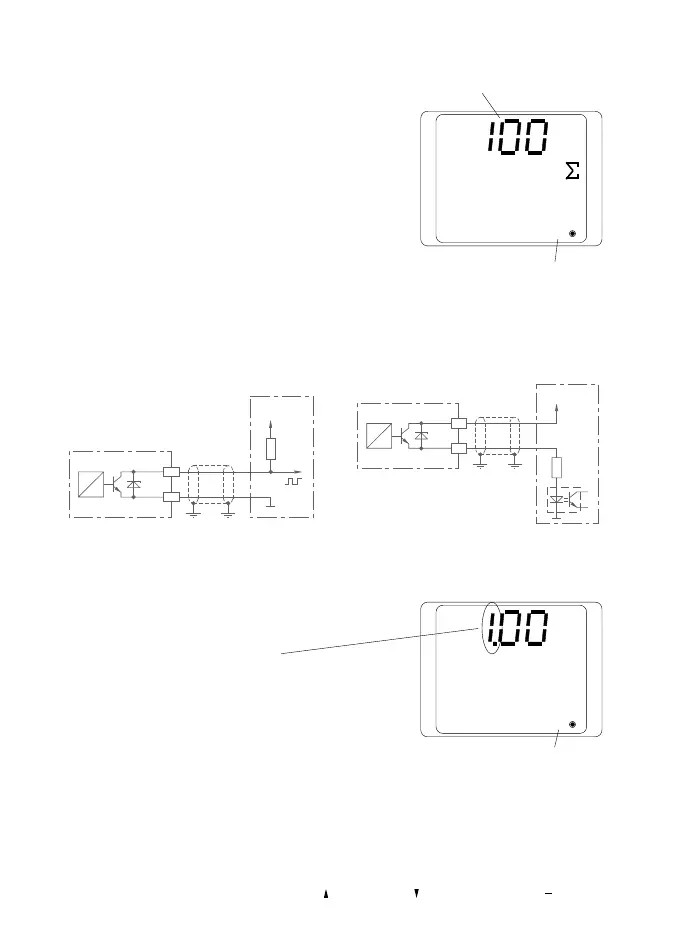

Diagr.: Usage as pulse output.
Pulse valency=100VArh/pulse
Output K2
Diagr. Usage as pulse output for optic coupling.
PRG
VArh
L1
L2
L3
K2
11
12
+24V
1,5k
30V
10210280
11
12
30V
10210130
+24V
1,5k
UMG96
UMG96
