Page 22 = Peak value = Minimum value = Supply
Minimum pulse width
If one of the outputs K1 or K2 is used as pulse output, a
programmable minimum pulse width is assigned. The minimum pul-
se width cannot be set separately for the outputs K1 and K2, but is
valid for both pulse outputs.
The minimum pulse width can be set in the range of 0.05 seconds up
to 2.00 seconds in 0.05 second steps. The presetting of minimum
pulse width is set to 0.05 seconds.
PRG
MkWh
MkVArh
L1
L2
L3
S

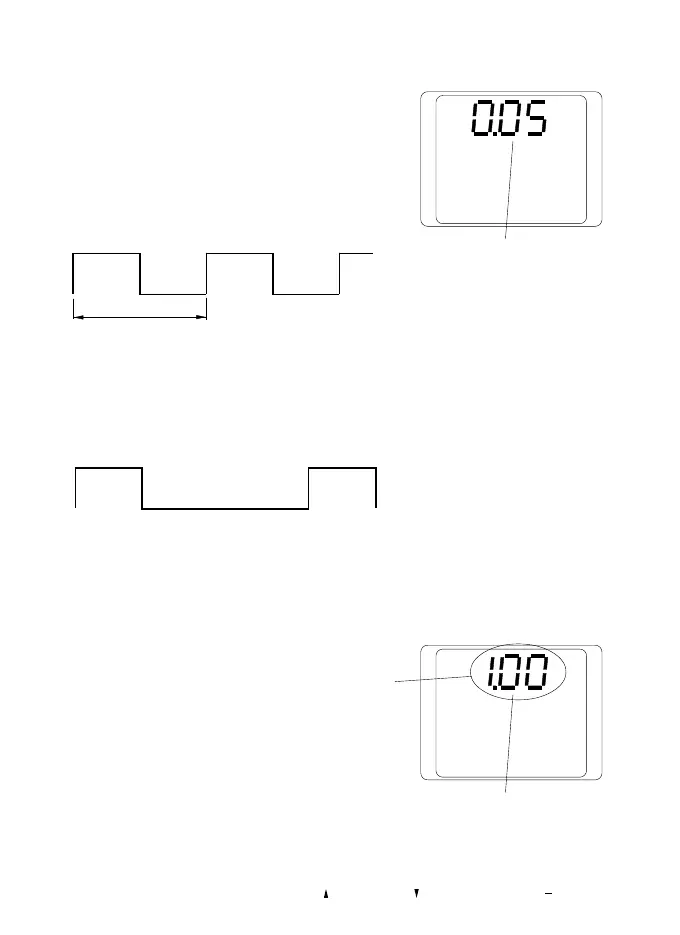

Minimum pulse width = 0.05s.
The outputs of UMG96 are equipped with semiconductor switches.
If a pulse appears, the output transistor becomes conductive and a
current can flow.
At minimum pulse width the maximum pulse frequency is 10Hz.
If less pulses must be sent, the pulse pauses become longer. The
preset pulse width of 0.05, for example, remains constantly.
Programming of minimumpulse width
Go to minimum pulse width in programming mode using key 2.
Confirm selection with key 1.
The minimum pulse width flashes and can be changed with key 2.
Confirming with key 1, it stops flashing.
Using key 2 you can now change to next programming menu.
Pulse
Pulse pause
Minimum pulse width
Pulse
0.05s
Pulse pause
0.05s
100ms => 10Hz
Minimum pulse width
Diagr. Maximum pulse frequency at minimum pulse width of 0.05
seconds.
Minimum pulse width= 1.00 sec.
PRG
MkWh
MkVArh
L1
L2
L3
S
