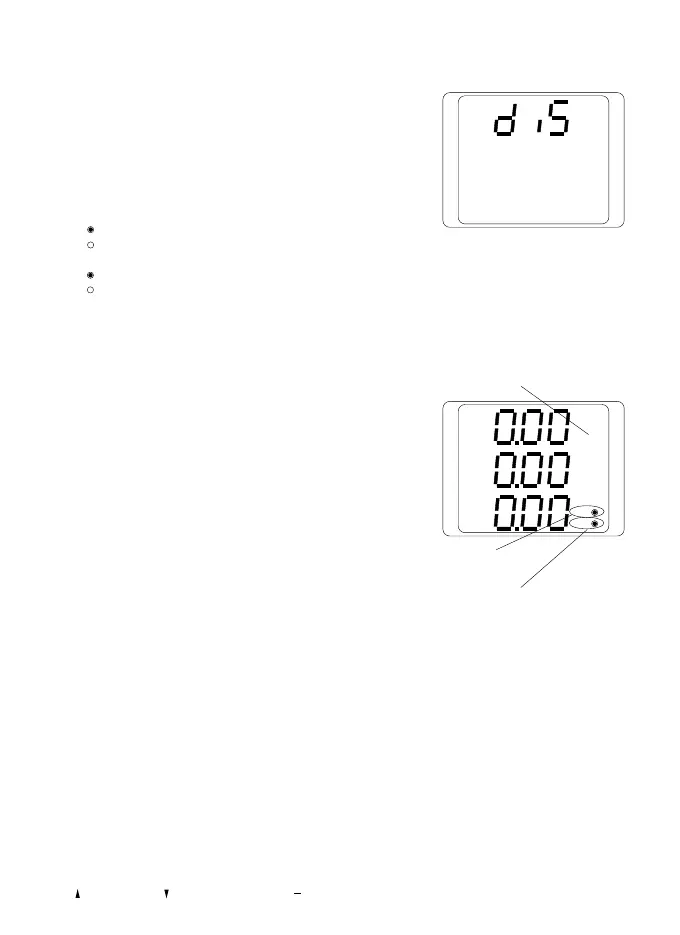

Programming of the measured value selection
With key 1 you change to measured value selection. The first indica-
ted measured value indication is the current in the outer conductors.
In the example, the measured value indication of currents is program-
med for the measured value selection and for the automatic rotation.
The selection of a measured value indication is carried out by a short
pressing of the keys.
Key 1 - Scroll to the right within the measured value indications.
Key 2 - Scroll downwards within the measured value indications.
For the selected measured value indication, you can fix, if it is
available for measured value selection or automatic rotation.
The selection is carried out by a long press of the buttons 1 or 2.
Key 1 - Change over the measured value selection.
Key 2 - Change over the automatic rotation.
If the programming is finished, you return to indication mode by
pressing key 1 and 2 simultaneously.
Measured value selection
In programming menu „measured value selection“, the measured
value indications can be selected via the two keys for automatic rota-
tion.
All listed measured values from table 1 can be called up via the keys
1 and 2, when the device is delivered. The selection for automatic
rotation is programmed together with the value selection.
The condition of the choice is indicated by the output symbols. Those
symbols have the following meaning:
Measured value selection
K1 This indication can be reached via the two keys.
K1 This indication cannot be reached via the two keys.
Measured value rotation
K2 This indication is in automatic rotation.
K2 This indication is not in automatic rotation.
PRG
A
L1
L2
L3
K1
K2
Measured value
selection
Measured value selection
Measured value indication of cur-
rents
