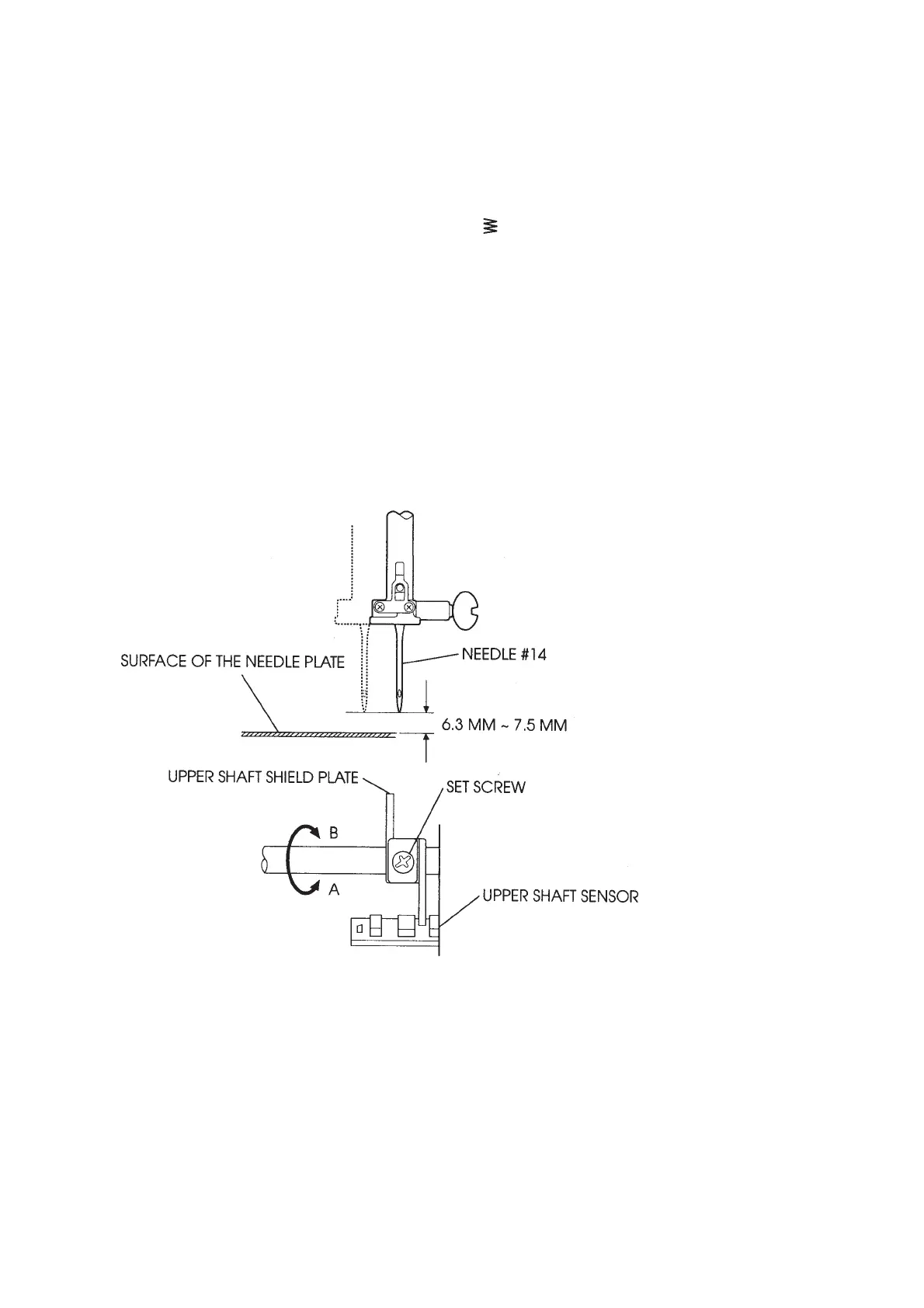

TO ADJUST THE UPPER SHIELD PLATE POSITION
When the machine is set for zigzag stitching, the needle should start to swing 6.3 mm to 7.5 mm above
the surface of the needle plate.
1. Remove top cover.
2. Turn on the power switch and select the pattern ( )
3. Turn the hand wheel toward you slowly with your hand until the needle starts to swing.
(A) If higher than 7.5 mm, loosen the set screws and turn the upper shaft shield plate in
direction of A.
(B) If lower than 6.3 mm, loosen the set screws and turn the upper shaft shield plate in
direction of B.
4. Push the upper shaft shield plate as close as possible to the left. (it should not touch the
upper shaft sensor.) Then tighten the set screw.
5. Turn the hand wheel toward you, and check the start swing.
6. Attach the top cover (see page 1).
