20

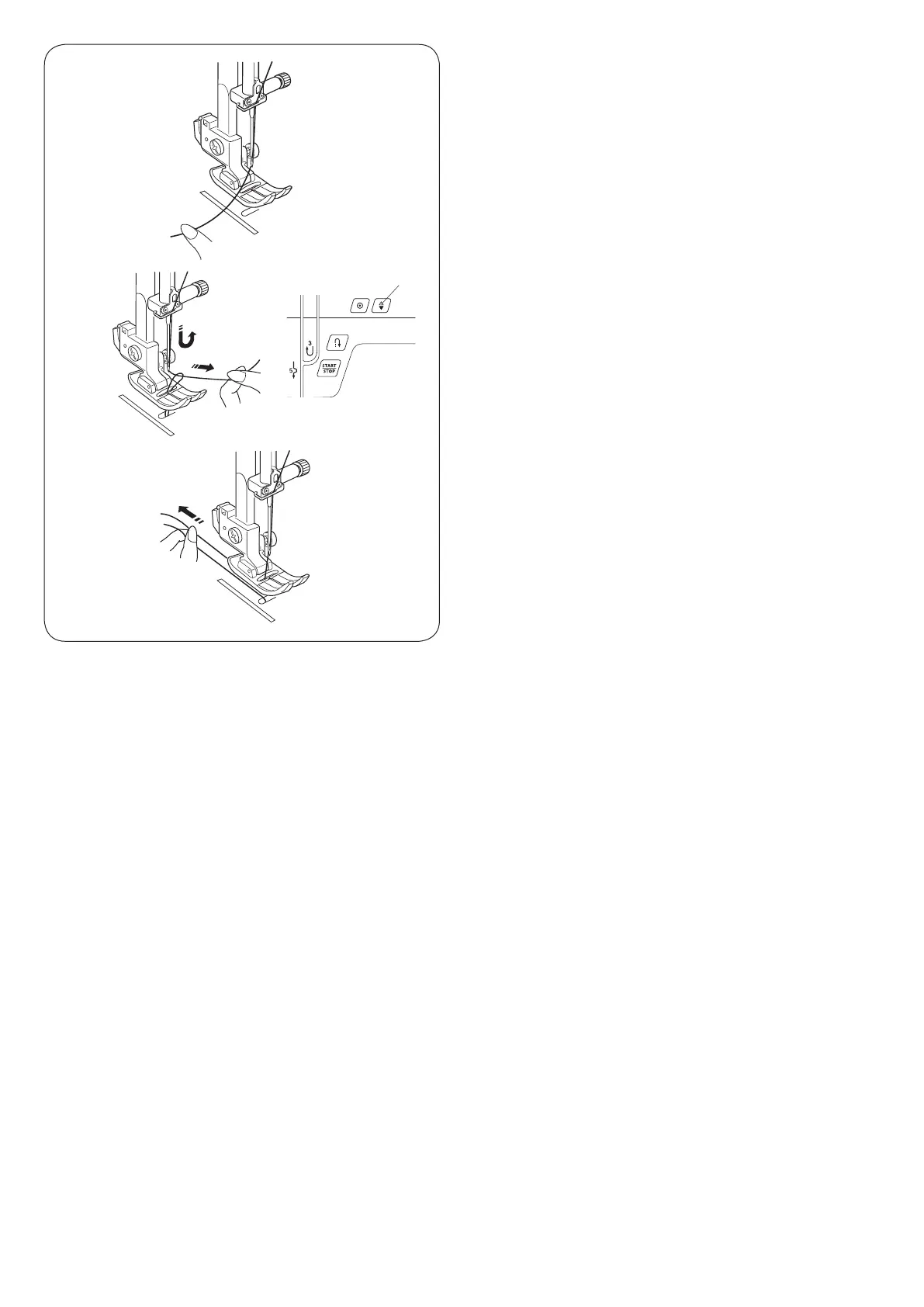

Drawing up the Bobbin Thread
z Raise the presser foot. Hold the needle thread lightly
with your left hand.
x Turn the power switch on.
Press the needle up/down button twice to lower and
raise the needle to pick up the bobbin thread.
q Needle up/down button
c Pull both threads 4˝ to 6˝ (10 to 15 cm) under and
behind the presser foot.
z
x
c
q

Janome MXL50 Specifications

General

Type	Mechanical
Buttonhole Styles	1
Maximum Stitch Width	5mm
Maximum Stitch Length	4mm
LCD Screen	No
Drop Feed	Yes
Free Arm	Yes
Needle Threader	Yes
Adjustable Stitch Length	Yes
Adjustable Stitch Width	Yes
Dimensions	38.1 x 17.8 x 30.5 cm
