Janome MXL50 - Machine Care and Maintenance; Cleaning the Hook Race and Feed Dog; Installing the Bobbin Holder

49

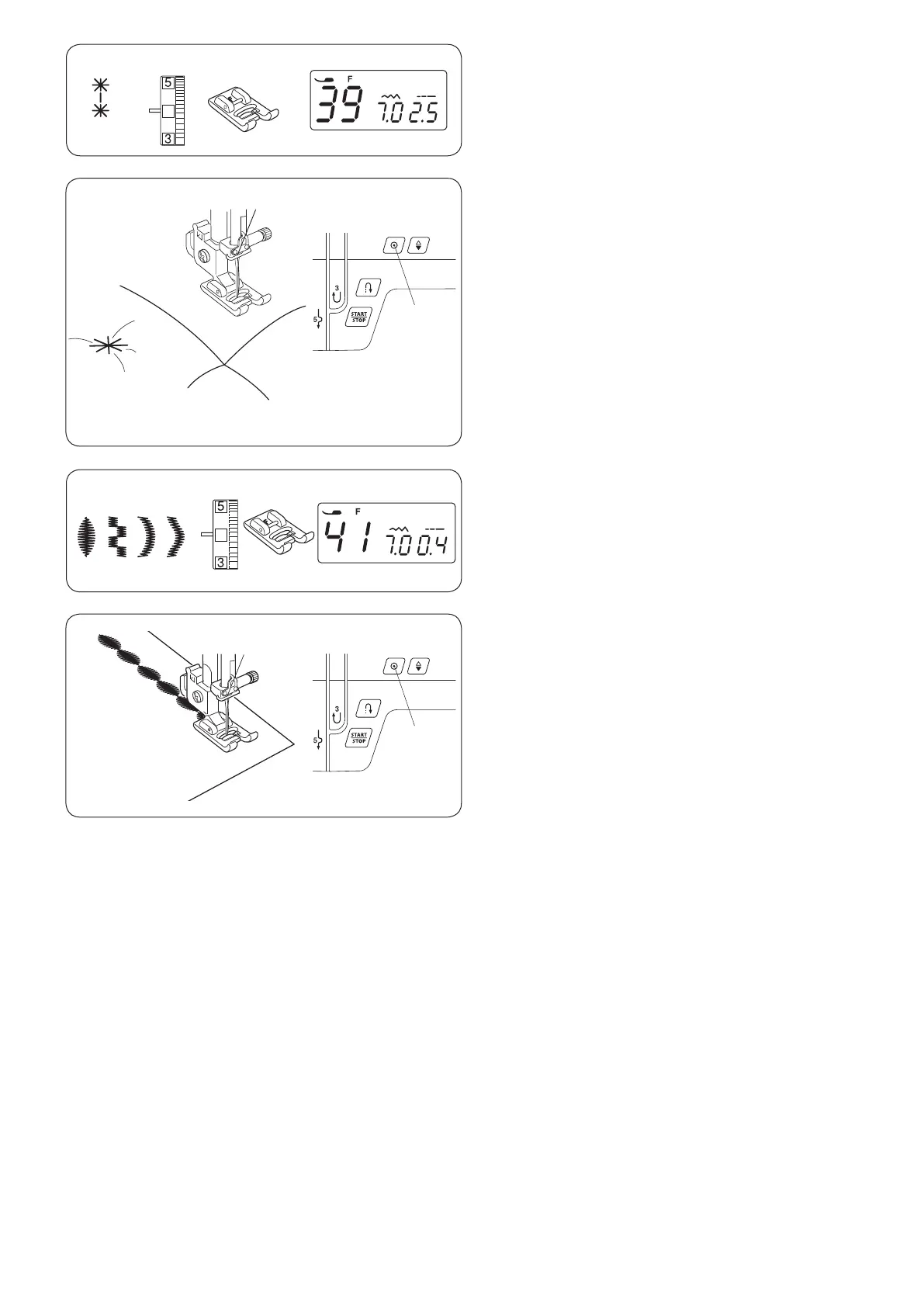

You can close quilt layers and using the clasp stitch.
Select the clasp stitch.
Press the auto-lock button.
Start sewing.
The machine sews clasp stitch and locking stitch then
stops automatically.
q Auto-lock button
Clasp Stitches
q Stitch pattern: 39
w Thread tension dial: 3 to 6
e Presser foot: Satin stitch foot F
4
q
w
e
Satin Stitches
q Stitch pattern: 41
w Thread tension dial: 1 to 4
e Presser foot: Satin stitch foot F
* The stitch patterns 40 and 42 to 43 can also be used.
4
q
w e
For better sewing results, interfacing should be used
on the wrong side of the fabric when you use stretch or
elastic fabrics.
Press the auto-lock button to nish the end of the pattern.
q Auto-lock button
q
q
