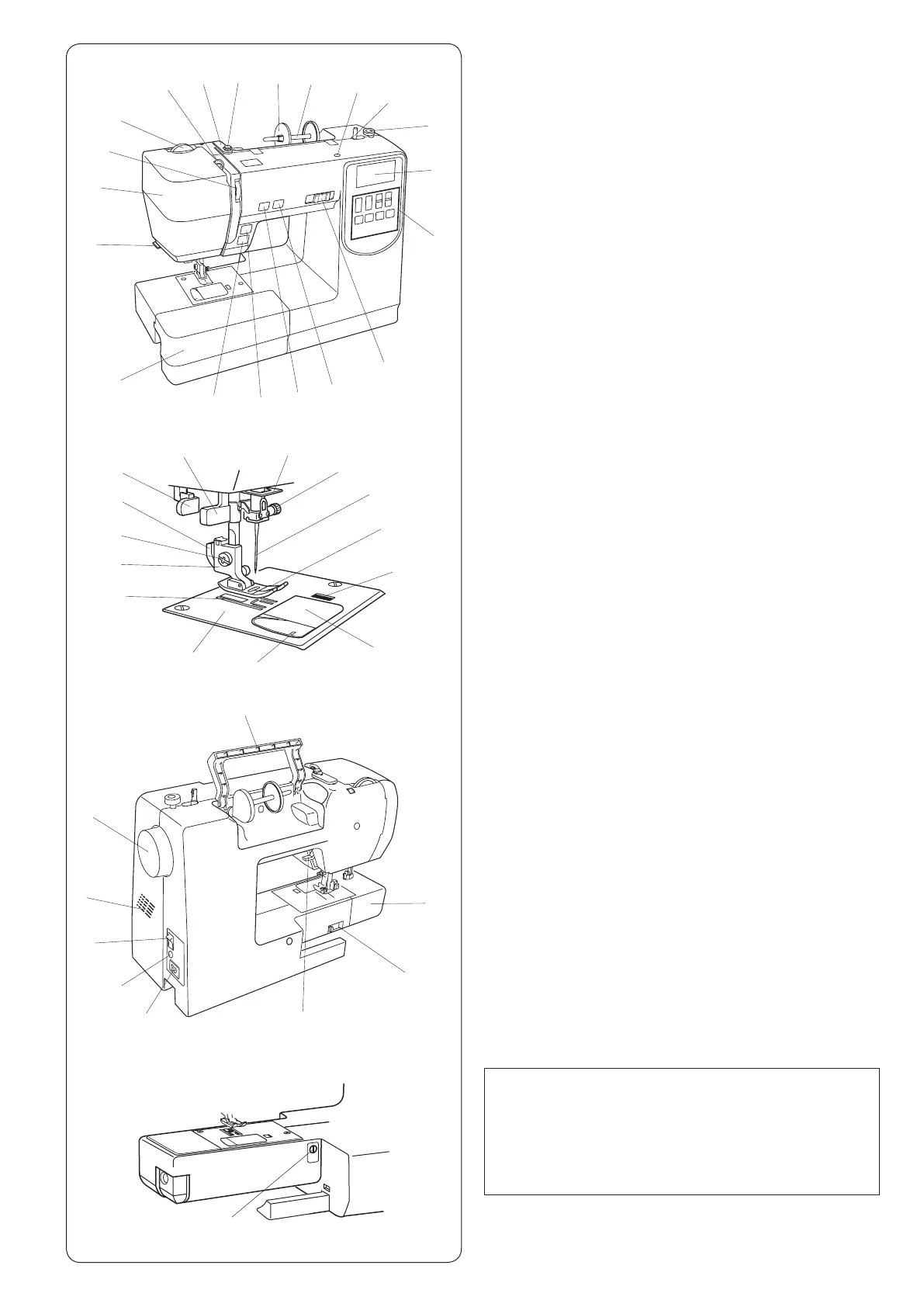

NAMES OF PARTS
Names of Parts
$4
Upper thread guide
Bobbin winding tension disk
Spool holder (large)
Spool pin
Hole for extra spool pin
Bobbin winder spindle
Bobbin winder stopper
LCD display
Function keys
Speed control slider
Needle up/down button
Auto-lock button
Reverse button
Start/stop button
Extension table (Accessory box)
Thread cutter
Face cover
Thread tension dial
Presser foot pressure dial
Thread take-up lever
Lower thread guide
Needle clamp screw
Needle
Presser foot
Hook cover release button
Hook cover plate
Thread cutter
Needle plate
Feed dogs
Foot holder
Setscrew
Lever
Buttonhole lever
Needle threader
Carrying handle
Free-arm
Drop feed lever
Presser foot lifter
Power inlet
Foot control jack
Power switch
Ventilation openings
Handwheel
Feed balancing dial
q
w
e
r
t
y
u
i
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
@0
@2
@3
@4
@5
@8
@9
#0
#1
#2
#5
#6
#7
#8
#9
$0
$1
$2
$3
NOTE:
• To carry the sewing machine, hold the carrying
handle with your hand, and support the sewing
machine with the other hand.
• Design and specications are subject to change
without prior notice.
@6
#3
#4
!9
@7
@1
