QMP16SU Service Manual | 29
Check the Base-Plate Wheels
Check
Adjust if necessary
Tool: 6mm hex wrench
in shim washers or material may be used on the
front base plate. Loosen the two front base plate
screws with a 6mm hex tool. Shim between the bot-
tom of the machine back casting and the top of the
baseplate on the side where the wheel is not touching
the planed surface, until the machine does not rock
on the planed surface.

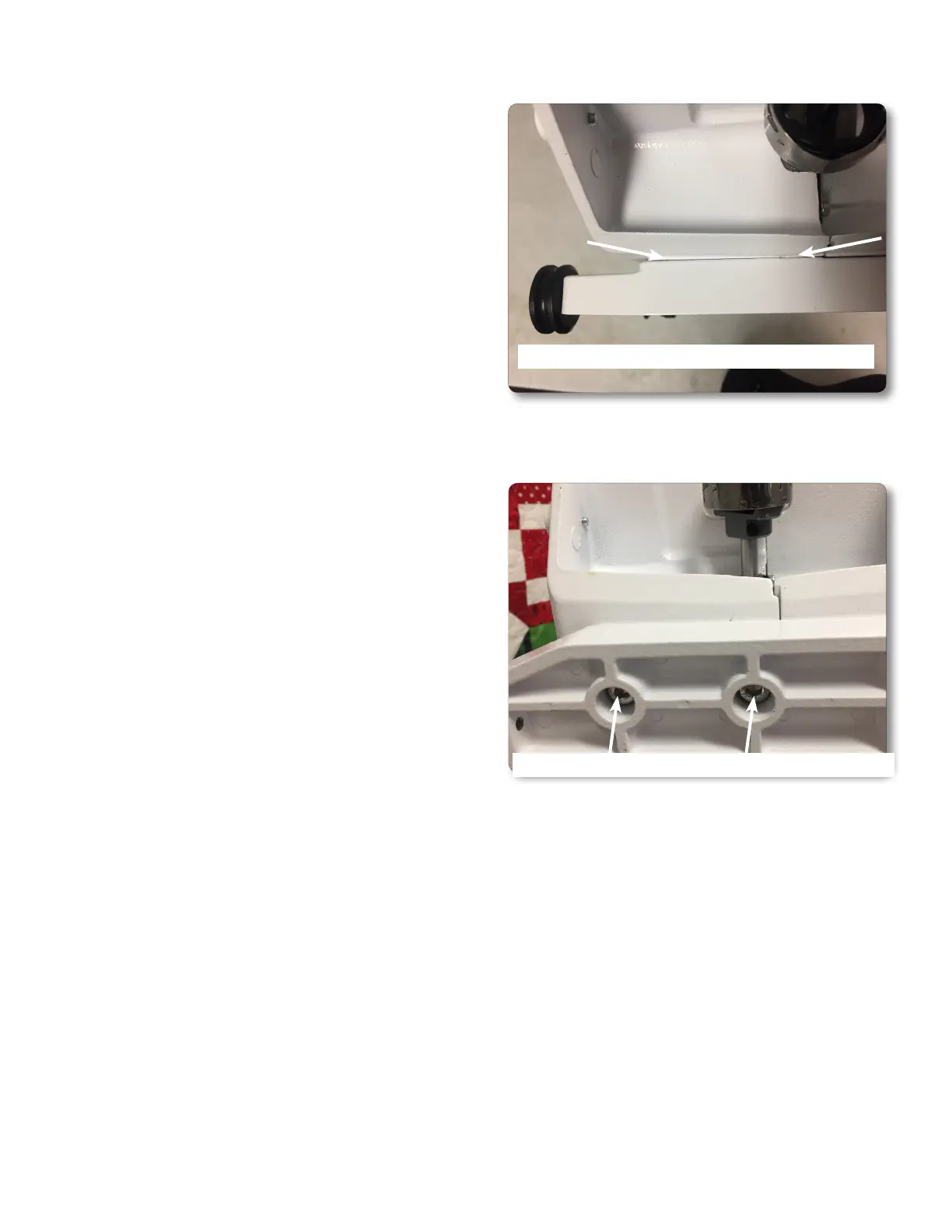

Place the shims at one of the arrow locations
Use a 6mm hex tool to loosen the baseplate screws
