4.1.2 Rear Panel
"AC INPUT"
Fuse
"
AUX
"
" RECORDER "
"
GND
"
" USB "
" iRM "
Warning indications

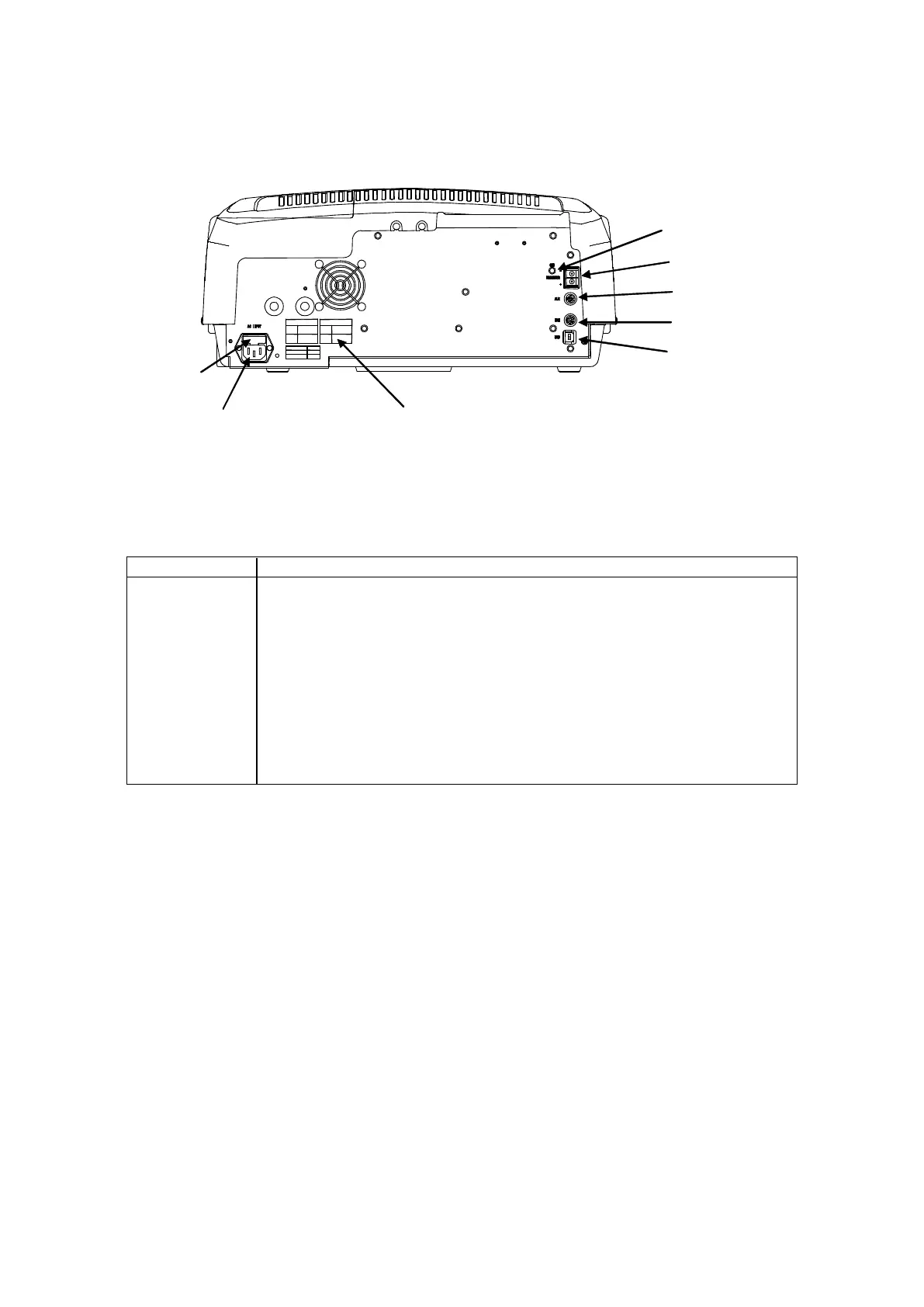

Figure 4.2 V-630 rear panel
Name Function
AC INPUT The power supply input connector. Connect with the power cable.
Fuse Fuses for the main unit
Warning
indications
Warning indications for fuse and ground.
GND Grounding terminal
RECORDER Terminal for analog output.
The value specified by setting the scale of [Abs/%T meter] program is
recorded in the range 0 to 1 V.
AUX Auxiliary connector for connecting an accessory.
iRM Connector for connecting the cable of iRM.
USB Connector for connecting the cable with PC.
