3.3 iRM System
Figure 3.7 shows the schematic diagram of the iRM system.
The iRM can be connected to the V-630/650/660/670 spectrophotometers, and can be used to
control measurement, printing, and saving. Various menus can be selected using the touch panel
key on the color LCD.

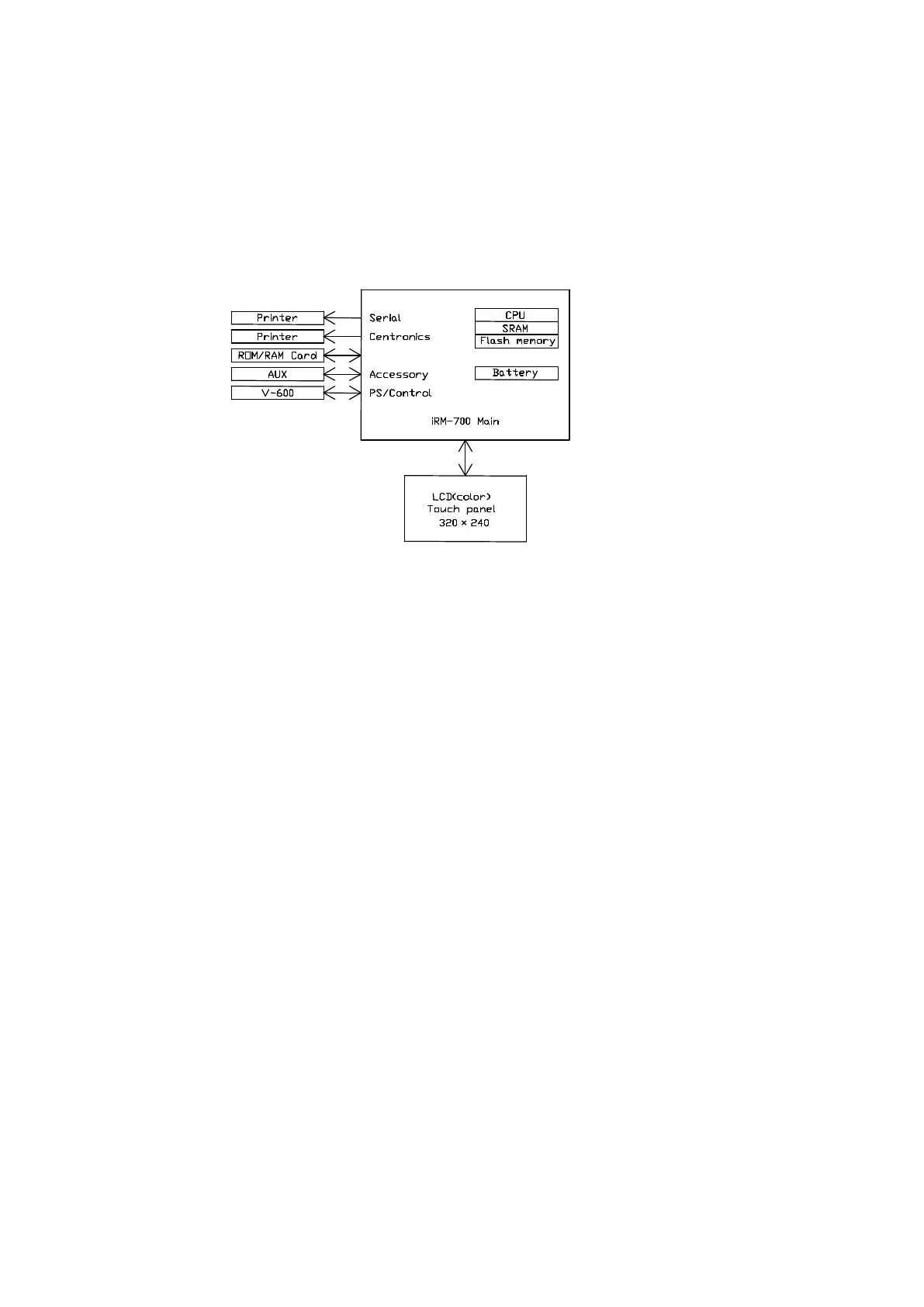

Figure 3.7 iRM system diagram
