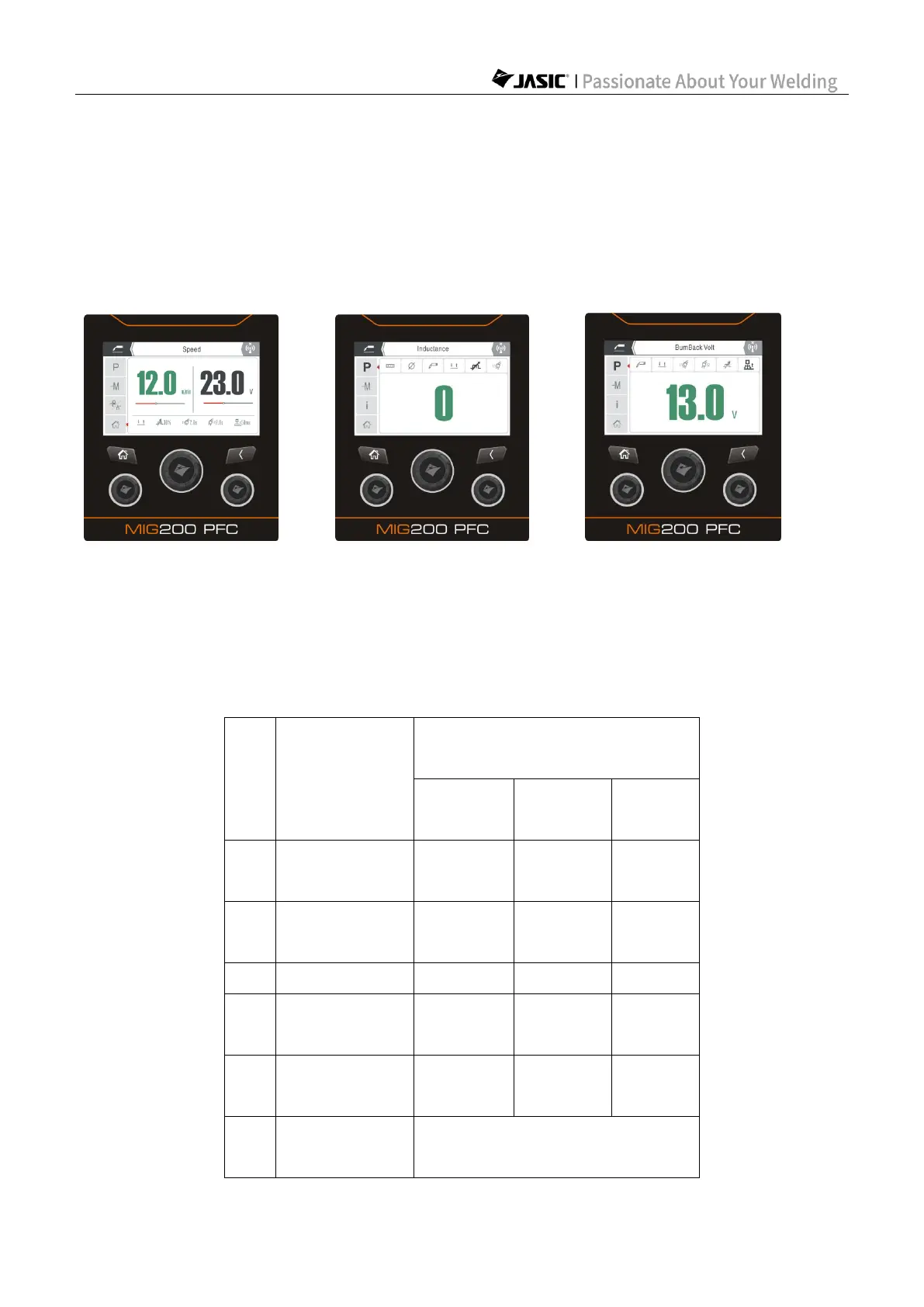

(Setting wire feed speed and voltage) (Setting inductance) (Setting burn back)
1) Use "Parameter Adjustment Knob A" to set the "Wire Feed Speed".
2) Use "Parameter Adjustment Knob B" to set the "Welding Voltage".
3) Press "Parameter Adjustment Knob B" to switch display of "Welding Voltage", "Welding
Inductance", and "Burn Back Time" and set the parameter values.
LCD screen:
The adjustable parameters are as shown in the following figures in MIG mode with "Synergic"
disabled:
(Setting wire feed speed and voltage) (Setting inductance) (Setting burn back)
1) Use the "Master Encoder" or "Parameter Adjustment Knob A" to set the "Wire Feed
Speed".
2) Use "Parameter Adjustment Knob B" to set the "Welding Voltage".
3) Enter the "Parameter Settings" page to set the "Inductance" and "Burn Back Voltage".
In "Non-synergic" MIG mode, the parameters that can be set on the panel and their ranges
are as follows:
SN
Parameter
Name
Parameter options or range (Input
230VAC)
MIG250PF
C
MIG250
MIG200P
FC
1
Wire feed
speed (m/min)
2~18
2~18
2~16
2
Welding voltage
(V)
11~30
11~30
11~28
3
Inductance
-10~10
-10~10
-10~10
4
Burn back time
(ms)
0~800
0~800
0~800
5
Burn back
voltage (V)
10.0~20.0
10.0~20.0
10.0~20.
0
SN
Parameter
Name
Parameter options or range (Input
115VAC)
