1.2.2. Data and Power Ports
The DELTA receiver can be equipped according users needs and have different ports on the front and
back panels.
Below are presented some examples of possible configurations (Figure 1-4):

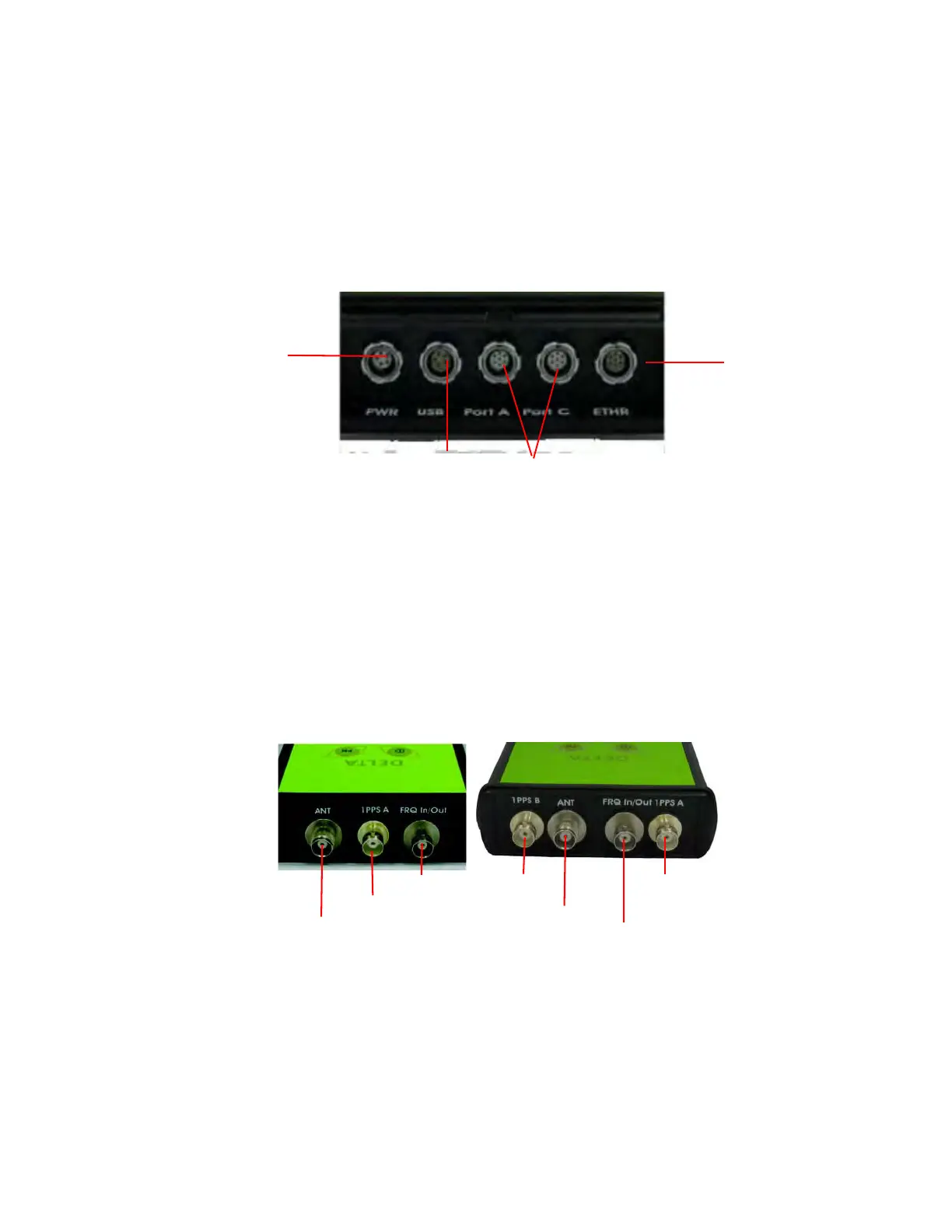

Figure 1-4. DELTA Ports
• Power – used to connect the receiver to an external power source. This port can also be used to
charge the batteries.
• Serial – used for communication between the receiver and an external device.
• Ethernet - used to connect the receiver to local network.
• USB –used for high-speed data transfer and communication between the receiver and an external
device.
The DELTA receiver can be equipped according users need and have different connectors on the back
panel. Below are presented some examples of possible configurations:
• The external GNSS antenna connects to the TNC external antenna connector (optional)
• The 1PPS and Event marker BNC connectors (up to two) (optional)
• External Frequency Input/Output BNC connector (optional)
USB Serial
Ethernet
PWR
GNSS Antenna
Connector
Connector
GNSS Antenna
1PPS B
1PPS A
Frequency I/O
1PPS A
Frequency I/O
