Specifications
Connector Specifications
GNSS Board Details
44 www.javad.com
A.2. Connector Specifications
Power Connector

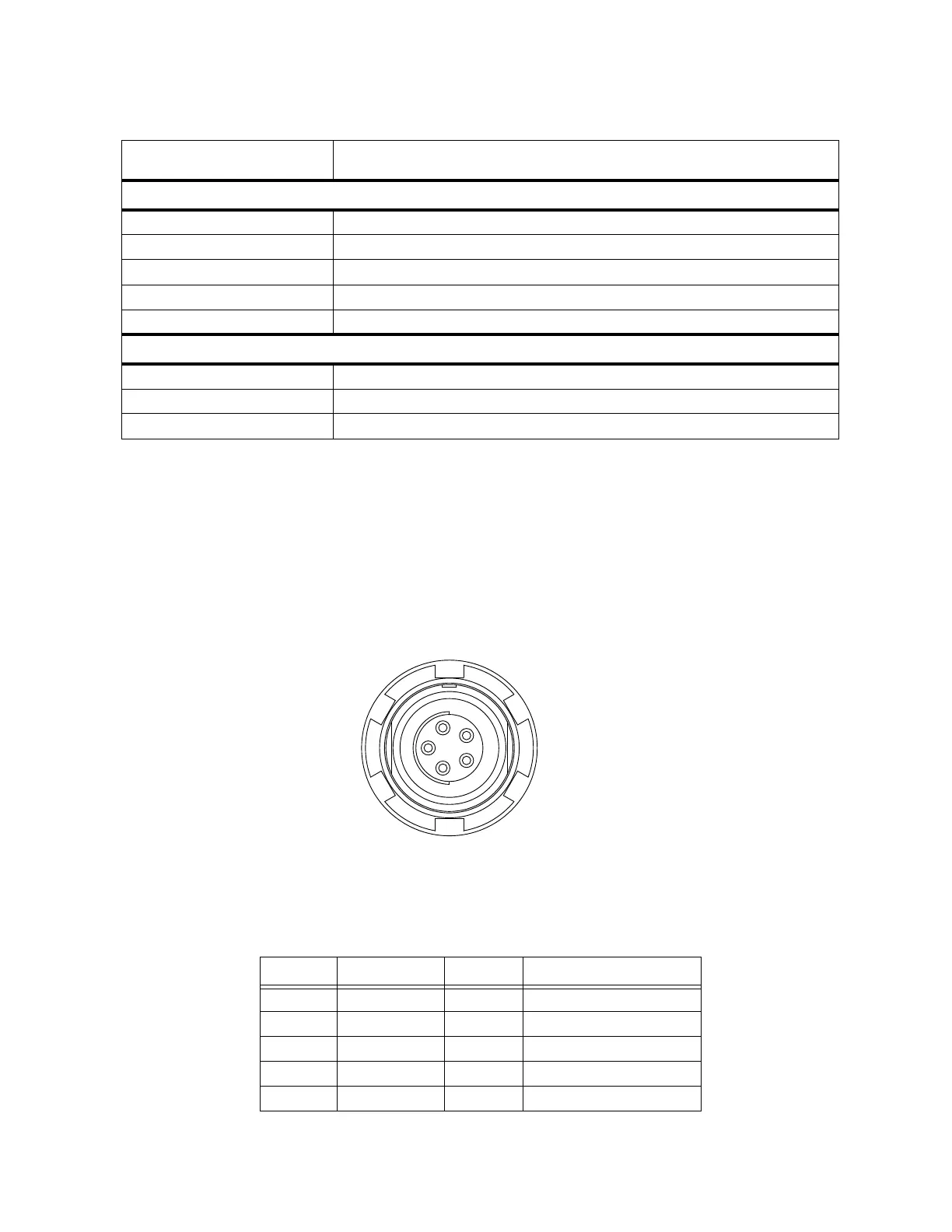

The power connector (Figure A-1) is a sealed receptacle, 5 pin, ODU p/n G80F1C-T05QF00-0000.
Figure A-1. Power Connector
Table A-3 gives power connector specifications.
Table A-3. Power Connector Specifications
Data Type Code and Carrier from GPS L1, L2, Galileo E1/E5A,
GLONASS L1/L2 (G3T only)
1PPS Output (optional)
Number of PPS ports 1
Edge Rise, Fall
Period 10 to 1000000000 ms
Offset -500000000 to 500000000 msec
Reference time GPS, GLONASS, UTC (USNO), UTC (SU)
Event Marker (optional)
Number of event Marker ports 1
Edge Rise, Fall
Reference time GPS, GLONASS, UTC (USNO), UTC (SU)
1. The simultaneous signals tracking is limited by the number of the available channels. By the attitude
determination GPS L1/L2/L2C and GLONASS L1/L2 tracking should be active only.
1
5
4
2
3
Number Signal Name Dir Details
1 Power_INP P 10 to 30 volts DC input
2 Power_INP P 10 to 30 volts DC input
3 Power_GND P Ground, power return
4 Power_GND P Ground, power return
5 Not used
