Javad DELTA - Serial RS-232 C Connector

Specifications
Connector Specifications
GNSS Board Details
45www.javad.com

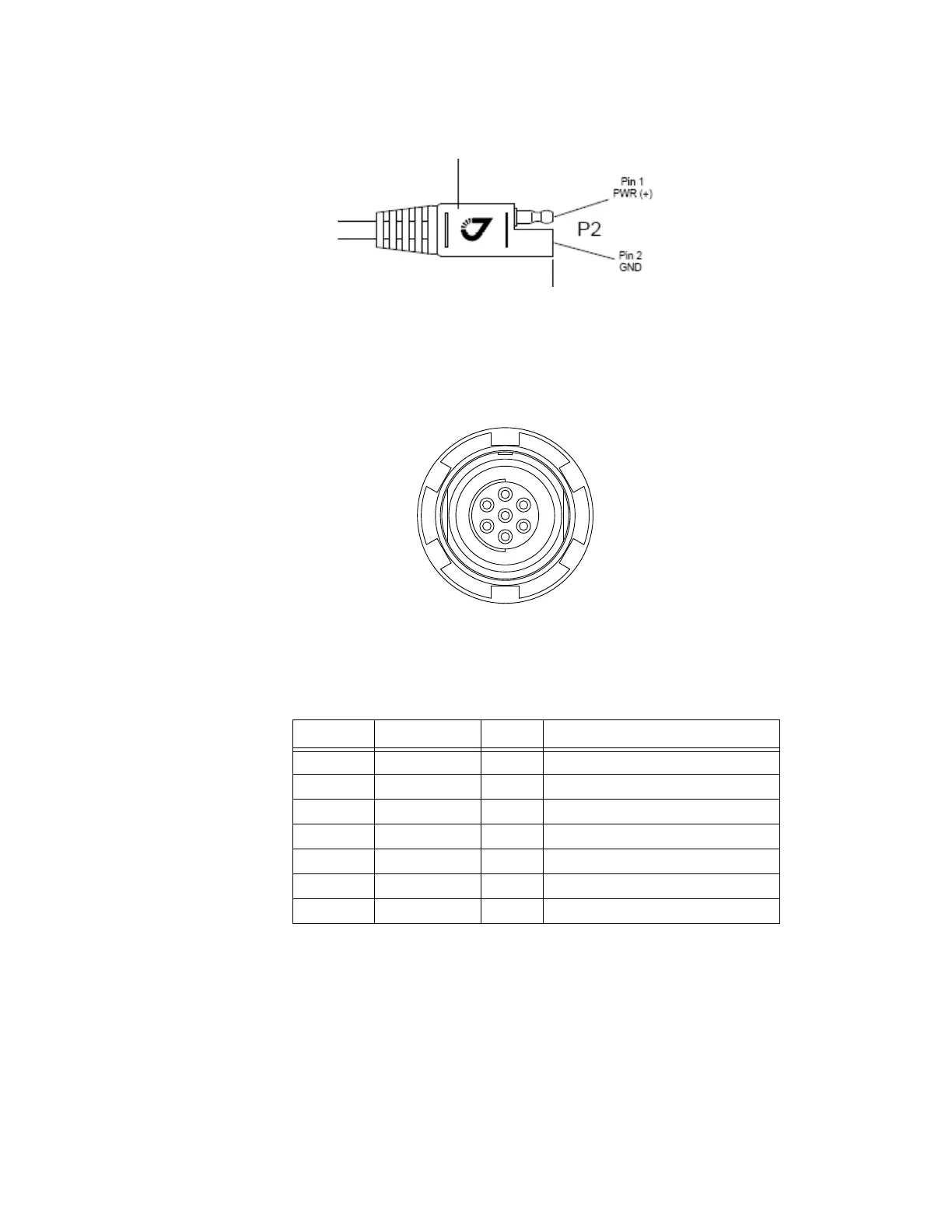

Figure A-2. Polarity of SAE for power cable P/N 14-578101-01
Serial RS-232C Connector
The RS232 connectors (Figure A-3) are sealed receptacle, 7 pin, ODU p/n G80F1C-T07QC00-0000.
Figure A-3. RS-232C Connector
Table A-4 gives the RS-232C cable connector specifications.
Table A-4. RS-232C Cable Connector Specifications
1
7
2
3
4
5
6
Number Signal Name Dir Details
1- --
2 GND - Signal ground
3 CTS I Clear to send
4 RTS O Request to send
5 RXD I Receive data
6 TXD O Transmit data
7Not used
