USB Connector

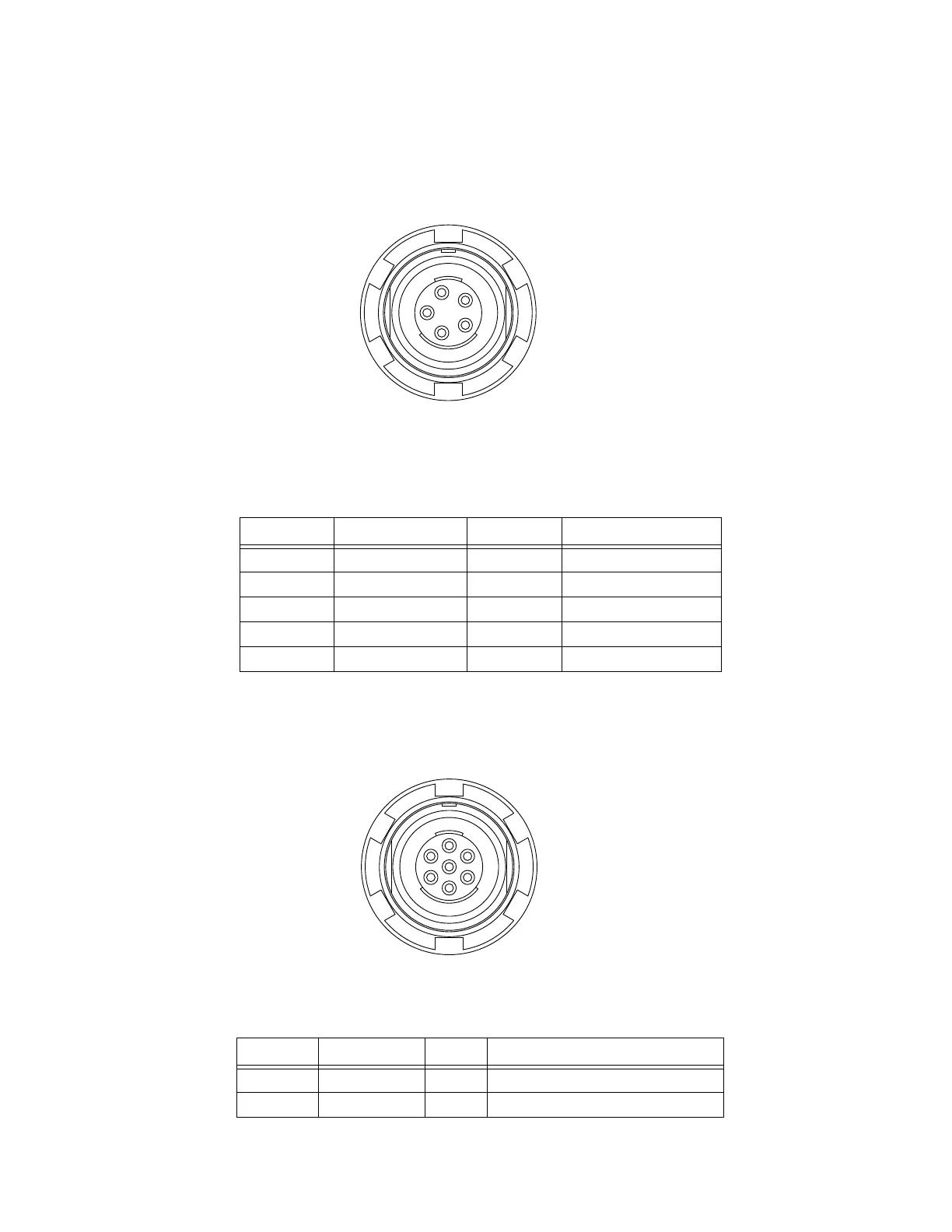

USB connector is a sealed receptacle, 5 pin, ODU p/n G80F2C-P05QF00-0000 (Figure A-4).
Figure A-4. USB Connector
Table A-5 gives the USB connector specifications.
Table A-5. USB Connector Specifications
Ethernet Connector
The Ethernet connector is a sealed receptacle, 7 pin, ODU p/n G80F2C-P07QC00-0000 (Figure A-5).
Figure A-5. Ethernet Connector
Table A-6. Ethernet Connector Specifications
1
2
3
4
5
Number Signal Name Dir Details
1
2 USB_PWR P Bus power
3GND - Ground
4 USB D+ I/O Data plus
5 USB D- I/O Data minus
7
6
1
2
3
4
5
Number Signal Name Dir Details
1Not used
2 Power_GND Signal ground
