RS422/RS232/CAN Connector
The RS422/RS232/CAN connector is a sealed receptacle, M12, 8 pin Male receptacle, FM, M16x1.5,
flying lead connector Binder-USA p/n 09-3481-700-08 (Figure A-6)

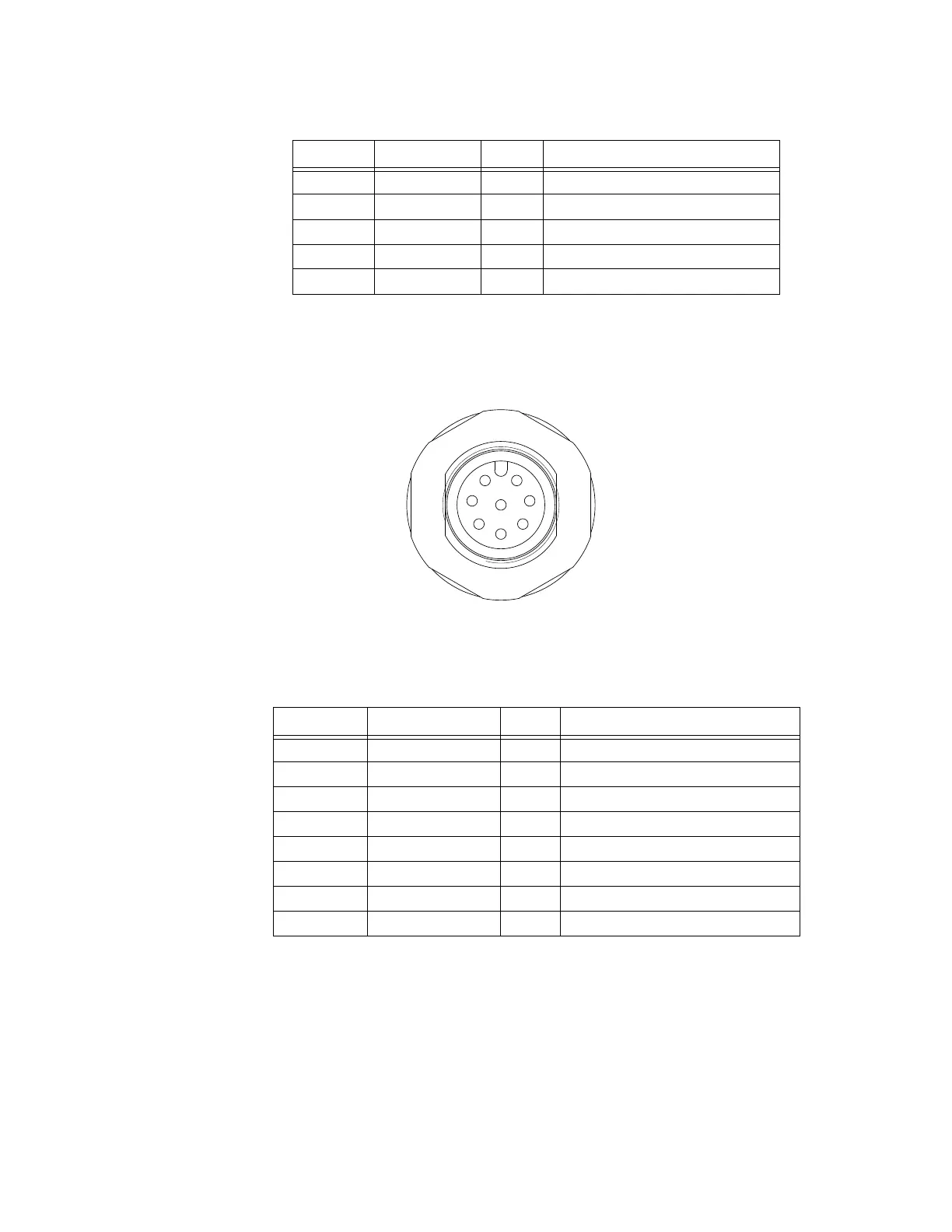

Figure A-6. RS422/RS232/CAN Connector
Table A-7 gives the RS422/RS232/CAN connector specification.
Table A-7. RS422/CAN Specification
GNSS External Antenna RF Connector
The external antenna connector type is a TNC RF connector with an Applied Engineering Product p/n
6001-7051-003. RF input from LNA, 100 mA at 5.0 volts DC output.
3 TXD+ O Transmit data plus
4 TXD- O Transmit data minus
5 RXD+ I Receive data plus
6 RXD- I Receive data minus
7 LAN LED External LAN LED anode
Number Signal Name Dir Details
1
7
2
3
4
5
6
8
Number Signal Name Dir Details
1 PWR OUT P Bus power, +12 V DC, 250 mA max
2 GND - Ground
3 422_TX+/RTS O Port TX+ line/RTS
4 422_TX-/TX O Port TX- line/TX
5 422_RX+/CTS I Port RX+ line/CTS
6 422_RX-/RX I Port RX- line/RX
7 CAN_H I/O CAN_H bus line (dominant high)
8 CAN_L I/O CAN_H bus line (dominant low)
