3.6. Controls

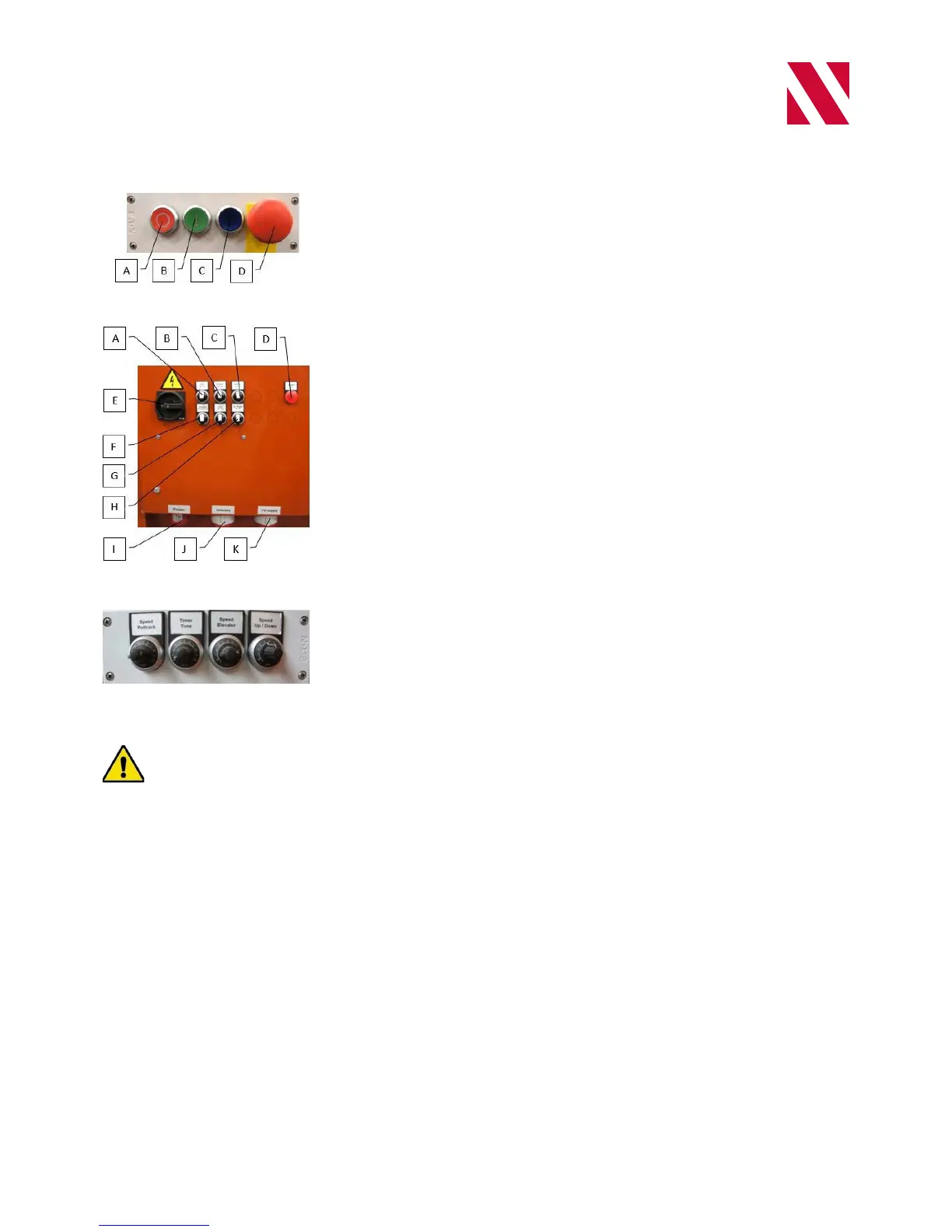

Themotorisoperatedusingthecontrolsonthecontrolpanel,whichareasfollows:
A. Stop button
B. Start button
C. Reset button
D. Emergency stop
Thefollowingbuttonsandconnectionsaremountedon/ttedtotheelectricalcabinet:
A. Drill ON/OFF
B. Pot track ON/OFF
C. Elevator ON/OFF
D. Stopped / error
E. Main switch
F. Pot dispenser continuous / non-continuous
G. Timer ON/OFF
H. Soil supply ON/OFF
I. Main power socket IN
J. Switched power socket OUT
K. Constant power supply socket OUT (optional)
Speedcontrolpotentiometers(optional):
4. Transport
Follow all the instructions given in this manual, in particular the instructions in the Safety Section.
Ondelivery,aJavoengineermustbepresenttounloadthemachinefromthetruckorwagon.
Do not move the machine until the power cable and compressed air line have been disconnected. Make sure that the
hoses and cables are stowed properly.
Check the machine's condition before moving the machine at the company's site (when it does not need to be
lifted). First check that the route is unobstructed so that the machine can be moved to the required position without
problems.
Contactyoursupplierwhenthemachineneedstobeliftedfortransportawayfromthecompanysite,orcalla
professional shipping company.
Do not move the machine until the transport belt (take-off conveyor) has been removed. The machine must
betransportedupright.Therelativehumiditymustnotbetoohigh,sothattherewillbenocondensationinthe
machine.
Report any damage during or immediately after the delivery to the shipping company and to Nobels BV. Take all the
necessary measures to avoid further damage.
