Installation Guide for 3G Antennas
2.5.2 - Antennas with three mounting pivot points
The accessory p/n 0900533/00 is dedicated only to antenna with 3 pivots at the back. It is used for
installation on wall with ±30° azimuth panning and mechanical tilt capability. It includes the three

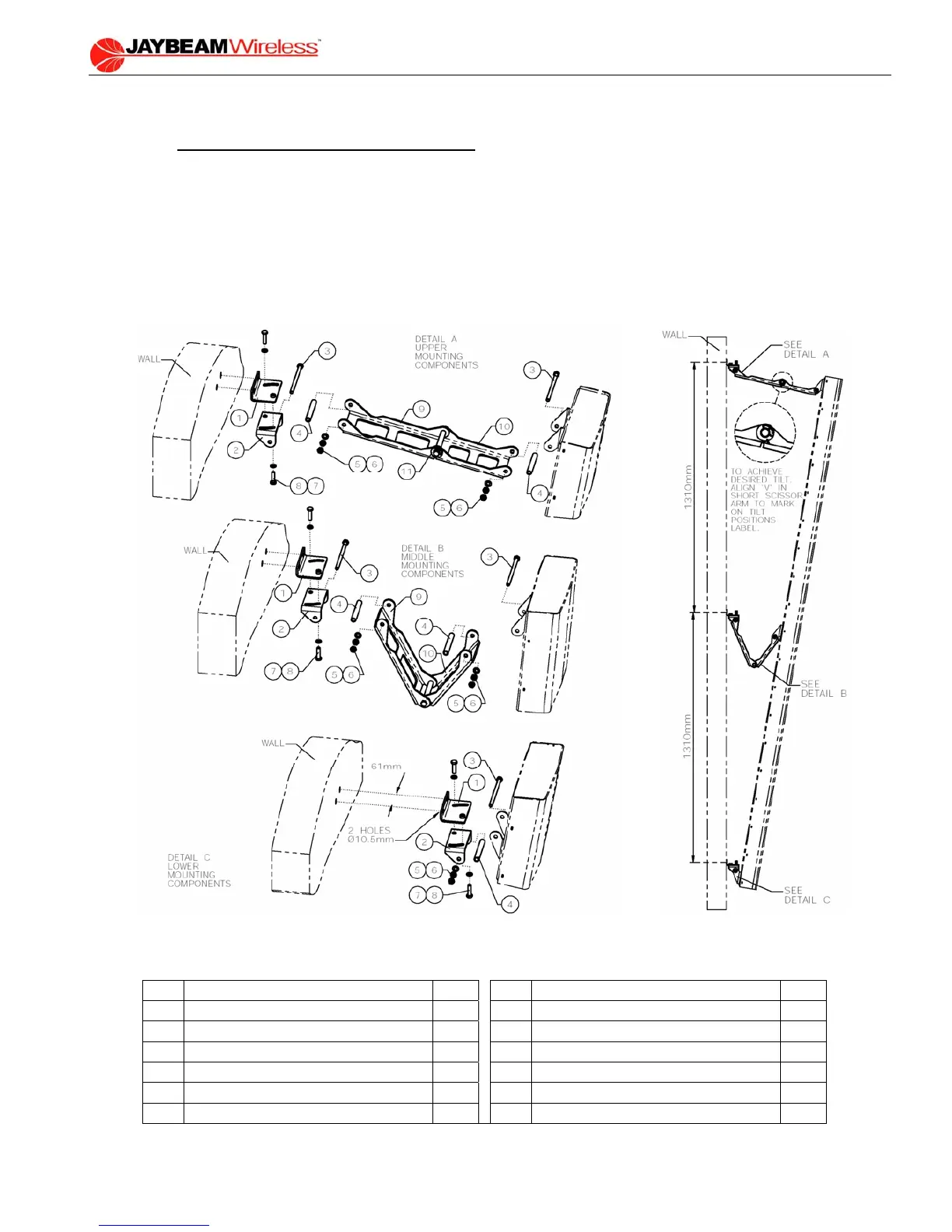

panning brackets. The figures and part list below describe the kit and how to assemble it on the
antenna. The figure at top of page 7 shows the panning capability.
The top scissor has a tilt angle indicator label.
Note that the three panning brackets are identical in this kit.
3 pivots points antenna - Mechanical tilt with pan - 0900533/00 part list
item description quantit
y
item description quantit
y
1 Wall bracket Right Hand 3 7 M8 coil spring washer 6
2 Pan bracket Right Hand 3 8 M8 x 30 mm hex head screw 6
3 M8 x 130 mm hex head bolt 7 9 Long scissor arm 2
4 Spacing tube 7 10 Short scissor arm 2
5 M8 plain washer 8 11 Tilt position label (top scissor only) 1
6 M8 full nut 14
