Jaybeam Wireless 5157120 - Hardware for Pole Mounting (Large)

Issue 05
Page
14/20
Installation Guide for 3G Antennas

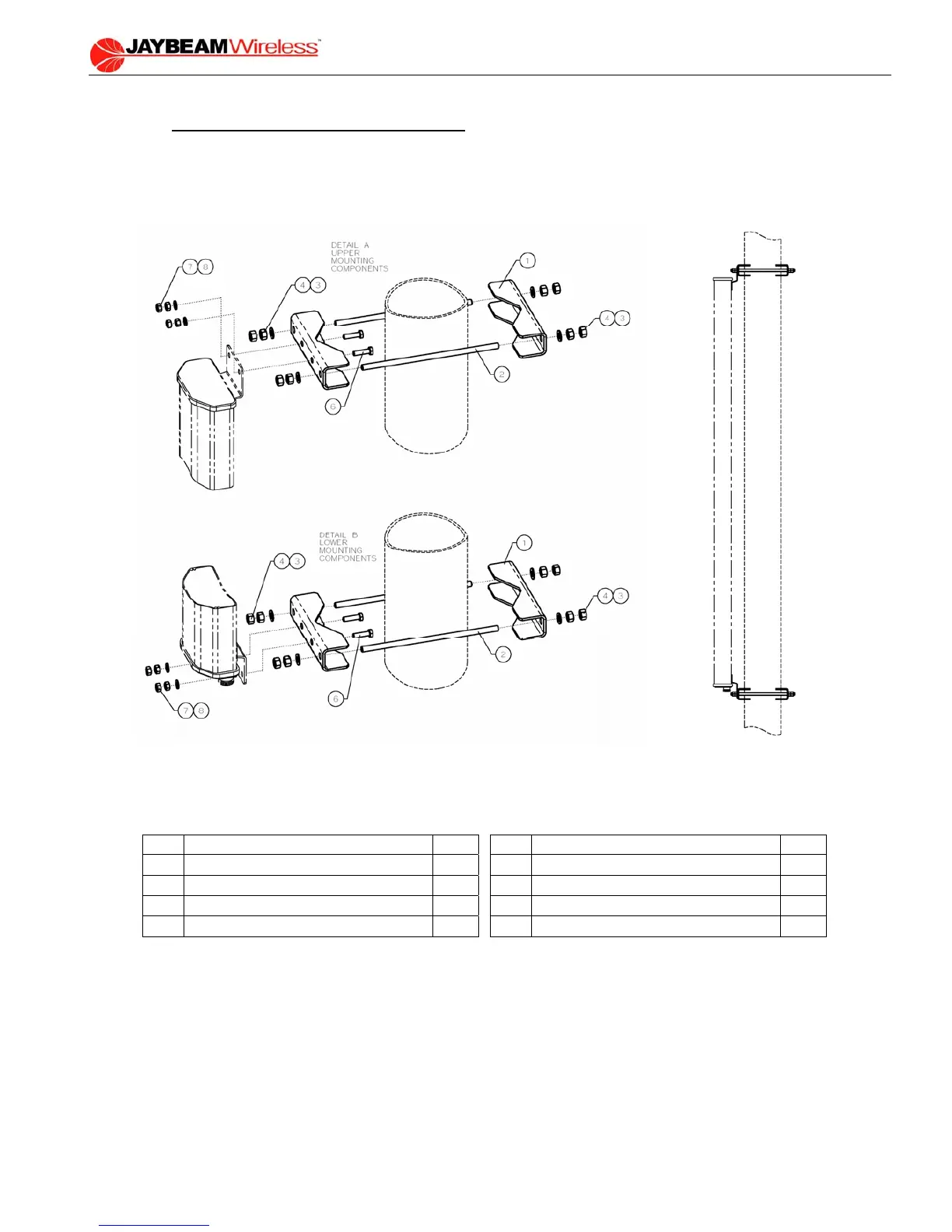

3.2 - Hardware for pole mounting (large)
The accessory p/n 0900503/00 is a set of two pole brackets for installation on pipes of 70 to 150 mm
diameter. The figures and part list below describe the kit and how to assemble it on the antenna.
0900503/00 part list
item description quantit
y
item description quantit
y
1 Pole clamp 4 5 - not used -
2 M10 studding 260 mm 4 6 M8 x 30 mm hex head screw 4
3 M10 plain washer 8 7 M8 plain washer 4
4 M10 full nut 16 8 M8 full nut 8
