Jaybeam Wireless 5157120 - Section 3 - Accessories for Antennas with Mounting Plates at Top and Bottom; Hardware for Pole Mounting (Standard)

Issue 05
Page
13/20
Installation Guide for 3G Antennas
Section 3 - Accessories for antennas with mounting plates at top and bottom
3.1 - Hardware for pole mounting (standard)
The accessory p/n 0900390/00 is a set of two pole brackets for installation on pipes of 48 to 115 mm

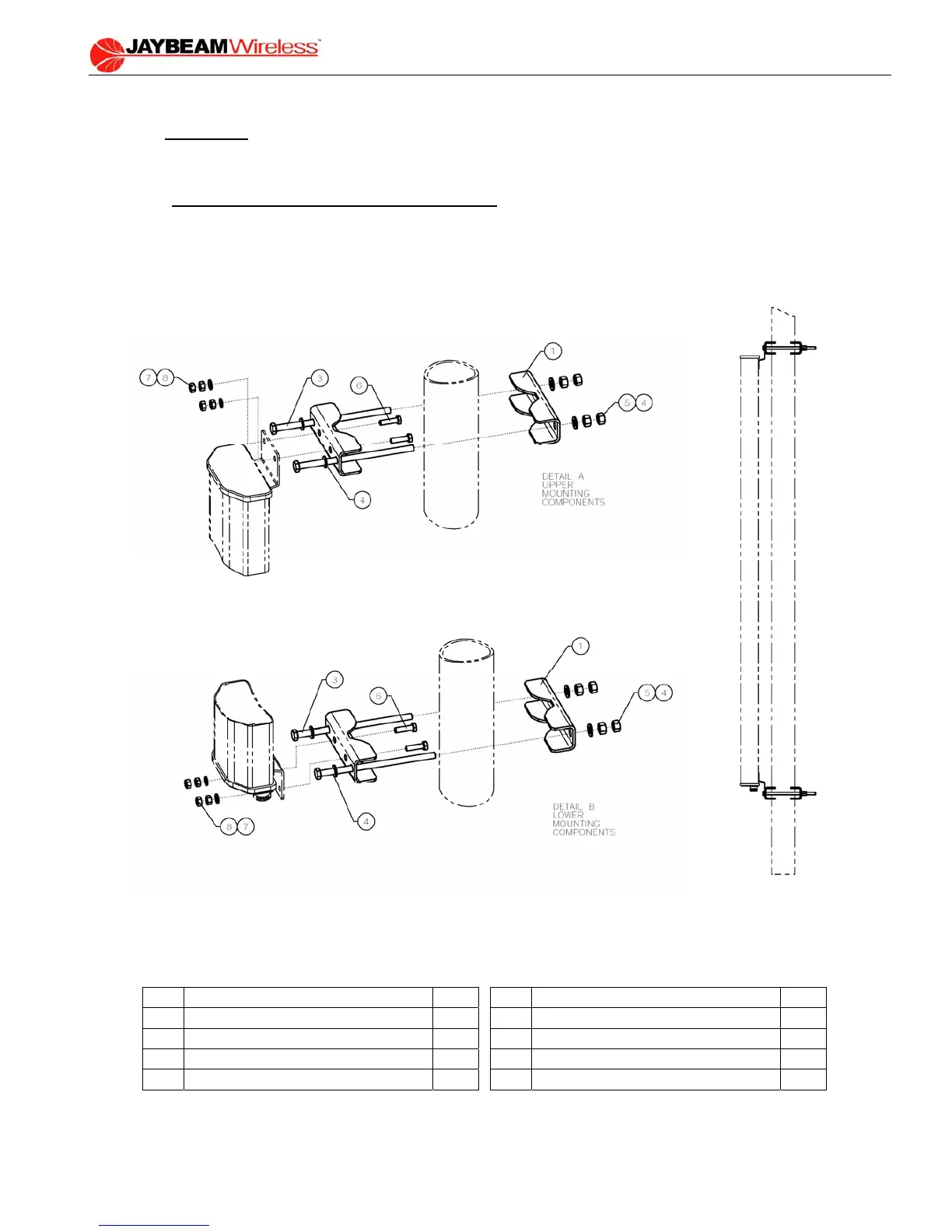

diameter. The figures and part list below describe the kit and how to assemble it on the antenna.
0900390/00 part list
item description quantit
y
item description quantit
y
1 Pole clamp 4 5 M10 full nut 8
2 - not used - 6 M8 x 30 mm hex head screw 4
3 M10 x 200 mm hex head screw 4 7 M8 plain washer 4
4 M10 plain washer 8 8 M8 full nut 8
