Jaybeam Wireless 5157120 - Hardware for Wall Mounting

Issue 05
Page
15/20
Installation Guide for 3G Antennas
3.3 - Hardware for wall mounting

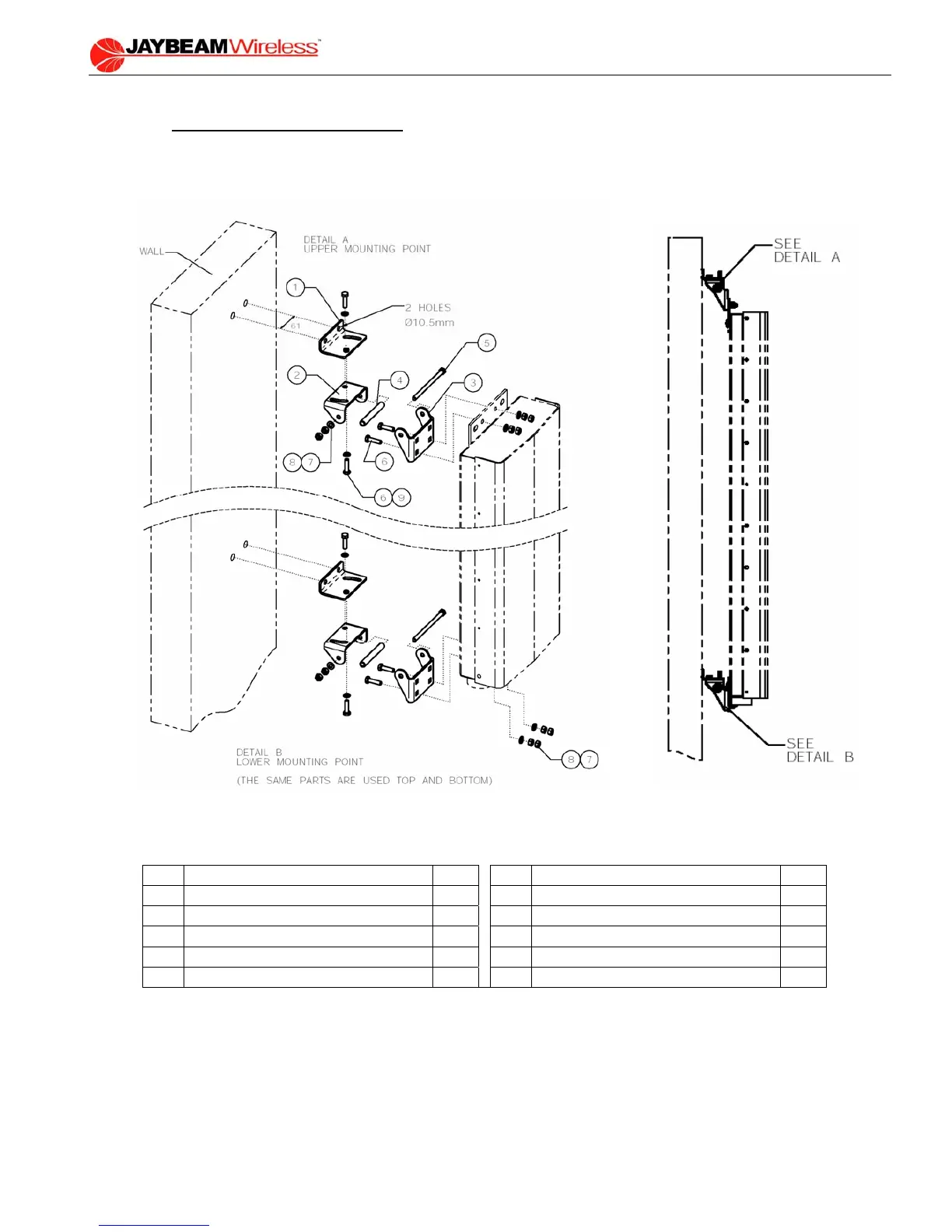

The accessory p/n 0900408/00 is a set of two brackets for installation on wall with ±30° azimuth panning
capability. The figures and part list below describe the kit and how to assemble it on the antenna.
0900408/00 part list
item description quantit
y
item description quantit
y
1 Wall bracket 2 6 M8 x 30 mm hex head screw 8
2 Pan bracket 2 7 M8 plain washer 6
3 Antenna backet 2 8 M8 full nut 12
4 Spacing tube 2 9 M8 coil spring washer 4
5 M8 x 130 mm hex head bolt 2
