Issue 05
Page
4/20
Installation Guide for 3G Antennas
Section 2 - Accessories for antennas with pivot points at the back
2.1 - Hardware for pole mounting (standard)
This accessory is used for installation on pipes of 48 to 115 mm diameter.

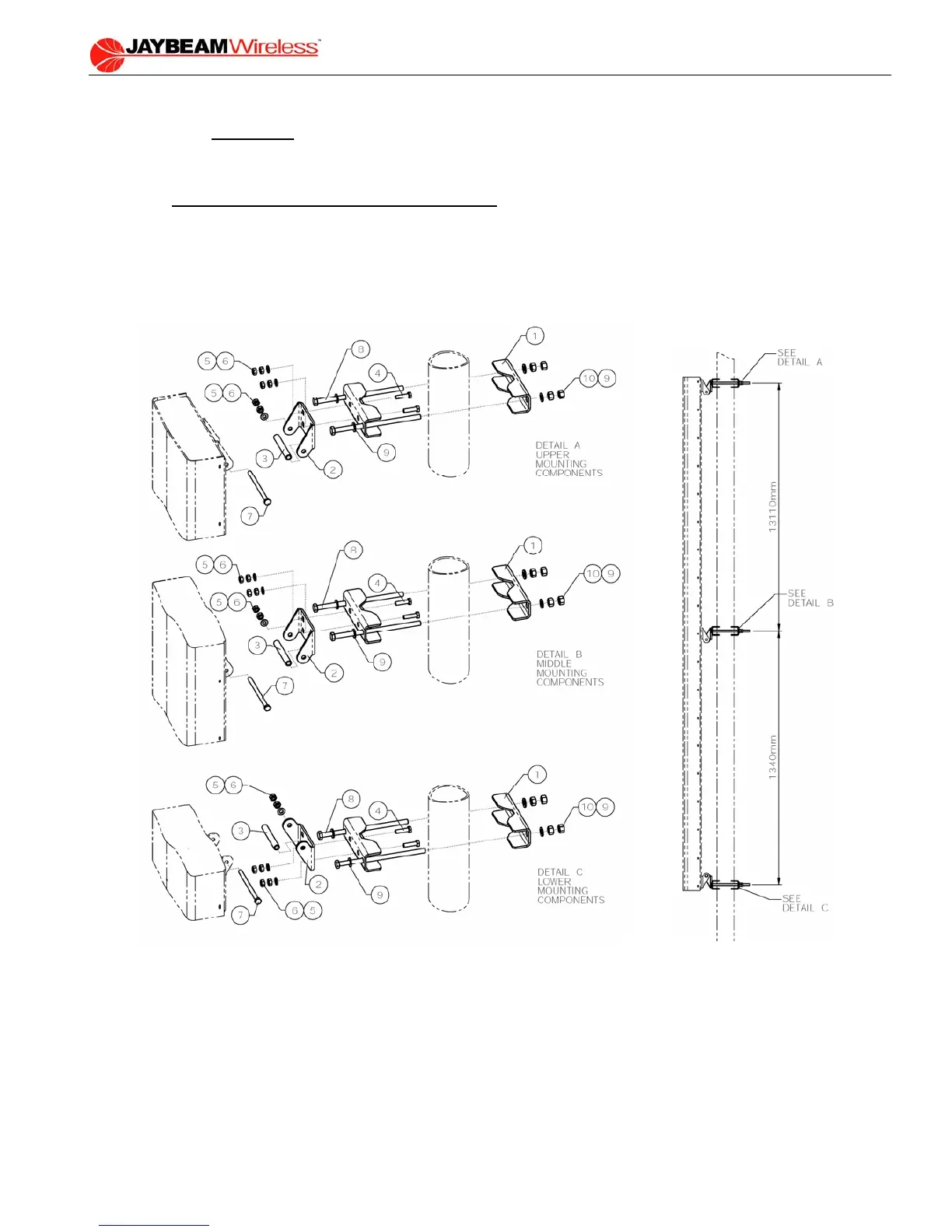

The figures and part list below describe the kit and how to assemble it on the antenna. The middle
components do not apply to antenna with only pivots at top and bottom (two mounting points).
The accessory parts list is given next page.
