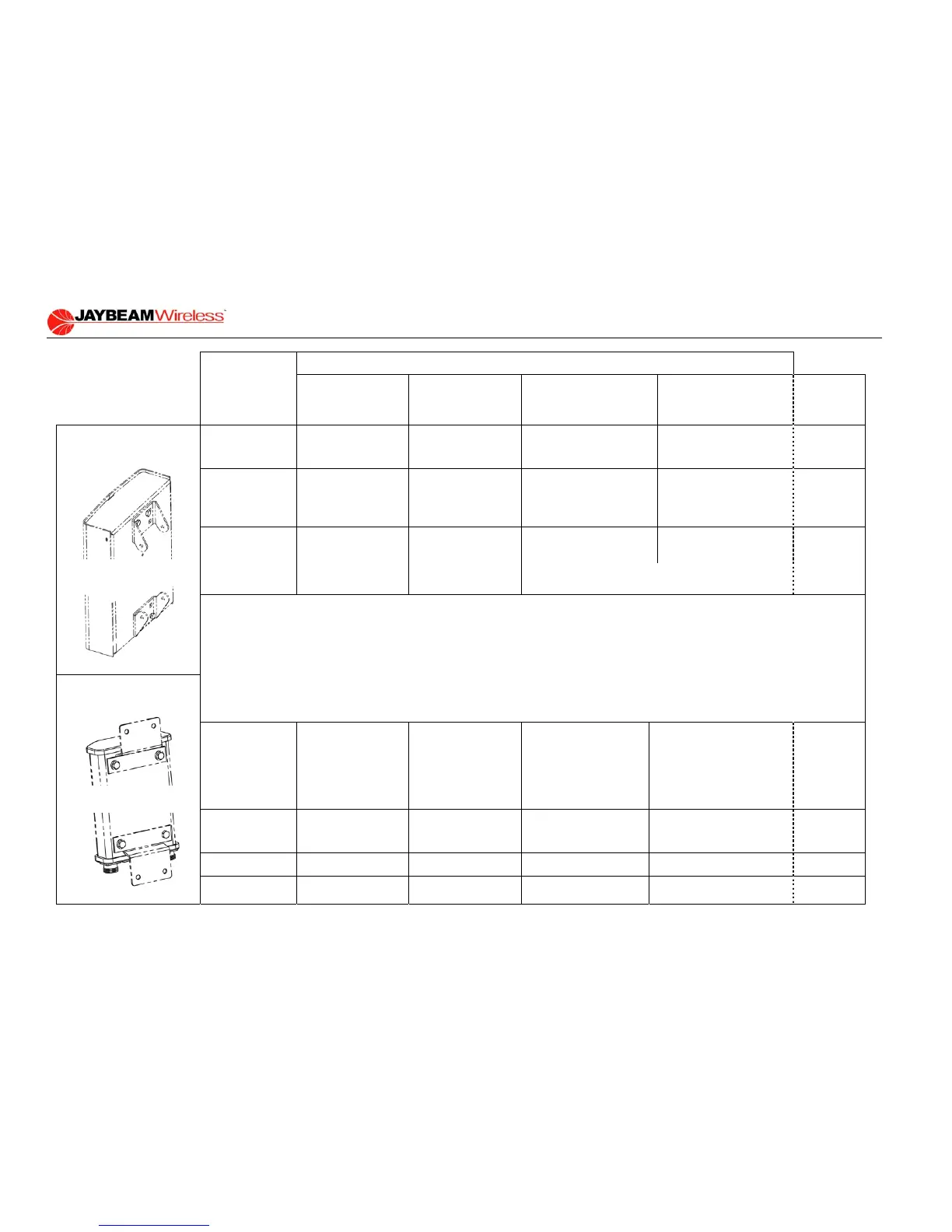

Installation Guide for 3G Antennas
Accessory part number
Antenna
type
Pole brackets
48-115 mm
(Note 0)
Pole brackets
70-150 mm
Wall brackets
with azimuth pan
Mechanical tilt
(Note 1)
Tilt label
mark
(Note 2)
5165100
5157120
5232100
0900181/00 0900182/00 0900183/00 0900188/00
G
5163100
5163110
5231100
5264100
0900181/00 0900182/00 0900183/00 0900184/00
B
0900395/00 (Note 4)
pan only, no tilt
0900394/00 (Note 5)
pole only
5160100
5160110
5265101
(Note 3)
0900393/00 0900501/00
0900533
(Note 6)
pan and tilt on wall
No letter
Mounting by pivot
points at the back
Notes: 0 - Standard pole brackets.
1 - For all antennas, unless otherwise stated, the mechanical tilt accessory is a kit to be used in conjunction with the pole
or wall brackets ordered separately.
2 - The tilt label on one of the scissor arms is marked with a letter to help distinguish between the kits.
3 - These antennas have a third mounting point at the middle of the back.
4 - Cannot be used together with the mechanical tilt kit 0900394/00. Consider the P/N 0900533/00.
5 - Cannot be used together with the wall brackets 0900395/00. Consider the P/N 0900533/00.
6 - This P/N includes wall mounting brackets to be used instead of P/N 0900395/00.
5162100
5152100
5182100
5157100
5135100
5230100
0900390/00 0900503/00 0900408/00 0900374/00
C
5168100
5121100
5178100
0900390/00 0900503/00 0900408/00 0900474/00
B
5164100
0900390/00 0900503/00 0900408/00 0900415/00
No tilt label
Mounting by plates
at top and bottom
5142100
5146100
0900390/00 0900503/00 0900408/00 0900250/00
