Installation Guide for 3G Antennas

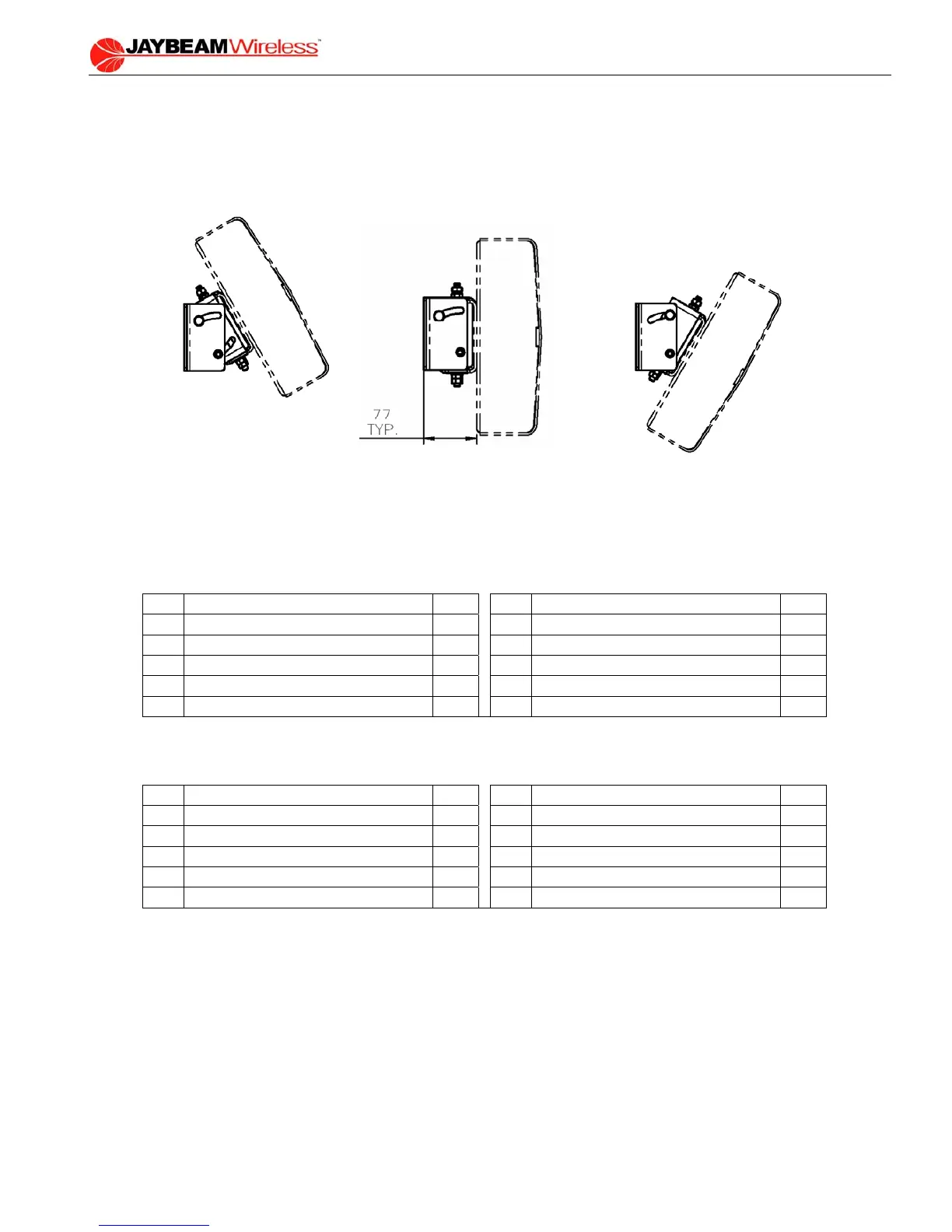

The panning device has the following capabilities:
-30° pan 0° pan +30° pan
The accessory parts list is given below.
2 pivots points antenna - Wall mounting with pan - 0900183/00 part list
item description quantit
1 Wall bracket Right Hand 1 6 Spacing tube 2
2 Pan bracket Right Hand 1 7 M8 plain washer 2
3 Wall bracket Left Hand 1 8 M8 full nut 4
4 Pan bracket Left Hand 1 9 M8 coil spring washer 4
5 M8 x 130 mm hex head bolt 2 10 M8 x 30 mm hex head screw 4
3 pivots points antenna - Wall mounting with pan - 0900395/00 part list
item description quantit
1 Wall bracket Right Hand 2 6 Spacing tube 3
2 Pan bracket Right Hand 2 7 M8 plain washer 3
3 Wall bracket Left Hand 1 8 M8 full nut 6
4 Pan bracket Left Hand 1 9 M8 coil spring washer 6
5 M8 x 130 mm hex head bolt 3 10 M8 x 30 mm hex head screw 6
