Authentics L16
Operation
12

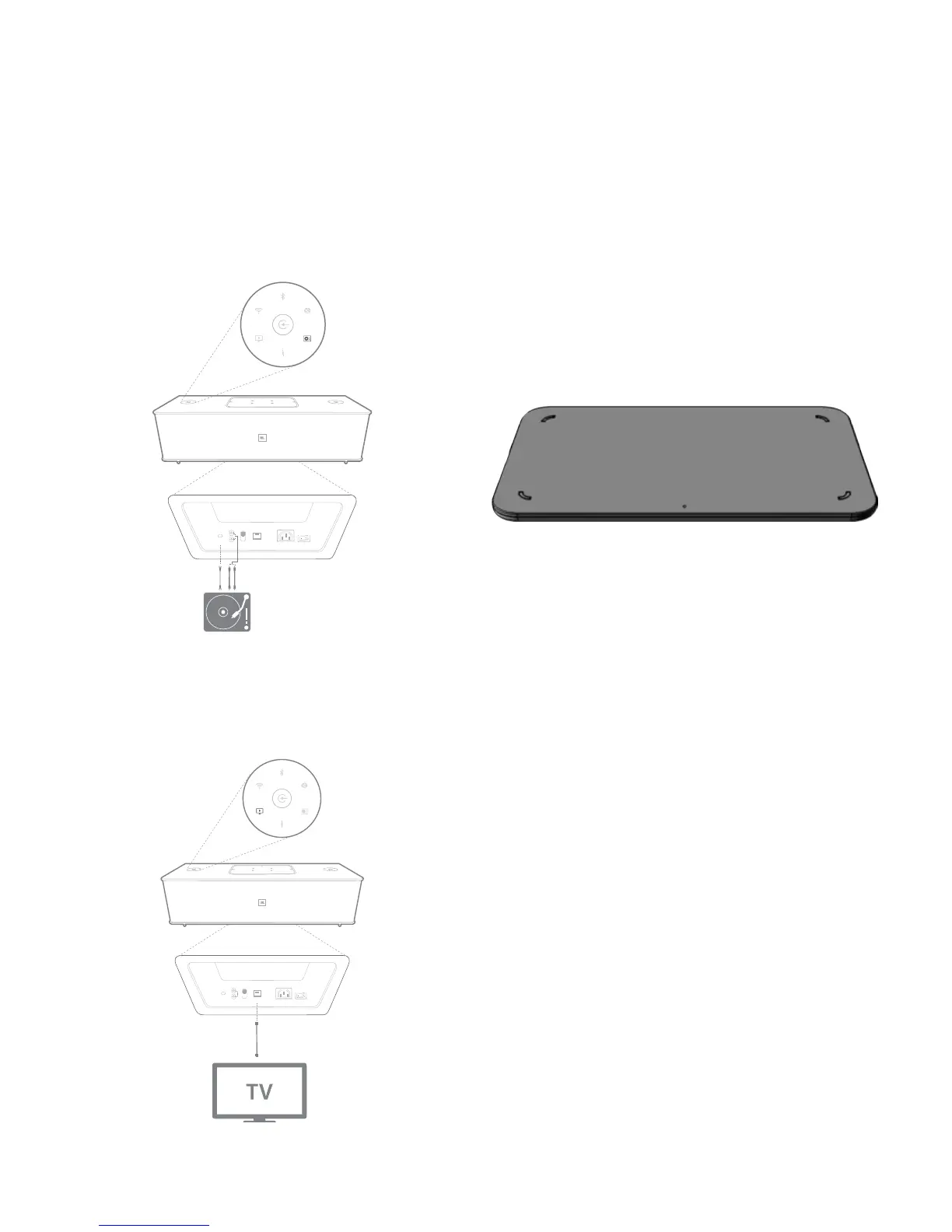

Operating through Phono/RCA Input
The audio system also allows non-digital audio input to play
through an analog Phono/RCA input (stereo audio). You may
connect a turntable with either a moving-magnet or moving-
coil cartridge to this input. Make sure to select the correct
input level (MM, MC, or line level), using the input level selector
switch on the bottom panel.
ON / OFFPOWEROPTICALPHONO INGROUNDING LINE LEVEL
PHONO MC
PHONO MM
Operating through Digital Optical Input
The digital optical input port in the system allows the system
to play raw PCM at a sample rate of 44.1 kHz or 48 kHz. If any
audio signal is available in the digital optical input, the system
detects the signal and starts playing music.
ON / OFFPOWEROPTICALPHONO INGROUNDING LINE LEVEL
PHONO MC
PHONO MM
Web Page Functions
You can access the web page to change Wi-Fi settings or
upgrade the device firmware. You can access the web page
by typing its IP address into your browser on your Mac or
PC. To find the IP address, access your router’s setup page.
For more information, consult the documentation for your
router.
Charging Devices through Qi
The optional JBL Authentics Qi module (sold separately)
allows your JBL Authentics L16 to wirelessly charge your
Qi-compatible mobile devices.
To install the JBL Authentics Qi module,
1. Remove the top panel cover of
the JBL Authentics L16.
2. Plug the JBL Authentics Qi module’s
USB connector into the JBL Authentics
L16’s top USB port labeled iPad.
3. Set the JBL Authentics Qi module into the
top panel cover spot. It will fit securely,
replacing the top panel cover entirely.
4. Place your device on the top of the JBL Authentics
L16. It will automatically start charging.
Many mobile devices including mobile phones, video game
controllers and mobile phone accessories are Qi-compatible.
Consult the retailer or manufacturer’s specifications to
find out whether your mobile device is Qi-compatible.
Check www.jbl.com to see if the Authentics Qi module is
available in your region.
