Authentics L16
Introduction
4

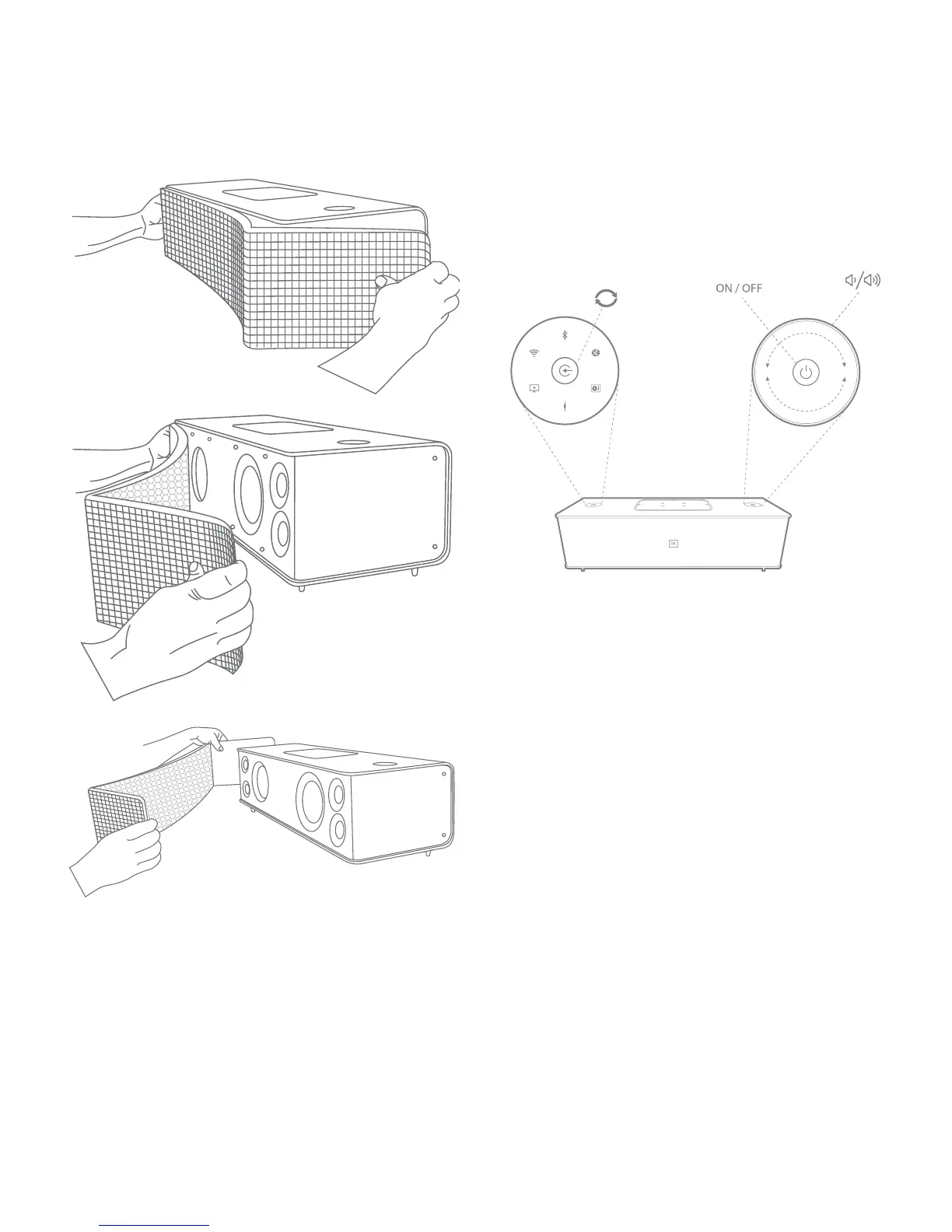

Refer the following illustrations to remove the grille of your
Authentics L16 audio system.
Controls and Connections
The JBL Authentics system controls and connections are
available on the top and bottom panels of the system.
JBL Authentics L16 Top Panel Controls
On the top-right corner of the system, you will be able to locate
the Power button and Volume tuner.
Power button: To switch the system ON, press the Power
button. The power indicator on the system will turn white and
remain on while the system is in Operational mode. To switch
the system into Standby, press the Power button again. To
restore the settings to the factory defaults, press and hold the
Power button for at least 10 seconds.
Volume tuner: Use the Volume tuner to increase/decrease the
volume level of the audio system. Rotate the tuner clockwise
to increase and counterclockwise to decrease the volume
level. The volume level is indicated by 10 white LEDs. Each
LED indicates 10 percent of the maximum volume level.
NOTE: The system volume has 40 steps, with 0 being
mute. The default volume setting is the 12
th
step.
Source button: To switch between the sources, press the
Source button. The system stops or pauses audio input from
the last source and attempts to connect to the new source.
