Introduction
5
Authentics L16

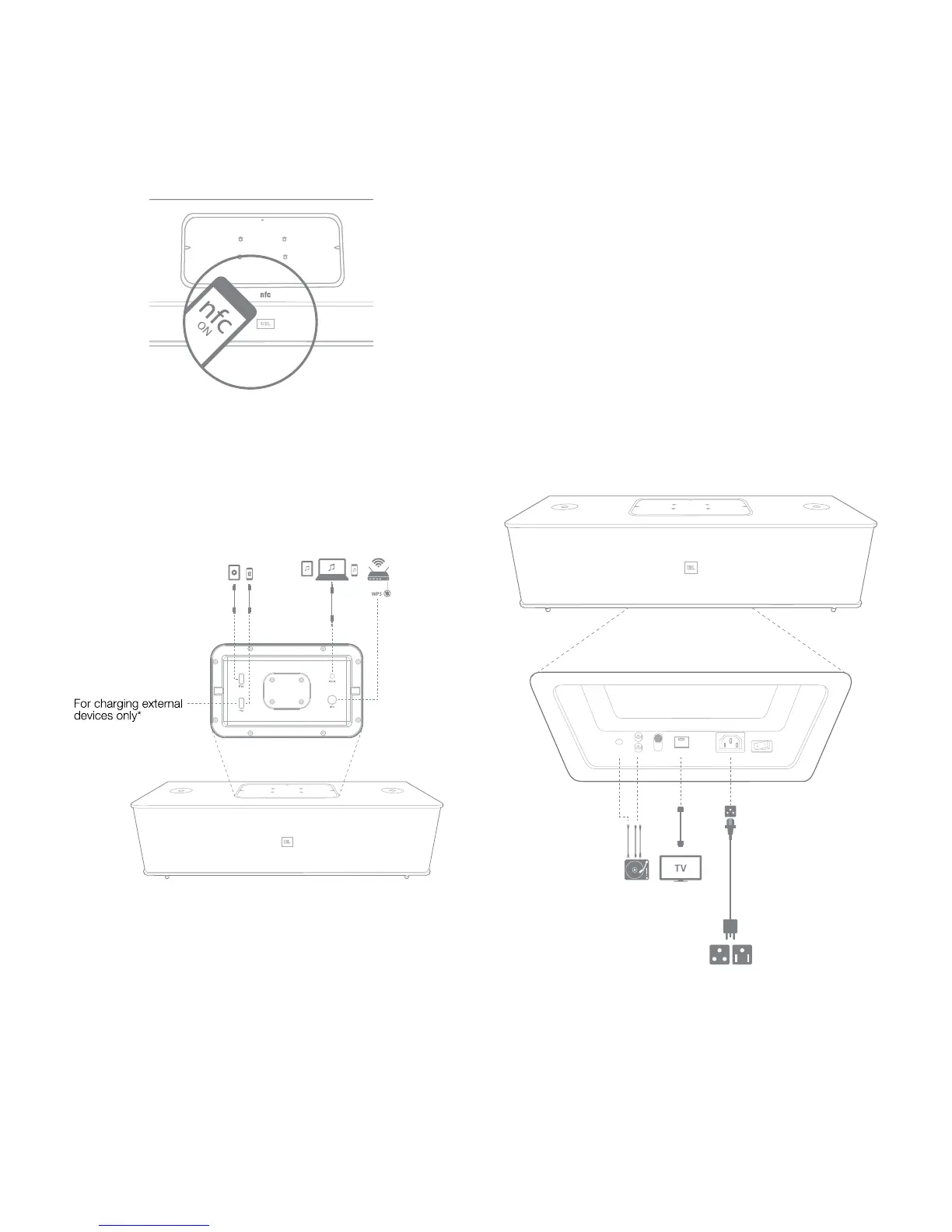

NFC: The system also supports Near Field Communication
(NFC) for Bluetooth auto-pairing. Place the mobile device near
the NFC logo on the top-front of the system to pair or unpair.
The top panel of the JBL Authentics L16 contains the following
controls at the center, covered by a lid. The controls can be
accessed by removing the lid:
• Two USB Ports
• Aux in
• WPS button
USB ports: The USB ports available on the JBL Authentics
L16 audio system are used for App communication and
charging other devices, such as mobile phones or iOS devices.
The system can charge other devices during Operational,
Sleep, and Standby modes. The two USB ports are designed
to function simultaneously. The system will produce a sound
prompt if any device is connected for normal USB charging.
No sound prompt is heard when plugging devices into the
iPad USB port.
Aux in: The audio system includes a 3.5 mm stereo mini
analog auxiliary input. It accepts MP3, DVD, cassettes, or CD
players when plugged in with an appropriate auxiliary cable.
WPS: The Wi-Fi Protected Setup (WPS) button helps your
device establish a secure wireless connection easily to any
WPS-enabled router.
JBL Authentics L16 Bottom Panel Controls
The bottom panel of the JBL Authentics L16 audio system
provides the following controls:
• Grounding
• Phono in
• Line Level/Phono MC/Phono MM
• Optical
• Power
• ON/OFF
ON / OFFPOWEROPTICALPHONO IN LINE LEVEL
PHONO MC
PHONO MM
GROUNDING
Grounding: If you are connecting a turntable to the phono/
RCA input, connect the turntable’s grounding wire to this
terminal.
