JBL EON 210P - Stereo Input Connections

12
STEREO INPUTS
The EON 210P has two stereo inputs and these are used primarily for MP3 or CD players but could be used
with the stereo output of an electronic keyboard, instrument pre-amp or processor, or an electronic drum
machine. The inputs labeled “STEREO IN 5/6” offer the option of using ¼" phone plugs or RCA plugs and this
channel has a volume control. The input labeled “STEREO IN 7/8” is a 3.5 mm stereo input of the type typically
found on personal music players. This input does not have a volume control as personal music players usually
have a “volume control” built into the unit. This is the best way to control the volume of the unit plugged into
this input.

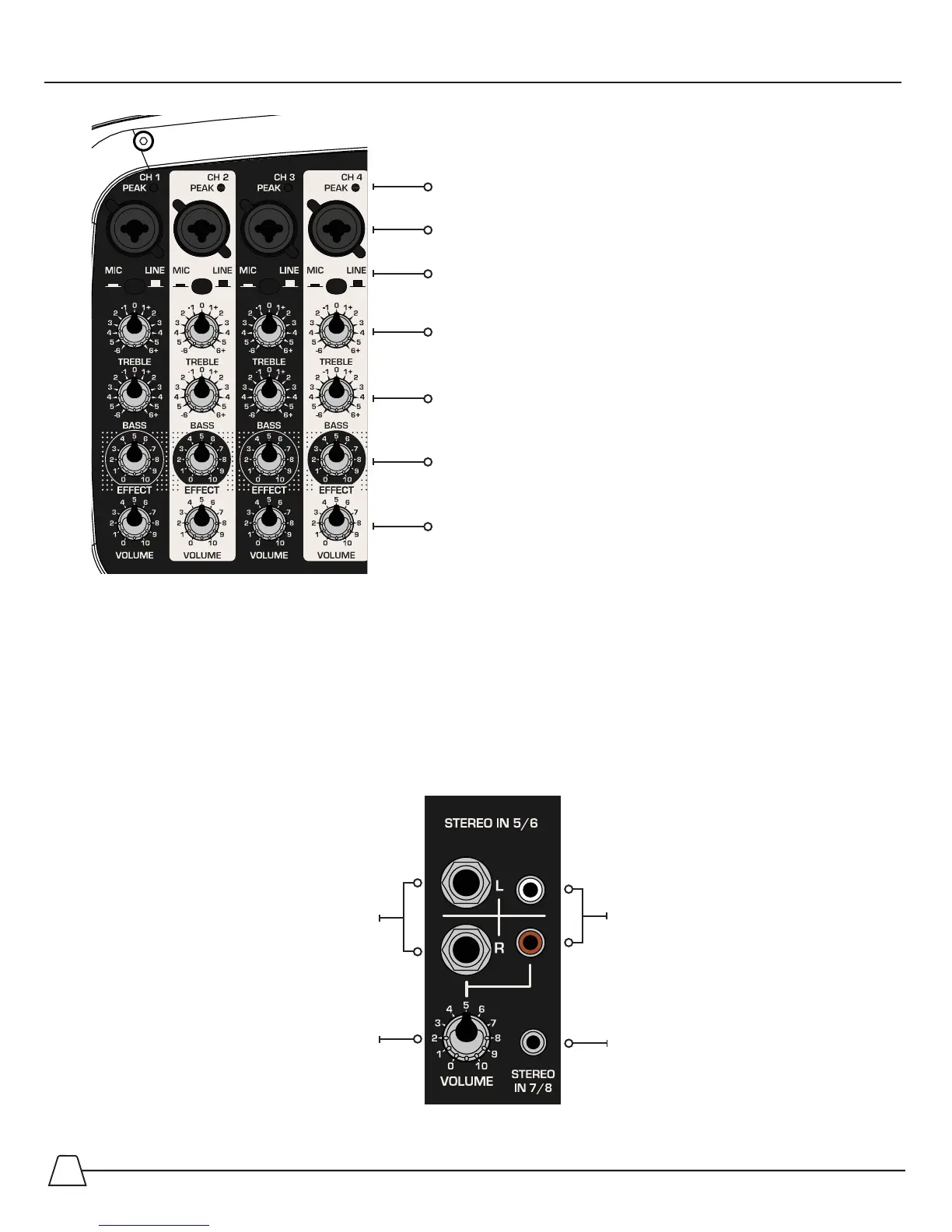

PEAK indicator shows you that the input is either
SUHVHQWJUHHQRULVRYHUORDGHGUHG
Combination 1/4" phone plug and XLR male input
MIC/LINE “SELECTOR” allows you to select between a
PLFURSKRQH;/5LQSXWDQGDOLQH"SKRQHLQSXW
Treble control adjusts the amount of high frequencies
on the particular channel
Bass control adjusts the amount of low fequencies
on the particular channel
Effect control adjusts the amount of effect on the
particular channel
Channel Volume control adjusts the gain on the
particular channel
Stereo in 5/6 RCA inputs
(use with MP3 Player, CD or
DQ\FRQVXPHUW\SHHOHFWURQLFV
3.5 mm input jack for “STEREO IN 7/8”
for use with personal music players
Stereo in 5/6 1/4" Phone inputs (use with
electronic keyboard, instrument pre-amp or
SURFHVVRURUDQHOHFWURQLFGUXPPDFKLQH
Volume Control for “STEREO IN 5/6”
Rev F
E300993 37TY
October 5th, 2010
1 Effect Bypass: This turns all
effects off
2 Plate Reverb: Use with Vocals
and Acoustic Instruments
3 Room Reverb: Use with
Vocals, Acoustic and Electric
Instruments, Percussion,
Piano and General Applications
4 Slapback: Short Echo with
Repeats. For Lead Vocal,
Karaoke, Rockabilly
5 Large Hall Reverb: Use with
Lead Vocals, Brass or
Strings
EFFECT MENU
