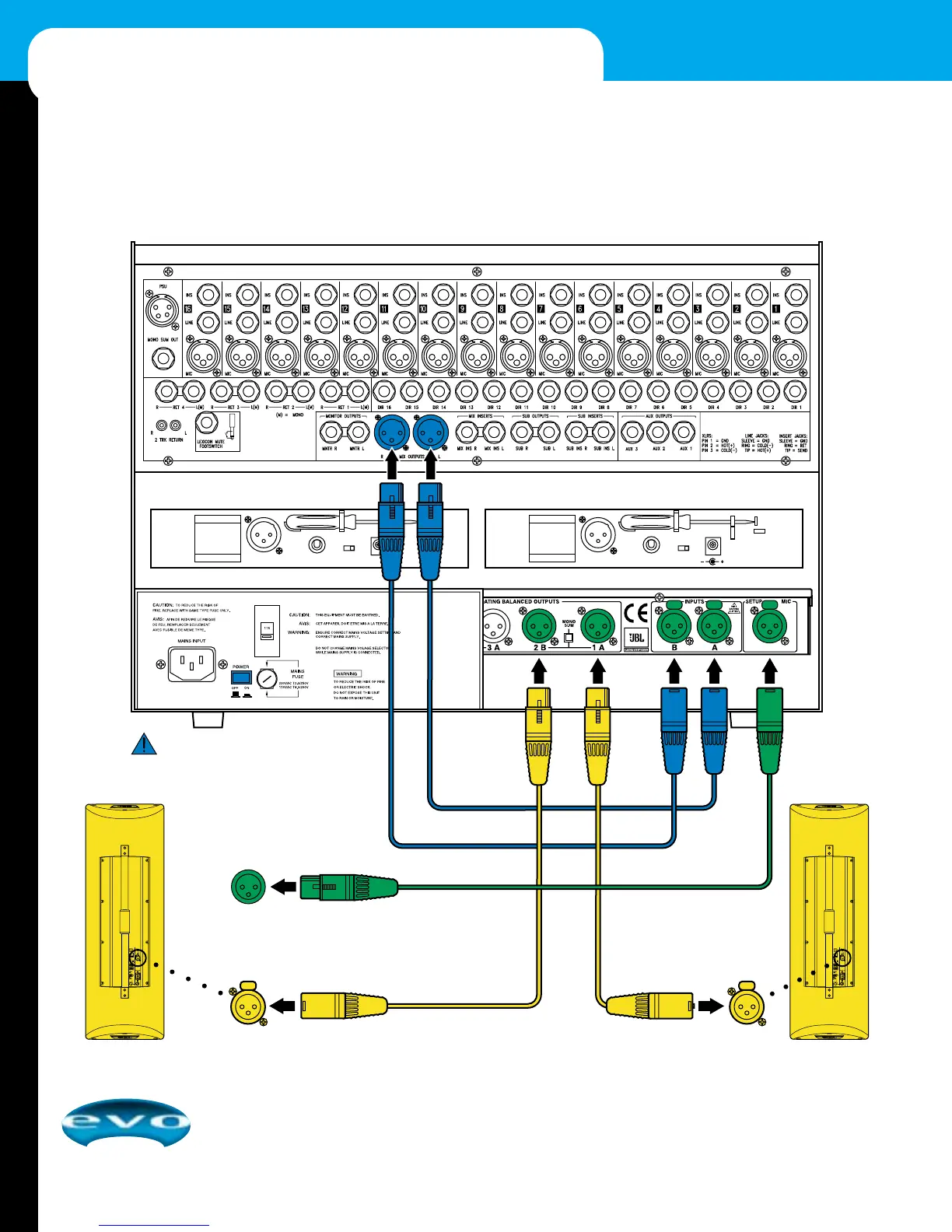

CONNECTING THE NETWORK
6
HOOK-UP/SETUP
BALANCED UNBALANCED
BALANCED
LINE MIC
POWER
AC/DC 12-16 V
20 mA
Set: XXXX
SNR: XXXXX
For IM-free frequencies
refer to manual
BALANCED UNBALANCED
BALANCED
LINE MIC
POWER
AC/DC 12-16 V
20 mA
Set: XXXX
SNR: XXXXX
For IM-free frequencies
refer to manual
EVOi.sys Rear
(NOTE: For clarity, power connections are not shown – see previous page.)
EVOi.324
Input
EVO Measurement
Microphone Output
EVOi.324
Input
EVOi.324
R Rear
EVOi.324
L Rear
RL
RL
2' XLR Signal Cables
(supplied)
100' XLR Signal Cables (supplied)
100' XLR Signal Cable
(supplied)
R L
IMPORTANT: Make sure POWER is off
before making connections.
