JBL EVOi.sys - Page 9

CONNECTING THE MICROPHONES
7
HOOK-UP/SETUP
BALANCED UNBALANCED
BALANCED
LINE MIC
POWER
AC/DC 12-16 V
20 mA
Set: XXXX
SNR: XXXXX
For IM-free frequencies
refer to manual
BALANCED UNBALANCED
BALANCED
LINE MIC
POWER
AC/DC 12-16 V
20 mA
Set: XXXX
SNR: XXXXX
For IM-free frequencies
refer to manual

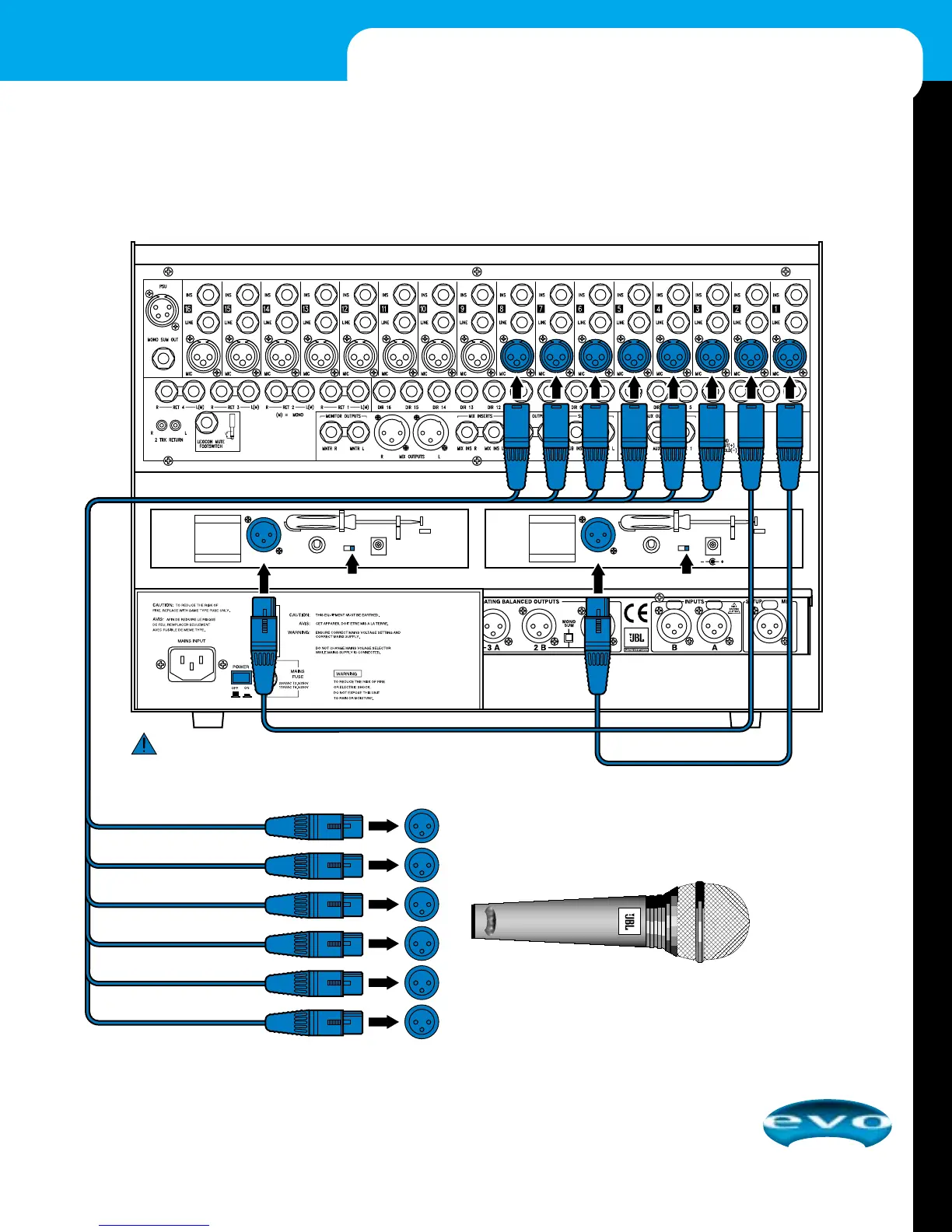

EVOi.sys Rear
(NOTE: For clarity, power and network connections are not shown – see previous pages.)
1
Mic
2' XLR Signal Cables (supplied)
50' XLR Signal Cables
(supplied)
Mic
2
IMPORTANT:
Make sure POWER is off
before making connections.
EVO Dynamic Microphones (supplied)
