Mounting the Black Box
1. Precautions
Choose the mounting location carefully so that the unit will not interfere with the
normal driving functions of the boat.
Avoid installing the unit where it would be subject to high temperature, such as from
direct sunlight or hot air, or where it would be subject to dust, dirt or excessive
vibration. Use only the supplied mounting hardware for a safe and secure installation.

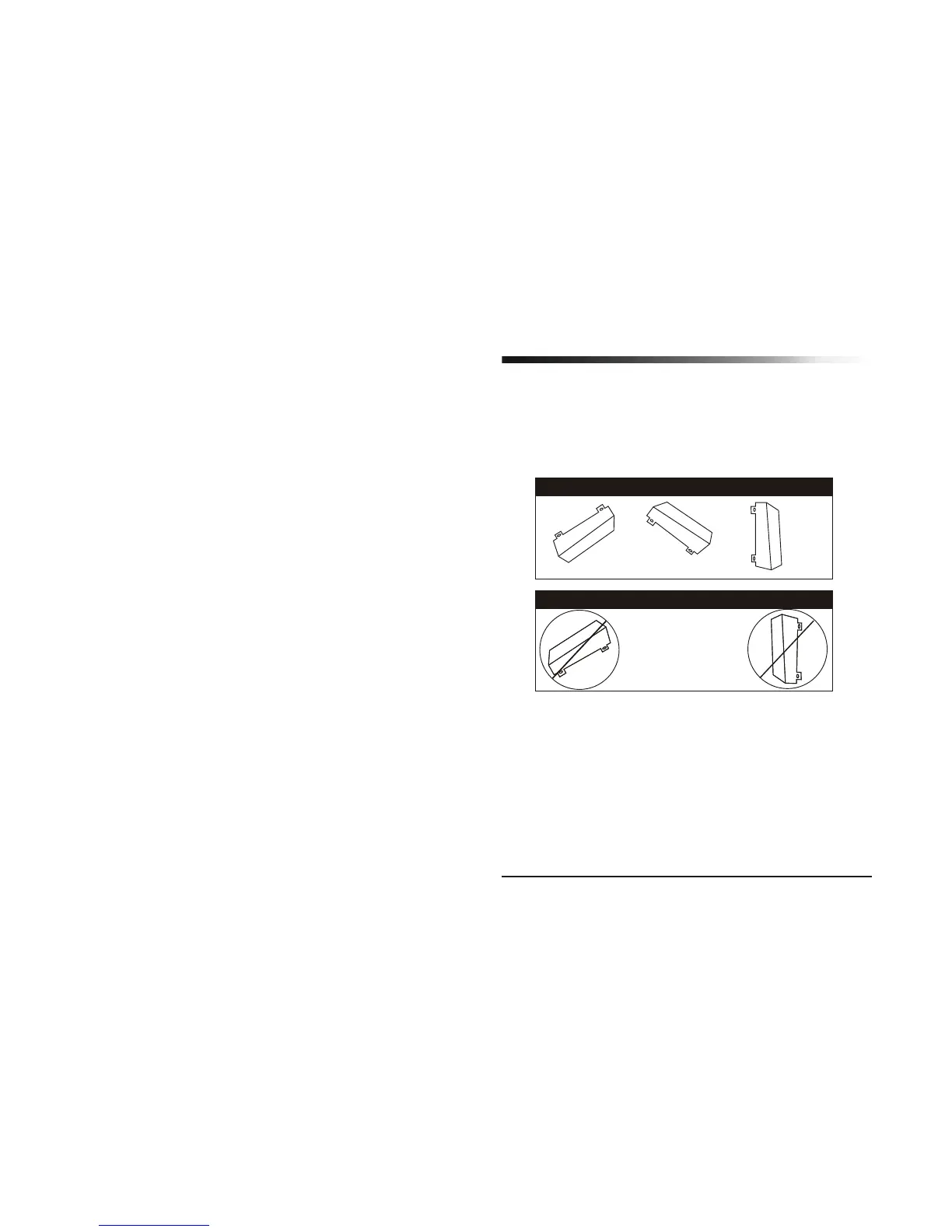

2. Mounting illustrations
JBLJBL
JB
L
JB
L
Do NOT mount black box
in either of the following
positions. This will allow
water to intrude and
will result in damage
to the unit.
Better
(45 facing upward)
Best
(90 facing
upward)
JBL
JB
L
JBL
Correct Mounting Positions
Mounting Examples
Incorrect Mounting Positions
3. Installation Note
Please find enclosed nylon wire tie-downs (wire clamps) for added support. (Use
the wire clamps to hold down the harness, preventing water from running along the
wires and into the unit.)
9
