What is SIRIUS Satellite Radio?
SIRIUS, headquartered in New York, offers over 120 channels of digital quality radio
transmitted across the continental US from three high-tech satellites. Along with offering
a full spectrum of music genres, users can also listen to popular news, entertainment
and sports channels. SIRIUS currently offers 65 music channels, 24 news channels
(including traffic and weather), 7 sports channels (including two dedicated play-by-play
channels) and 24 talk / entertainment channels.
For more information on SIRIUS, visit siriusradio.com.
PLEASE NOTE: This black box can be used with REM45, and MC-19 front panels.
These front panels can also be combined for control from multiple locations.
In order to receive Sirius Satellite Radio broadcast, you must install JBL SIR2.5 as
well as a satellite antenna (both sold separately).
Important notes
Grounding
Make sure that the black wire on the wiring harness is connected to a good ground
point on the boat. If the chassis of the boat is used as a grounding point, make sure
that the surface is scraped clean of paint before attaching the wire to it.
It is preferable to connect the black ground wire directly to negative terminal (-) of
the boat battery.

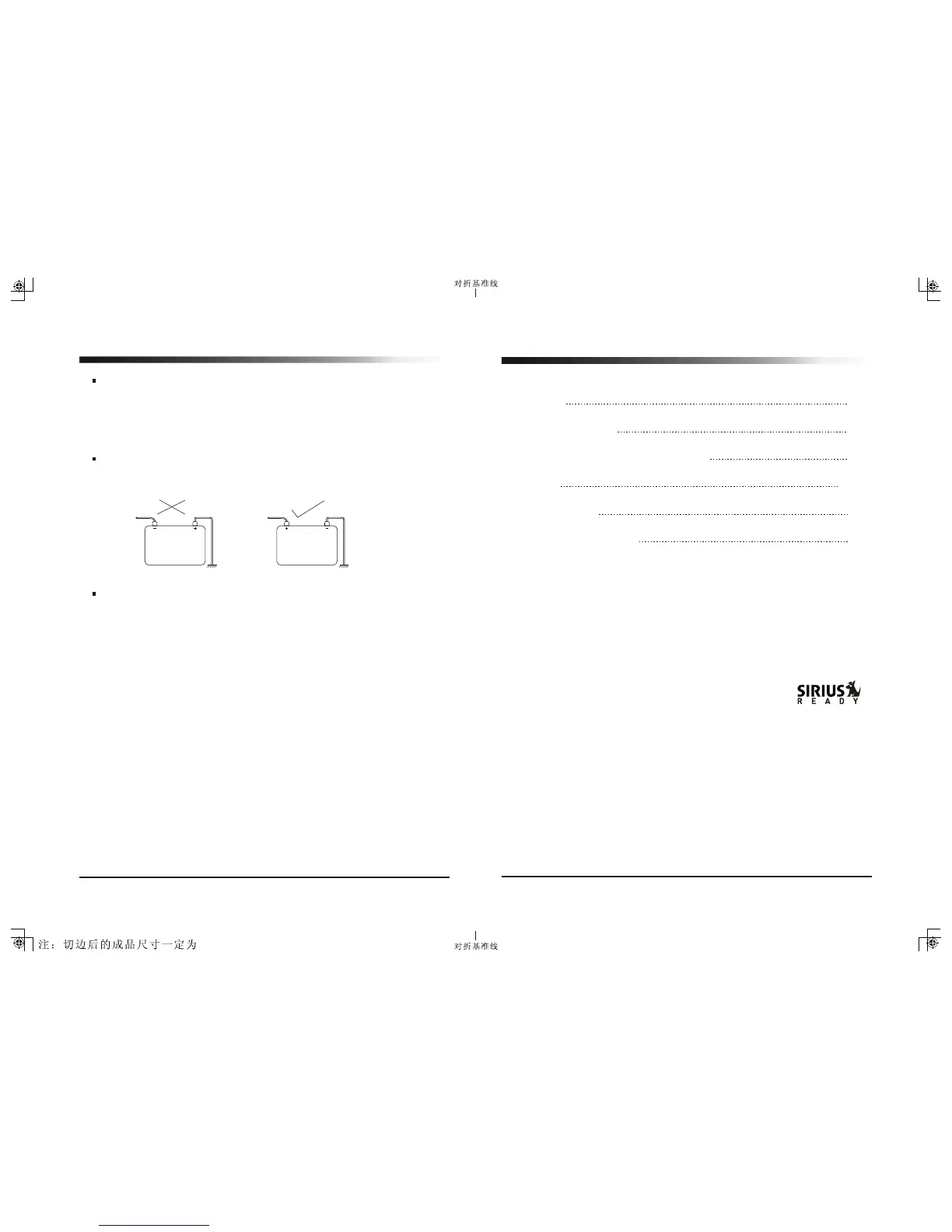

Warning: polarity...
This model is only suitable for use in boats which have a negative ground system,
e. g. : the negative terminal of the boat battery is connected to the chassis.
Connecting the Speakers and Power Cables
Before you wire your system, disconnect your boat battery's positive (+) cable.
This helps prevent damage in case of a short. When you complete the wiring,
reconnect the battery cable and test your marine stereo. When connecting your
marine stereo's black ground wire, be sure to connect the wire to a metal part of
your boat or preferably to the negative (-) terminal of the boat battery.
This radio contains four separate power amplifiers. To prevent possible damage to
these amplifiers please ensure the following:
i) The boat chassis is not used as a loudspeaker ground(-).
ii) Front and rear loudspeaker connecting wires are not joined together.
iii) Any wires not used when completing a two speaker installation are fully insulated.
iv) The memory wire (yellow) is connected to a permanent + 12V supply.
v) The power wire (red) is connected via the ignition switch of the boat.
POSITIVE
CHASSIS
NEGATIVE
CHASSIS
