JBL MBB-3 User Manual

145x210mm
C
D
( SIRIUS control )
( AUX-IN )
RESET
RM
FRONT
ANT
CDC
2

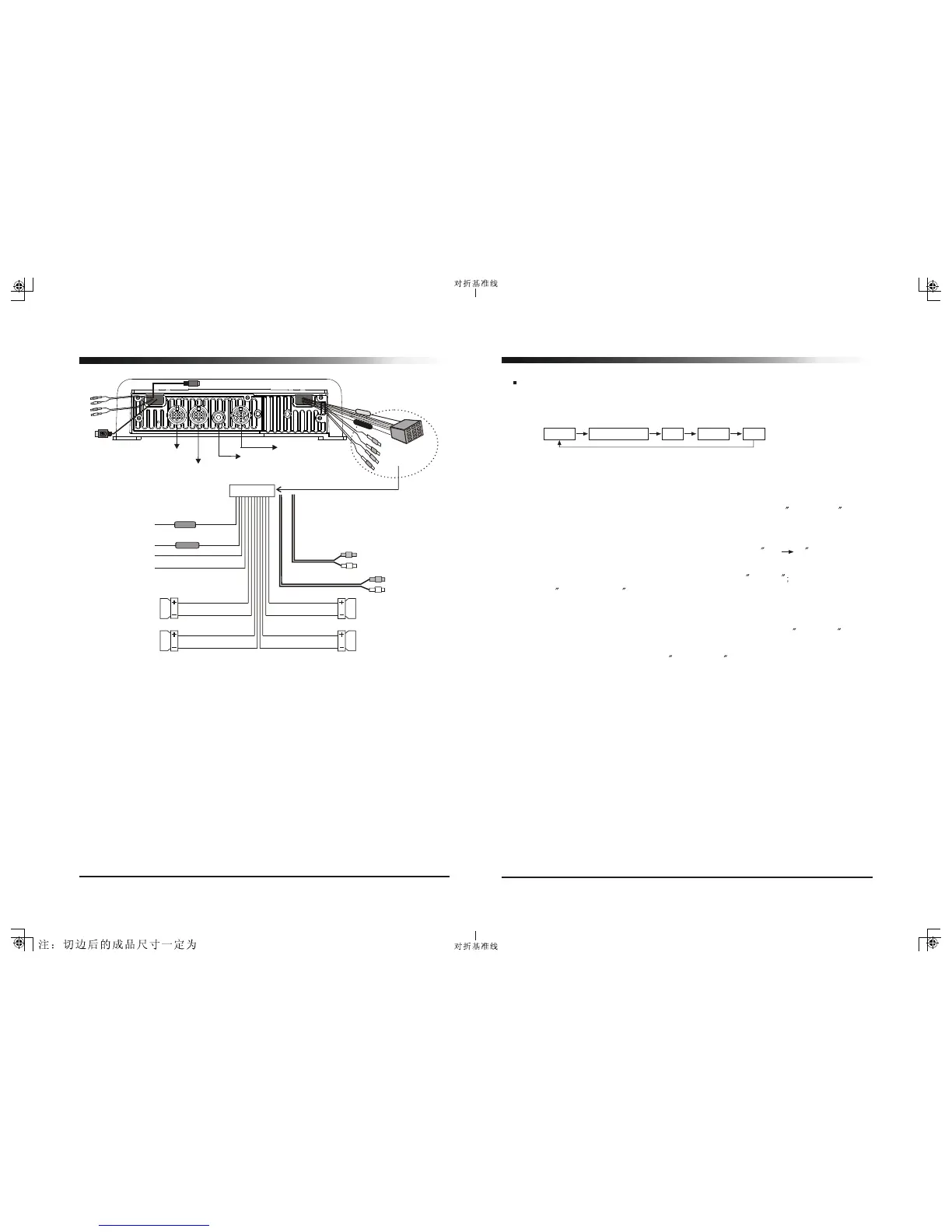

Wiring identification
CONNECTOR
(AUTO ANT)
( BACK-UP B+ )
FUSE
1A
( GROUND )
FUSE
( IGNITION B+ )
Blue
Yellow
Black
Red
Gray
Gray/Black
Violet
Violet/Black
( Front Right )
( Rear Right )
Green
Green/Black
White
White/Black
( Front Left )
( Rear Left )
10A
Red
White
Black
White
A
Red
Gray
Rear Line out
Front Line out
(ANT. socket)
F
E
(CD changer socket)
(Remote Control)
G
B
(Remote Control)
H
( Line out)
I
(USB)
USB & NAND (internal memory) Operation
Controls
1. MODE button (3)
Pressing MODE button repeatedly will display the following:
Note: USB mode defaults first, then you can simply press BAND button to choose
between USB and NAND mode.
2. Operation of Copying from USB to NAND (internal memory)
In USB mode, press and hold SEL button for about 2 seconds until ONE COPY
displays on LCD, use VOL UP/DOWN button to choose ONE or ALL; then press
BAND button to confirm the selection.
- If ALL COPY is selected, the record percent would show as 100 xx (xx means
the file recording percentage), and after copy is finished it will beep 3 times.
- If ONE COPY is selected, record percent will display as REC xx after copy is
finished PERCENTAGE will be displayed on LCD.
3. Operation of Deleting File in NAND
In NAND mode, press and hold SEL button for about 2 seconds until ONE DEL
displays on LCD, use VOL UP/DOWN button to choose ONE or ALL, then press
BAND button to confirm the selection. COMPLETE will be displayed on the LCD
after deleting is complete.
4. Searching Folder and File in USB/NAND
In USB or NAND mode, simply press the A.PS button to enter the folder searching
mode. Use the VOL UP/DOWN buttons to choose the folders in the USB or NAND.
At your desired folder, press BAND button to confirm the selection. Then use the
same method to select the file you desired. Once a file is selected, it will
automatically begin to play.
5. Searching Track in USB/NAND
In USB or NAND mode, press and hold A.PS button for about 2 seconds to switch
into searching mode. Use VOL UP/DOWN buttons to choose tracks in the USB or
NAND. At your desired track, press BAND button to confirm the selection.
RADIO
USB or NAND
CDC
SIRIUS
AUX
7
Installation Notes
Applicable to both 2 and 4-speaker connection:
A. Connections
B. Din cable connection for remote control
C. Din cable connection for SIRIUS control
D. AUX-IN
E. CD changer socket
F. Antenna socket
G. Din cable connection for remote control
H. Line out
I. USB

JBL MBB-3 Specifications

General

Brand	JBL
Model	MBB-3
Category	Marine Audio
Language	English
