30 - 1
Removal and Replacement
Disconnect cables from rear of alternator, remove bolts A, B
and C and withdraw unit from machine.
Replace by reversing the removal sequence. Position the
alternator until belt deflection is approximately 10mm (3/8 in)
before tightening bolts B and C. It may be necessary to
slacken bolt D to allow full movement of alternator. Tighten
bolt A last of all.
Section C Electrics
9803/3280
Section C
30 - 1
Issue 1

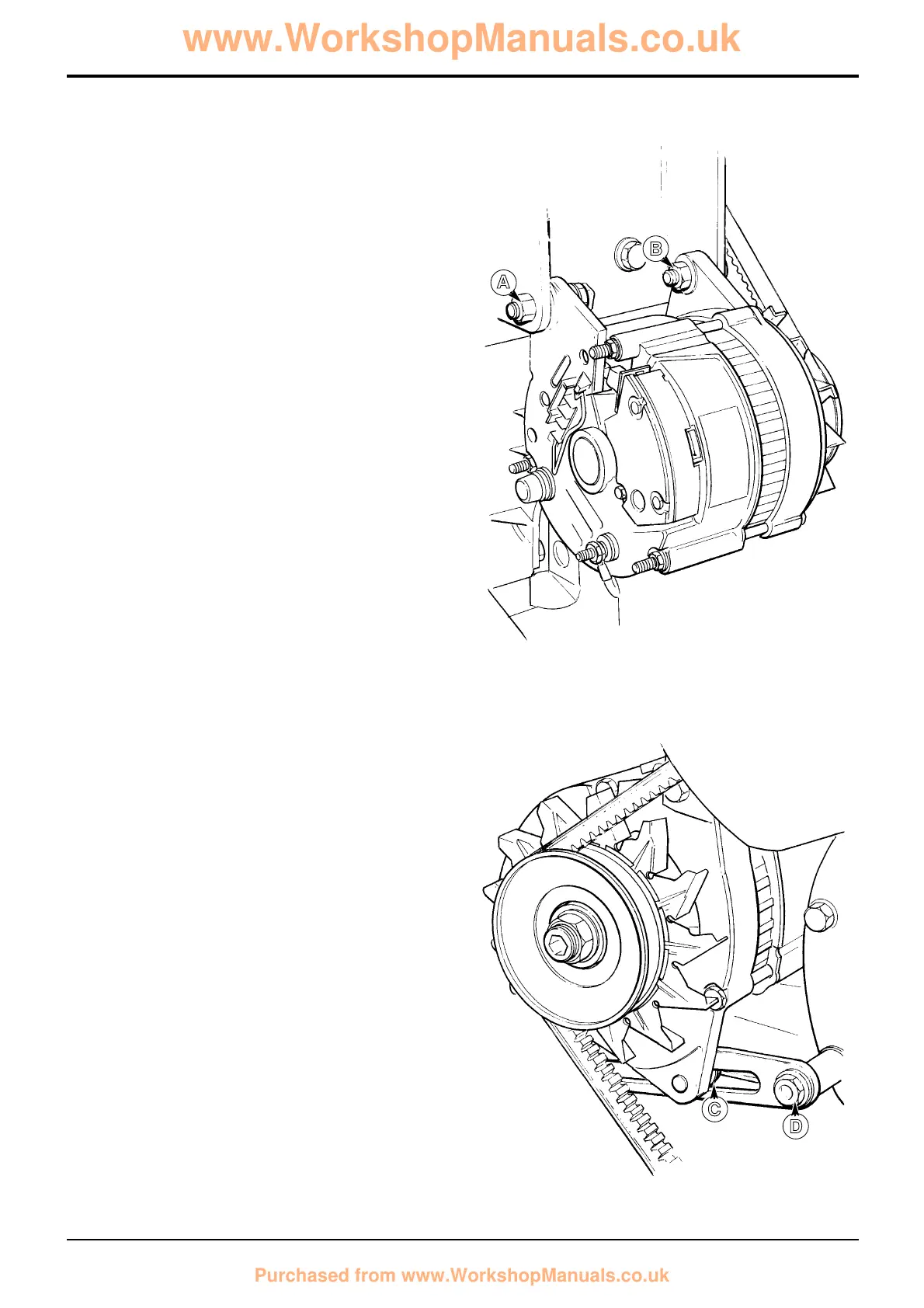

Alternator
S099850B
S099850A
A
B
C
D
