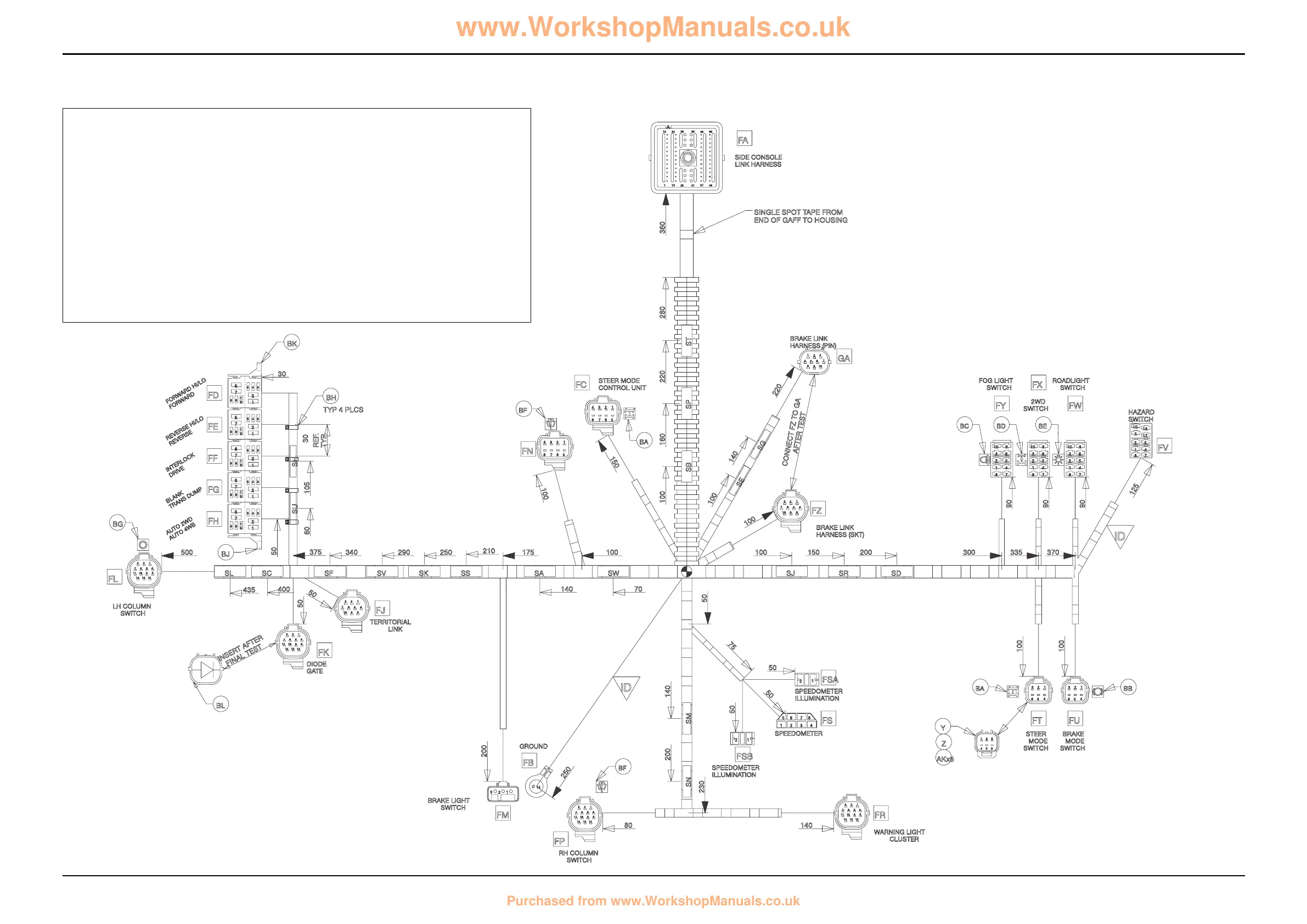

jcb 3CX - Harness Drawing - Front Console, 4 Speed Powershift, Synchro Shuttle, Page 1 of 2 - CAD 721;10940 Issue 1

Electrics
Harness Data
Section C Section C
9803/3280 Issue 2*
151 - 1
151 - 1
721/10940_1
Key to Connectors:
FA Bulkhead Plug
FB Front Cab Earth
FC Steer Mode Unit
FD Forward Relay
Forward H.L
FE Reverse Relay
Reverse H/L
FF Drive Relay
Interlock Relay
FG Transmission Dump
Blank
FH 4WS
Auto 2WD
FJ Link
FK Diodes
FL Column Switch - Powershift
FM Footbrake Switch
FN Wiper Motor
FP Column Switch - RH
FR Front Warning Lights
FS Speedometer
FSA Speedometer Illumination
FSB Speedometer Illumination
FT Steer Mode Switch
FU Brake Mode Switch
FV Hazard switch
FW Main Lights
FX 2/4WD Select
FY Fog Light Switch
FZ Brake Link Socket
GA Brake Link Pin
