Section F Transmission
9803/3280
Section F
18 - 5
Issue 1
Basic Operation
Powershift Gearbox
Drivepaths - 6 Speed
1F
1st GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
X ‘6 Speed’ Xs
Z Layshaft Zs
S 2/4 Wheel Drive Ss
2F
2nd GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
T Forward Low Ts
Z Layshaft Zs
S 2/4 Wheel Drive Ss
3F
3rd GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
U Forward High Us
Z Layshaft Zs
S 2/4 Wheel Drive Ss
4F
4th GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
X ‘6 Speed’ Xs
Y Mainshaft Ys
S 2/4 Wheel Drive Ss
5F
5th GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
T Forward Low Ts
Y Mainshaft Ys
S 2/4 Wheel Drive Ss
6F
6th GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
U Forward High Us
Y Mainshaft Ys
S 2/4 Wheel Drive Ss

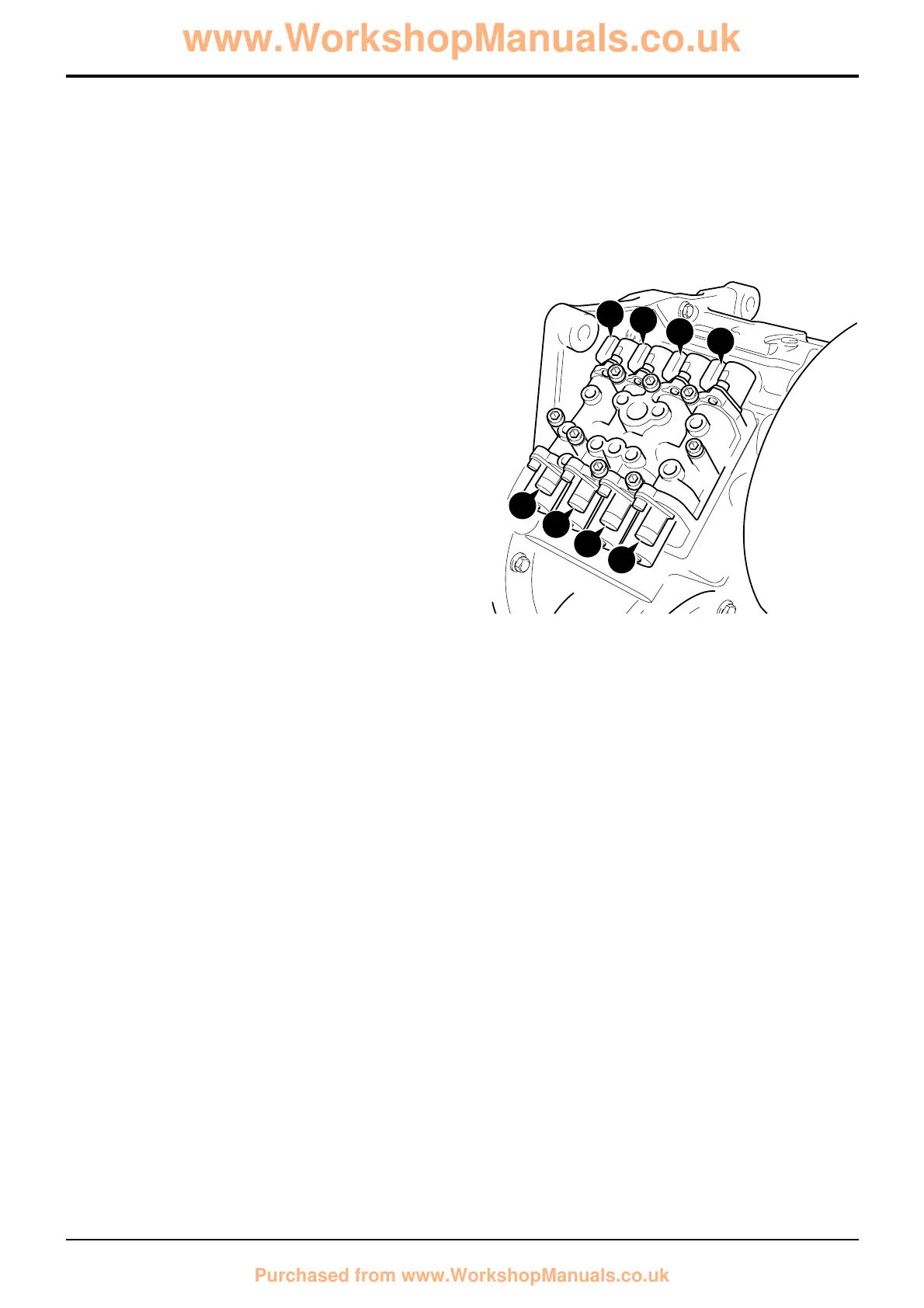

Ss
Zs
Xs
Ys
Ts
Ws
Vs
Us
