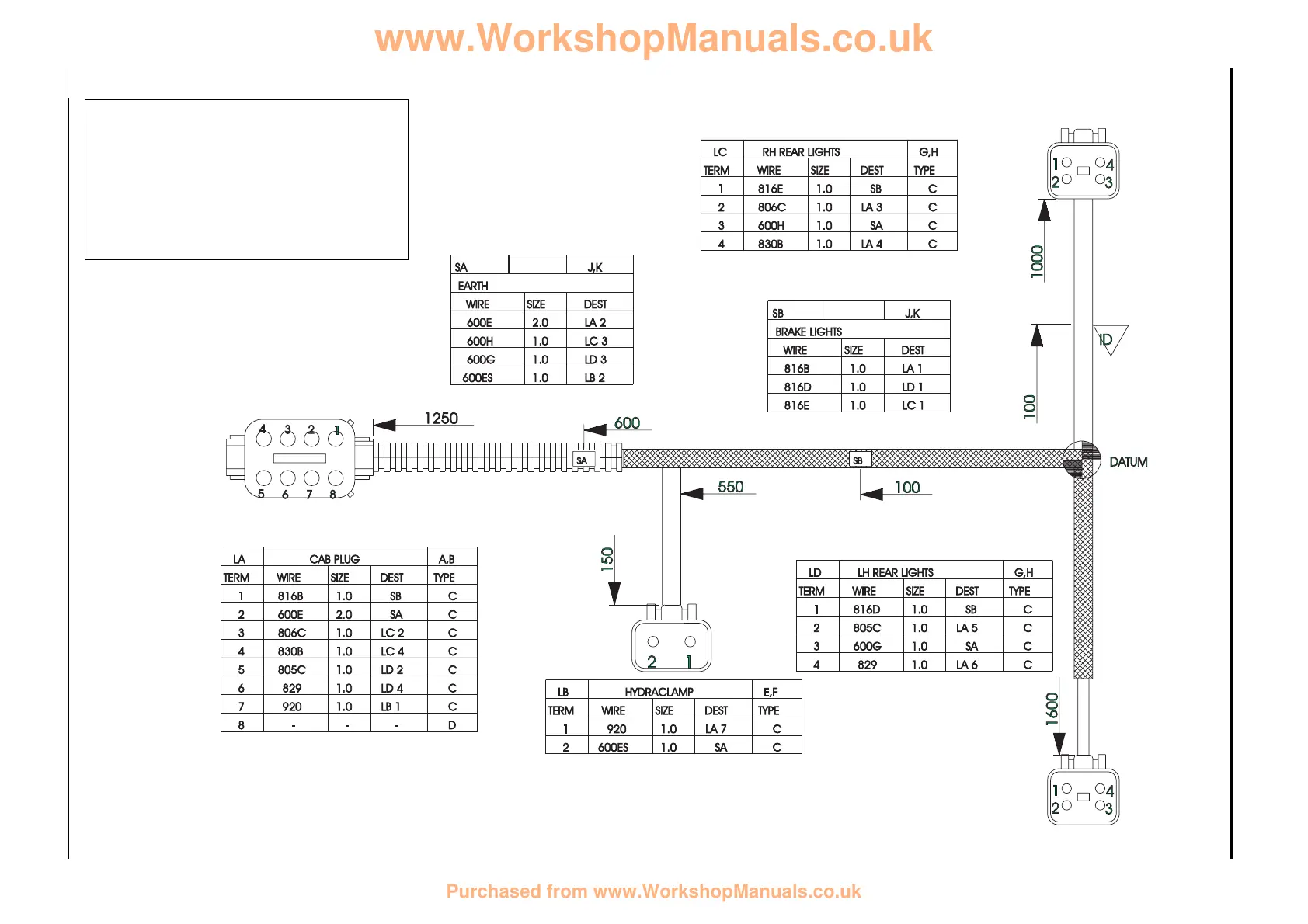

Harness Drawing - Rear Lights / Hydraclamp - Sideshift, page 1 of 1 - CAD 721/10944 Issue 1
721/19044
Key to Connectors:
LA
Cab Plug
LB
Hydraclamp
LC
RH Rear Lights
LD
LH Rear Lights
SA
Earth
SB
Brake Lights
165 - 3
Section C
Electrics
9803/3280
Section C
165 - 3
Issue 2*
Harness Data
*
www.WorkshopManuals.co.uk
