145 - 2
Earth Points
Introduction
The illustartion opposite shows the machine electrical earth
point locations. This can be useful when tracing electrical
faults, typically when several electrical devices are
malfunctioning.
†

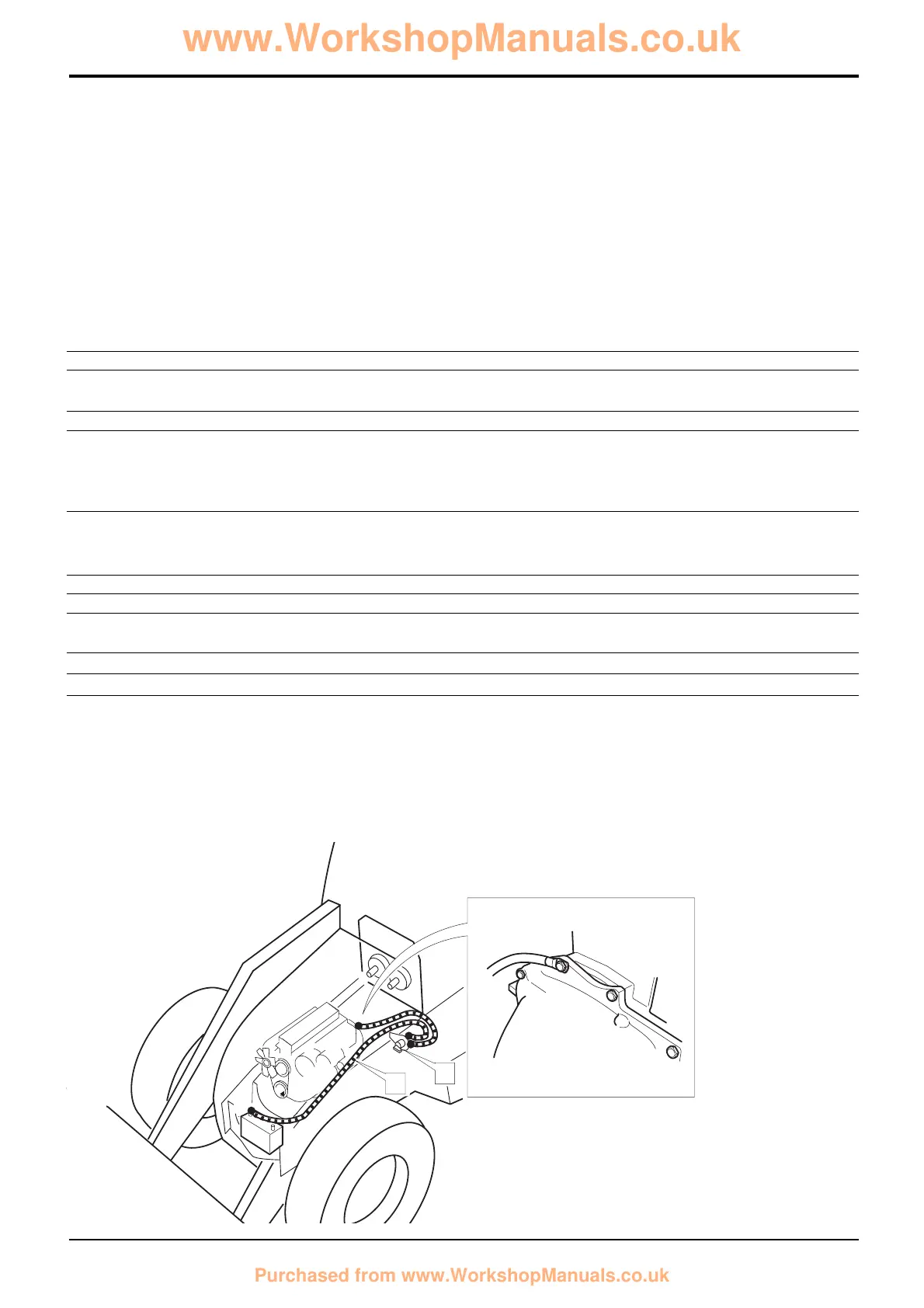

The illustration opposite shows the battery earth cable
connection for machines not fitted with a battery isolator
switch. Machines fitted with a battery isolator P have earth
cable connections as shown below.
Section C Electrics
9803/3280
Section C
145 - 2
Issue 1
Harness Data
Key
Decription Access
A Earth strap, cab. From DR2 to cab frame. Remove loader control console.
C47 Earth, cab roof harness. Remove - inside cab: ‘B’ post covers, roof lining.
Outside cab: lift moulded roof panel.
DR2 Earth, side console harness. Remove side console.
E Earth cable E, cab to engine.
E1 Earth cable E, cab end. Undo one side on the flexible grey moulding at the front on
the cab (outside).
E2 Earth cable E, engine end. Remove engine side panel.
F Earth cable F, engine to battery.
†
F1 Earth cable F, engine end. Remove engine side panel.
F2 Earth cable F, battery end. Remove front grille.
FB1 Earth, front console harness. Remove front console, see Section B, Body and Framework.
G Earth strap, starter motor. Remove engine side panel.
H Earth, work lights harness. Remove - inside cab: ‘B’ post covers, roof lining.
Outside cab: lift moulded roof panel.
MB Earth at starter motor, engine/mainframe harness. Remove engine side panel.
NJ Earth at battery, engine/mainframe harness. Remove front grille.
